Hayward SPX1089K weir assembly for the SP1089 pool skimmerHayward Weir Assembly (SP1089), SPX1089K In stock$3799
Hayward SPX1089K weir assembly for the SP1089 pool skimmer
Shop all Hayward

Hayward Weir Assembly (SP1089), SPX1089K

Ask a questionMPN SPX1089K
$3799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Factory weir assembly SPX1089K.
  • For the SP1089 skimmer Matched to the SP1089 above ground skimmer.
  • Sold as an assembly Comes as the complete weir rather than the door alone.
  • Restores surface skimming The weir is what concentrates suction at the water line so leaves get pulled in.
  • Stops debris blowback A missing weir lets collected debris drift back out of the throat when the pump stops.
  • Plastic construction Molded plastic, as fitted originally.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Weir Assembly (SP1089), SPX1089K, SKU HAY-251-6875. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Weir Assembly (SP1089), SPX1089K
Hayward

Weir Assembly (SP1089), SPX1089K

$3799
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA
Hayward

OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA

$19799
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX1071K skimmer weir assembly with spring loaded pins and foam float Hayward Skimmer Weir Assembly, SPX1071K$3499 Hayward SPX1070KHR SP1070 skimmer weir assembly with stop pad Hayward SP1070 Weir Assembly with Stop Pad, SPX1070KHR$3999 Hayward SPX1099K weir assembly for SP1099 series front access skimmers Hayward SP1099 Series Weir Assembly, SPX1099K$3399 Hayward SPX1094K weir assembly for the SP1094 skimmer Hayward Weir Assembly SP1094, SPX1094K$2999 Hayward SPX1082K skimmer weir flap door, 7-3/4 in. wide Hayward Pool Skimmer Weir Flap Door 7-3/4 in., SPX1082K$3099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 513027 Skim-Clean skimmer weir assembly with hinge and foam Pentair Skim-Clean Skimmer Weir Assembly, 513027$3299 Waterway 550-9950 white weir door assembly for Renegade pool skimmers Waterway Weir Door Assembly, White, 550-9950$2199 Hayward SPX1091K1 weir door for the SP1091 skimmer, front view Hayward SPX1091K1 Weir Door for SP1091 Skimmer$2899 Hayward SPX1084RADGR round collar and cover assembly, dark gray Hayward Round Collar and Cover Assembly for Automatic Pool Skimmers, Dark Gray, SPX1084RADGR$4999
Hayward 005702300002 Paraskim skimmer weir door, gray Hayward Paraskim Skimmer Weir Door, Gray, 005702300002$2875 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 Baker Hydro WC624070A replacement skimmer weir door with clips Baker Hydro Replacement Weir Door, WC624070A$4999 SkimPro SP-HP-1080 skimmer basket with vented tower and handle for Hayward 1080 skimmers SkimPro Skimmer Basket with Vented Tower for Hayward® 1080 Skimmers, SP-HP-1080$2499 SkimPro SP-HP replacement skimmer basket with vented tower for Hayward SP1070 series skimmers SkimPro Replacement Skimmer Basket with Vented Tower for Hayward® SP1070 Series Skimmers, SP-HP$3199 Baker Hydro 51B1026 skimmer strainer basket assembly with handle Baker Hydro OEM Strainer Basket Assembly (Includes Basket and Handle), 51B1026$3699 Hayward SPX1070E replacement skimmer basket for SP1070 Skim-Master skimmers Hayward OEM SP1070 Skimmer Basket, SPX1070E$2199 Hayward SPX1082E white square skimmer deck lid cover for SP1080 series skimmers Hayward Square Skimmer Deck Lid Cover, SPX1082E$3099 Pentair 516252Z Bermuda skimmer weir door in white, 8-1/2 in. wide Pentair Bermuda Skimmer Weir Door, 8-1/2 in., 516252Z$2999 Hayward SPX1084P round skimmer extension collar Hayward Round Extension Collar, SPX1084P$4099

Product details

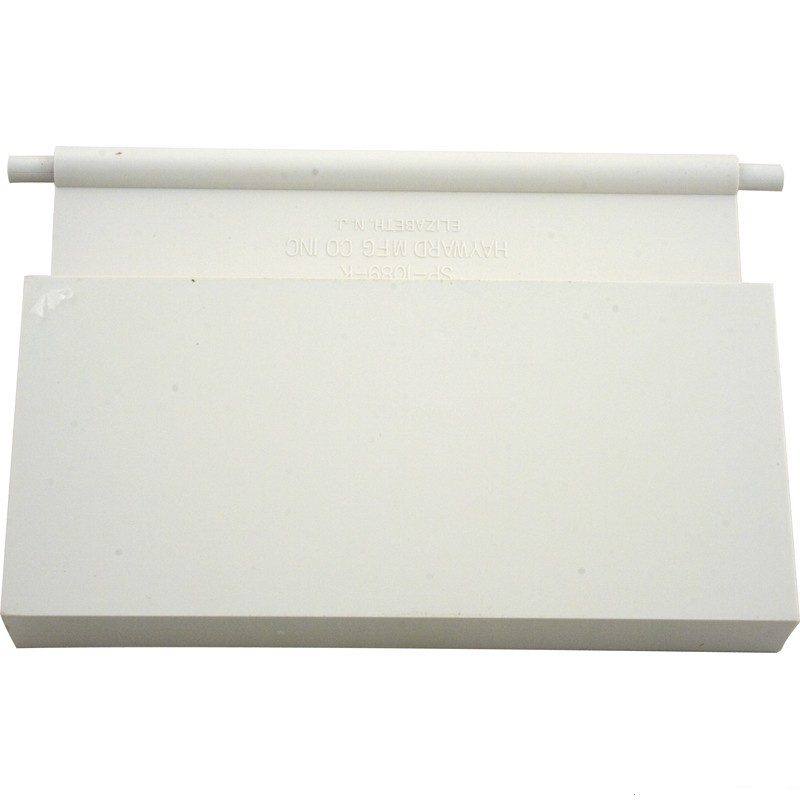

The Hayward SPX1089K is the weir assembly for the SP1089 skimmer. It is the hinged floating door that sits in the skimmer throat.

What the weir is for

The weir does two jobs. While the pump runs it narrows the opening so the water accelerates across it, which is what actually drags floating leaves and film into the basket rather than letting them slide past. When the pump stops, the weir swings closed and keeps everything already in the throat from floating back out into the pool.

When to replace it

Weirs crack at the hinge, warp in the sun, or go missing entirely. If the skimmer is running but leaves keep sitting on the surface, or the basket empties itself back into the pool every time the pump cycles off, the weir is the part to look at first.

Specifications
Brand Hayward
Manufacturer part number SPX1089K
UPC 610377037358
Type Skimmer part
Component Weir assembly
Fits Hayward SP1089 skimmer
Material Plastic
Shipping weight 0.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which skimmer is this for?
The Hayward SP1089.
Do I really need a weir?
Yes if you want the skimmer to work properly. The weir raises the water speed across a narrow opening at the surface, which is what pulls floating debris in. Without it the pull spreads out and leaves drift past.
Is this just the flap or the whole weir?
It is the weir assembly.
Why does debris come back out when the pump shuts off?
That is the classic symptom of a missing or broken weir. The weir is supposed to swing shut and hold what has been collected in the basket.
Ask your own question
