Hayward Power-Flo Pump Parts

35 products

Work out which Power-Flo you own first. An LX is an SP1580 model, a Power-Flo II an SP1750, SP1775 or SP1780, and a Matrix an SP1591, SP1592 or SP1593. All three take Hayward's SPX1500KA shaft seal, but the Matrix has its own SPX5500 lid, basket, strainer housing and O-rings. Hayward's parts lists give no impeller number for these pumps and say to match the one on the original, so read it off the old impeller before ordering.

Which Power-Flo do you have?

The LX models are SP1580, SP1580X15, SW1585X20, SW1585X25 and EP1550LX; the Power-Flo II is SP1750, SP1775 or SP1780. Hayward prints no impeller number: match the one on the old impeller.

Hayward Power-Flo LX and Power-Flo II exploded parts diagram with numbered keys1234567891011121314151617
Numbers are the maker's own.

Housing bolt, No. 10-24Hayward SPX1500N2

Hayward SPX1500N2 is not sold on Active yet.

Housing coverHayward SPX1500B, SPX1580BP, SPX1705B

Hayward SPX1500B is not sold on Active yet.

Housing o-ringHayward SPX1580Z1

Hayward Genuine OEM PowerFlo LX Pump Housing O-Ring, SPX1580Z1

Hayward OEM

$1999 In stock

Housing gasketHayward SPX1500H

Hayward Housing Gasket Power-Flo | SPX1500H

Hayward OEM

$399 In stock

Seal assemblyHayward SPX1500KA

Hayward Seal Assembly for Power-Flo Matrix Pool Pump, SPX1500KA

Hayward OEM

$4399 In stock

ImpellerHayward SPX1500L, SPX1500LH, SPX1580CH, SPX1525CH

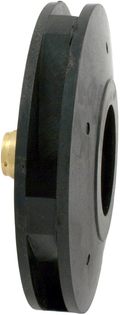

Hayward Genuine 1 HP Power-Flo Impeller Assembly, SPX1500L

Hayward OEMMatch the number on your old impeller

$4599 In stock
Hayward 1 HP PowerFlo LX Pump High Performance Impeller, SPX1500LH

Hayward OEMMatch the number on your old impeller

$4799 In stock
Hayward Hi Performance Impeller, 1.5 HP (SP1520UN LX Only), SPX1580CH

Hayward OEMMatch the number on your old impeller

$5399 In stock
Hayward Hi Performance Impeller, 2.0HP (SP1520UN LX Only), SPX1525CH

Hayward OEMMatch the number on your old impeller

$5599 In stock

Pump housingHayward SPX1500AA, SPX1580AAP, SPX1705AA

Hayward SPX1500AA is not sold on Active yet.

Housing nut, No. 10-24Hayward SPX1500Y2

Hayward SPX1500Y2 is not sold on Active yet.

MotorHayward SPX1540Z1E, SPX1500Z1E, SPX1510Z1E, SPX1510Z1XE, SPX1515Z1E, SPX1520Z1ESC, SPX1524Z1ESC

Hayward Power-Flo Motor with Switch 1HP, SPX1510Z1XE

Hayward OEM1 HP

$37299 In stock
Hayward 1.5 HP Motor with Switch for Power-Flo Matrix SP1590, SPX1515Z1E

Hayward OEM1-1/2 HP

$40199 In stock

Strainer housing with basketHayward SPX1500CAP

Hayward Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP

Hayward OEM

$10599 In stock

Check valve assemblyHayward SPX1500RA

Hayward SPX1500RA is not sold on Active yet.

Strainer basketHayward SPX1250RA, SPX1500LX

Hayward SPX1250RA is not sold on Active yet.

Strainer cover o-ringHayward SPX1500P

Hayward O-Ring, Strainer Cover for Power-Flo Pump, SPX1500P

Hayward OEM

$1599 In stock

Strainer cover with o-ringHayward SPX1500D2A

Hayward Cover Strainer Lid with O-Ring, SPX1500D2A

Hayward OEM

$6799 In stock

Complete strainer assemblyHayward SP1516

Hayward Economy ABS Complete Strainer Assembly, SP1516

Hayward OEMOptional on some models

$7399 In stock

Drain plug with gasketHayward SPX1700FG

Hayward Drain Plug with Gasket for Select Hayward Equipment, SPX1700FG

Hayward OEM

$1099 In stock

C-clipHayward SPX1515C

Hayward Strainer Housing C-Clip for Power-Flo Pump, SPX1515C

Hayward OEM

$1799 In stock

Drawing and key numbers from Hayward's Power-Flo series manual ISPFSERIES, page 10 (Rev G drawing; the 2024 Rev H lists the same parts). Generic and kit parts are matched by the maker's part number they replace.

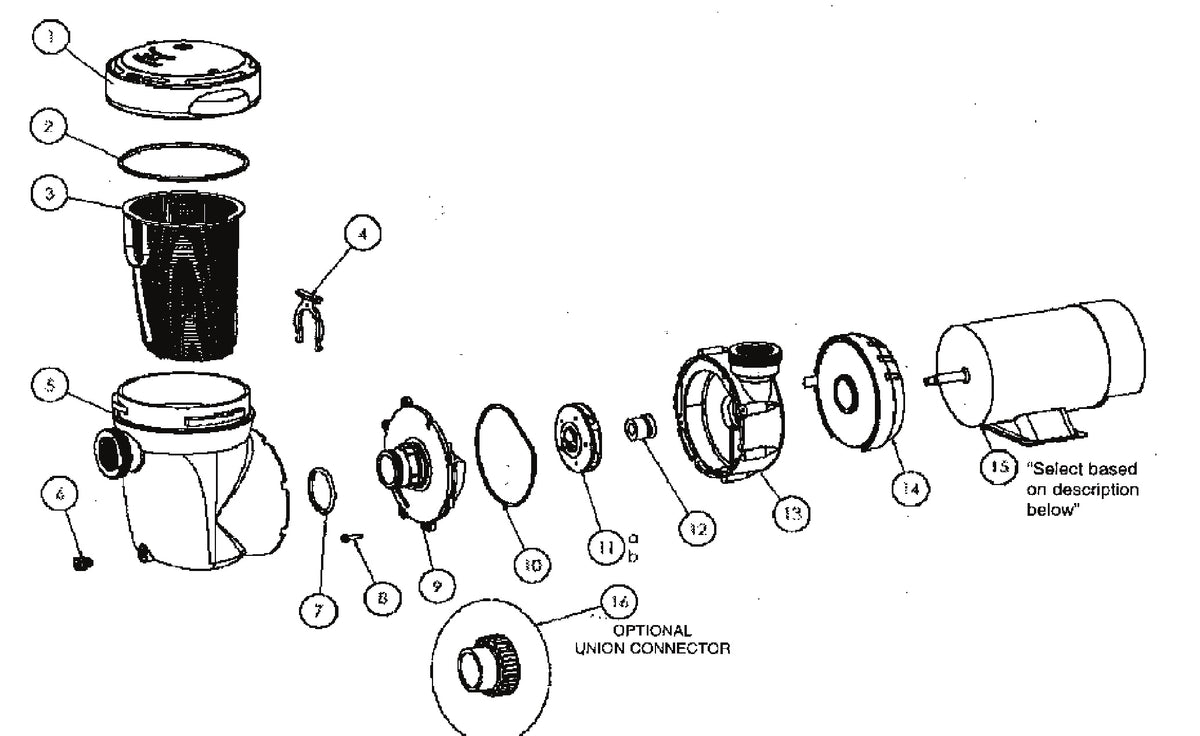

Hayward Power-Flo Matrix exploded parts diagram with numbered keys12345678910111213141516
Numbers are the maker's own.

Strainer cover with lock ring and o-ringHayward SPX5500D

Hayward Power-Flo Matrix Strainer Cover Kit, SPX5500D

Hayward OEM

$10499 In stock

Strainer cover o-ringHayward SPX5500H

Hayward Power-Flo Matrix Strainer Housing O-Ring, SPX5500H

Hayward OEM

$1699 In stock

Strainer basketHayward SPX5500F

Hayward SPX5500F is not sold on Active yet.

Strainer retainer clipHayward SPX5500G

Hayward Strainer Basket C Clip, SPX5500G

Hayward OEM

$1699 In stock

Strainer housingHayward SPX5500C

Hayward PowerFlo Matrix Pump Strainer Housing, SPX5500C

Hayward OEM

$12099 In stock

Drain plug with gasketHayward SPX1700FG

Hayward Drain Plug with Gasket for Select Hayward Equipment, SPX1700FG

Hayward OEM

$1099 In stock

Strainer o-ringHayward SPX5500K

Hayward OEM Power-Flo Matrix Strainer O-Ring, SPX5500K

Hayward OEM

$999 In stock

Screw, #14 x 1/4 pan headHayward SPX0714Z48

Hayward SPX0714Z48 is not sold on Active yet.

Pump coverHayward SPX5500B

Hayward Power-Flo Matrix Pump Diffuser Cover SPX5500B

Hayward OEM

$9899 In stock

Housing o-ringHayward SPX0710XZ5

Hayward Power-Flo Matrix Housing O-Ring, SPX0710XZ5

Hayward OEM

$1999 In stock

ImpellerHayward SPX1500L, SPX1500LH

Hayward Genuine 1 HP Power-Flo Impeller Assembly, SPX1500L

Hayward OEMMatch the number on your old impeller

$4599 In stock
Hayward 1 HP PowerFlo LX Pump High Performance Impeller, SPX1500LH

Hayward OEMMatch the number on your old impeller

$4799 In stock

Shaft seal assemblyHayward SPX1500KA

Hayward Seal Assembly for Power-Flo Matrix Pool Pump, SPX1500KA

Hayward OEM

$4399 In stock

Pump housingHayward SPX5500A

Hayward Pump Housing for Matrix Pump SP1590, SPX5500A

Hayward OEM

$11199 In stock

Shroud assemblyHayward SPX5500E

Hayward Shroud Assembly for Matrix Pump SP1590, SPX5500E

Hayward OEM

$5099 In stock

Motor with switchHayward SPX1510Z1E, SPX1510Z1XE, SPX1515Z1E, SPX1520Z1ESC, SPX1524Z1ESC, SPX1510Z24XE, SPX1515Z2WS

Hayward Power-Flo Motor with Switch 1HP, SPX1510Z1XE

Hayward OEM1 HP single speed

$37299 In stock
Hayward 1.5 HP Motor with Switch for Power-Flo Matrix SP1590, SPX1515Z1E

Hayward OEM1-1/2 HP single speed

$40199 In stock

Union connector assemblyHayward SP1500UNPAK2

Hayward Union Connector, 2 Pack, SP1500UNPAK2

Hayward OEMOptional, two per pump

$2399 In stock

Drawing and key numbers from Hayward's Power-Flo Matrix owner's manual ISSP1591 Rev H, page 11. Generic and kit parts are matched by the maker's part number they replace.

Pump Parts
Pump Motors
Skip to results list

Filters

35 items

Filter

About Hayward Power-Flo Pump Parts

Hayward parts for the Power-Flo LX, Power-Flo II and Power-Flo Matrix: shaft seals, motors with the switch built in, rocker and speed switches, impellers, pump housings and covers, strainer housings, lids and C clips, union connectors, and the O-rings and gaskets that seal them.

Whole pumps are on above ground pool pumps and Hayward pool pumps. Hayward's inground pumps have their own pages for the Super Pump, Super II and TriStar, and every make is on pump parts and motors and pool pump motors.

Two Pool School guides go with these parts. After a new lid O-ring, basket or shaft seal, how to prime a pool pump covers a pump that sits below the water line, as the Power-Flo usually does on an above ground pool. And before ordering a motor for the Power-Flo, motor or whole pump has the tests that tell a failed motor from a jammed impeller.

Questions about Hayward Power-Flo Pump Parts

My Hayward Power-Flo LX will not prime. What should I check?

Its position, first. Hayward says the Power-Flo LX has to be installed below the pool's water line; only the self priming Power-Flo II may sit up to 4 feet above it. Then check that the strainer pot is full and that the lid O-ring, SPX1500P, is clean, seated and greased with Jack's 327. Hayward calls for 1-1/2 inch reinforced hose on the suction side, and a loose hose clamp there lets air in.

Water is dripping from under the motor on my Hayward Power-Flo or Matrix. What part is it?

The shaft seal, SPX1500KA, which Hayward lists for the Power-Flo LX, the Power-Flo II and the Matrix alike. These pumps open from the front: with the hoses off, the strainer slides away once its C clip is lifted, eight screws free the pump cover, and the impeller unscrews to release the spring half of the seal. Hayward says to clean the cover O-ring while it is open and replace it if it is worn.

My Hayward Power-Flo Matrix hums but will not start. Is the motor gone?

Not always. Hayward's Matrix manual gives two causes for a hum without starting: the motor's centrifugal switch stuck open, or a shaft that binds. With the power off, check that the shaft turns freely. Replacement motors come with the switch fitted, SPX1510Z1XE at 1 HP and SPX1515Z1E at 1-1/2 HP, and the Matrix's on and off rocker is sold on its own as SPX1500S8.

Will a Power-Flo LX lid or basket fit my Hayward Matrix pump?

No. Hayward lists separate strainer parts for the Matrix: cover kit SPX5500D with its lock ring and O-ring, basket SPX5500F, strainer housing SPX5500C, C clip SPX5500G and O-rings SPX5500H and SPX5500K. The LX and the Power-Flo II share the other set, clear lid SPX1500D2A, lid O-ring SPX1500P, strainer housing with basket SPX1500CAP and C clip SPX1515C. The drain plug, SPX1700FG, fits all three.

My Hayward Power-Flo runs but hardly pushes any water. Which impeller does it need?

Hayward's lists for the LX, Power-Flo II and Matrix give no single impeller number; they say to go by the part number on the original, so take the old one out and read it. Before that, check the strainer and suction line, which Hayward puts first among the causes of low flow. A plugged or sheared impeller is replaced with a new shaft seal. The high performance impellers here are listed for the SP1520UN LX only.
