Sta-Rite 14971-SM20E12 spider gasket for 2 in. multiport valve, five spokesSta-Rite 2" Valve Spider Gasket for MultiPort Valve, 14971-SM20E12 In stock$5399
Sta-Rite 14971-SM20E12 spider gasket for 2 in. multiport valve, five spokes
Shop all Sta-Rite

Sta-Rite 2" Valve Spider Gasket for MultiPort Valve, 14971-SM20E12

Ask a questionMPN 14971-SM20E12
$5399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Five spoke pattern the 2 in. valve gasket layout, not the smaller 1-1/2 in. pattern.
  • 6-5/8 in. outside diameter measure the old gasket before ordering if you are unsure which valve you have.
  • Stops port to port bypass a flattened spider gasket is why a valve leaks to waste in filter, or filters in backwash.
  • Sta-Rite part 14971-SM20E12 the factory gasket, not a generic cut.
  • Filter valve service part listed under Sta-Rite 2 in. top mount and 1-1/2 in. and 2 in. side mount multiport valve parts.
  • Replace with the o-ring the cover o-ring is a separate part and is worth doing at the same time.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Sta-Rite 2" Valve Spider Gasket for MultiPort Valve, 14971-SM20E12, SKU STA-061-9680. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Sta-Rite 2" Valve Spider Gasket for MultiPort Valve, 14971-SM20E12
Sta-Rite

2" Valve Spider Gasket for MultiPort Valve, 14971-SM20E12

$5399
Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022
Sta-Rite

Pentair Weir Assembly for U-3 Skimmer, 08650-0022

$3899
Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125
Sta-Rite

Face Plate Inlet Eyeball Kit with Screws, 08428-0125

$3499
Pentair U-3 Skimmer Basket with Handle, 08650-0007Z
Sta-Rite

Pentair U-3 Skimmer Basket with Handle, 08650-0007Z

$2199
Sta-Rite Plug and Gasket Assembly for 1-1/2" MultiPort Valve, 14965-0028
Sta-Rite

Plug and Gasket Assembly for 1-1/2" MultiPort Valve, 14965-0028

$6399
Sta-Rite White Adjustable Floor Cover Plate, 08417-0005
Sta-Rite

White Adjustable Floor Cover Plate, 08417-0005

$4099
Pentair Piston Assembly O-Ring, 35505-1318
Sta-Rite

Pentair Piston Assembly O-Ring, 35505-1318

$1599
Subtotal

Similar products

Other products people compare with this one.

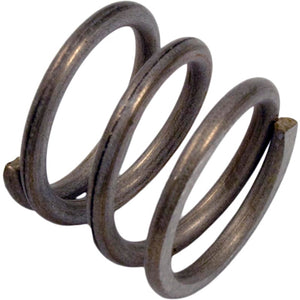

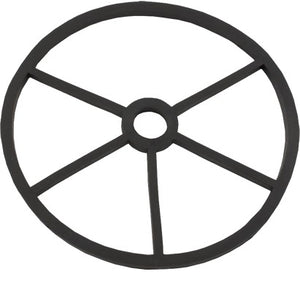

Sta-Rite 14971-SM10E9 stainless steel multiport valve spring Sta-Rite Stainless Steel Multiport Valve Spring, 14971-SM10E9$5899 Pentair 271148Z 2 in. multiport valve diverter spider gasket Pentair 2 in. Multiport Valve Diverter Gasket, 271148Z$3699 Pentair 272590Z union kit for 2 inch top mount multiport valve Pentair Genuine OEM Union Kit for 2" Top Mount MultiPort Valve, 272590Z$5499 Sta-Rite 14971-SM20E7 2 inch multiport valve cover o-ring Sta-Rite 2" Cover O-Ring 14971-SM20E7$3099 Hayward SPX0740B 2 inch valve cover for the SP0740DE multiport valve Hayward 2" Valve Cover for SP0740DE Multiport Valve, SPX0740B$7499 Jandy 7056 check valve flapper assembly rebuild kit Jandy Check Valve Kit for 1.5 in. to 2.5 in. Check Valve Body, 7056$7199 Hayward SPX0715D 2 in. Vari-Flo valve seat spider gasket, 6-1/2 in. Hayward 2" Valve Seat Gasket (6-1/2"), SPX0715D$3999 Pentair 270187Z replacement handle for FullFloXF backwash valve Pentair Replacement Handle for FullFloXF Backwash Valve, 270187Z$5099 Aladdin APCKIT39 SP715 multiport valve repair kit, 2 inch, with spring Aladdin SP715 Multiport Valve Repair Kit 2" with Spring, APCKIT39$4699 Pentair 272409 diverter seal for the 2 in. Hi-Flo side mount valve Pentair Seal for Diverter, Hi-Flo Valve 2", 272409$2799

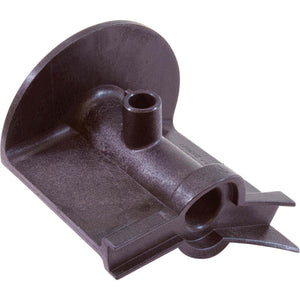

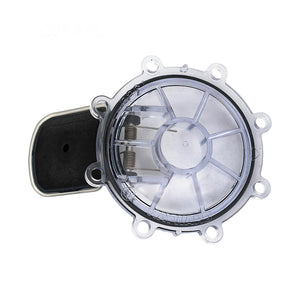

Pentair American Products 51008400 five spoke spider gasket, 6 inch outside diameter Pentair American Products 5 Spoke Spider Gasket, 6" OD, 51008400$3199 Pentair 270200Z inlet diverter for the FullFloXF backwash valve Pentair Inlet Diverter for FullFloXF Backwash Valve, 270200Z$6699 Pentair 230022 impeller for low profile water valve Pentair 230022 Impeller for Low Profile Water Valve$2999 Sta-Rite 14930-0032 index plate kit with o-ring for WC212-134 slide valves Sta-Rite Index Plate Kit with O-Ring, 14930-0032$5199 Pentair 274416Z center diverter for the FullFloXF backwash valve Pentair Center Diverter for FullFloXF Backwash Valve, 274416Z$5599 Pentair 270030 replacement cover for a Compool diverter valve Pentair Cover for Compool Valve, 270030$2999 Pentair 524550 o-ring for the low profile actuator valve Pentair O-Ring for Low Profile Actuator Valve, 524550$2899 Pentair 270028 black replacement handle for Compool valve Pentair Handle for Compool Valve, Black, 270028$2799 Hayward SPX0740C key stem assembly for the SP0740DE 2 inch Selecta-Flo valve Hayward Key Stem Assembly for SP0740DE Valve, SPX0740C$7499 Hayward PSXCVBAH PSV check valve cover and flapper replacement kit Hayward PSV Check Valve Cover and Flapper Replacement Kit, PSXCVBAH$3899

Product details

Sta-Rite 14971-SM20E12 is the spider gasket for 2 in. multiport valves. It has five spokes and a 6-5/8 in. outside diameter, and it is the part that seals one port from the next inside the valve body.

What it fixes

The spider gasket takes the whole load every time the handle moves, and it flattens and hardens with age. When it goes, the valve stops respecting the position it is set to: water runs to waste with the handle on filter, or unfiltered water finds its way back to the pool. Nothing else in the valve produces that symptom the same way.

Getting the size right

This is the 2 in. gasket. The 1-1/2 in. valve takes a smaller gasket with a different spoke pattern, so lay the old one next to the measurement above before you order. It is listed as a service part for the Sta-Rite 2 in. Cristal-Flo top mount valve and for the Sta-Rite 1-1/2 in. and 2 in. side mount multiports.

Specifications
Brand Sta-Rite
Manufacturer part number 14971-SM20E12
UPC 788379816919
Type Spider gasket
Part type Filter valves part
Valve size 2"
Spokes 5 spokes
Outside diameter 6-5/8" od
Listed under Sta-Rite 2" Cristal-Flo top mount valve 14971-TM-22-L parts, Sta-Rite 1-1/2" and 2" side mount multiport valve parts
Shipping weight 0.7 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53899 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15199 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$24599 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3499 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$30499 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media, 27002-0300S$56999 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S, 170147$76799 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black, 27001-0020S$28799 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit, 77707-0054$9499
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z$15499 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ$29699 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957$37399 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater, 474061$1,22199 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate, C103-194PZ$7099 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3399 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black, 356893Z$1,22699 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch, 42001-0061S$15799

Questions and answers

What people ask about this product, answered by our pool techs.

How do I know this is the right size?
It is the 2 in. valve gasket with five spokes and a 6-5/8 in. outside diameter. If your old gasket measures smaller or has a different spoke count, you have a 1-1/2 in. valve and need the other gasket.
What are the symptoms of a worn spider gasket?
Water going where the handle says it should not: flow to waste while the valve is set to filter, or the pool clouding because the valve is passing between ports internally.
Does the cover o-ring come with it?
No. The 2 in. cover o-ring is a separate Sta-Rite part. Since the valve has to come apart either way, most techs change both.
Which valves does it belong to?
It is listed as a service part for the Sta-Rite 2 in. Cristal-Flo top mount valve 14971-TM-22-L and for the Sta-Rite 1-1/2 in. and 2 in. side mount multiport valves.
Ask your own question
