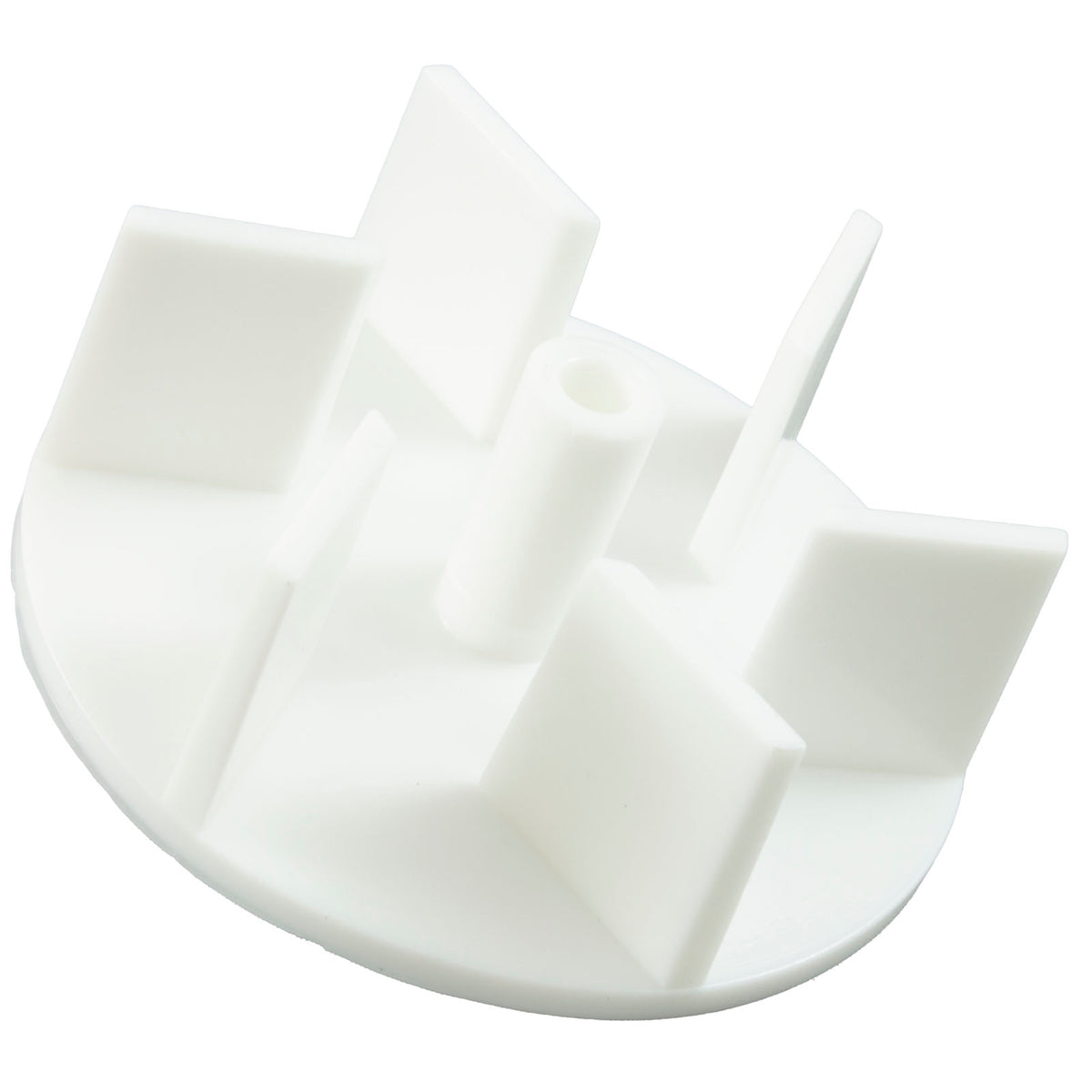

Pentair Impeller for Low Profile Water Valve, 230022 In stock$30⁹⁹

Pentair Impeller for Low Profile Water Valve, 230022

Name: Pentair Impeller for Low Profile Water Valve, 230022
Brand: Pentair
SKU: ANA-201-732
Price: 30.99 USD
Availability: InStock

Ask a questionMPN 230022

$30⁹⁹

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Genuine Pentair Factory part 230022, not an aftermarket copy.
Impeller only This listing is the impeller itself, not the complete valve.
For the low profile water valve The impeller Pentair specifies for that valve.
Ordered by part number Match 230022 to what is written on your existing part or parts list.
A wear item Impellers chip and wear with debris and running hours, and a worn one costs flow.
Direct replacement Goes in where the original impeller came out.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select Pentair Impeller for Low Profile Water Valve, 230022

Pentair

Impeller for Low Profile Water Valve, 230022

$30⁹⁹

Select

Pentair

Three Port Diverter Valve 2" x 2.5", 263028

$57⁹⁹

Select

Pentair

Chemical Resistant 1-1/2" x 2" Check Valve, R172288

$74⁹⁹

Select

Pentair

Sinking Pool Water Thermometer with ABS Case and 3-Foot Cord, R141036

$16⁹⁹

Select

Pentair

Replacement Handle for FullFloXF Backwash Valve, 270187Z

$50⁹⁹

Select

Pentair

2 in. Multiport Valve Diverter Gasket, 271148Z

$36⁹⁹

Select

Pentair

Genuine OEM Six-Way HiFlow Valve Clamp with Screw and Nut, 152165

$30⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Pentair O-Ring for Low Profile Actuator Valve, 524550$30⁹⁹

Pentair 272409 diverter seal for the 2 in. Hi-Flo side mount valve

Pentair Seal for Diverter, Hi-Flo Valve 2", 272409$28⁹⁹

Pentair 270134 handle for the 263064 push pull backwash slide valve

Pentair Handle for 263064 Backwash Slide Valve, 270134$26⁹⁹

Pentair 270030 replacement cover for a Compool diverter valve

Pentair Cover for Compool Valve, 270030$29⁹⁹

Pentair 273109 o-ring kit for the ABS backwash slide valve

Pentair O-Ring Kit for ABS Backwash Slide Valve, 273109$17⁹⁹

Pentair 270028 black replacement handle for Compool valve

Pentair Handle for Compool Valve, Black, 270028$26⁹⁹

Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve

Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$18⁹⁹

Jandy R0552400 o-ring kit for the Never Lube 2-in-1 backwash valve

Jandy O-Ring Kit for 2-in-1 Backwash Valve, R0552400$23⁹⁹

Pentair Check Valve Flap Kit, 263042Z$41⁹⁹

Pentair 274421Z waste seal spring for FullFloXF backwash valve

Pentair FullFloXF Backwash Valve Waste Seal Spring, 274421Z$16⁹⁹

Pentair 230010Z 6-port T-valve bottom replacement cam

Pentair 6-Port T-Valve Bottom Replacement Cam, 230010Z$32⁹⁹

Pentair 273089 handle for a 5/8 inch plastic valve shaft

Pentair Handle for Plastic Shaft, 5/8", 273089$27⁹⁹

Pentair 271103 valve cover o-ring, 5-1/4 inch inside diameter

Pentair Cover O-Ring for 1-1/2 inch TM-12 and SM-10 Valves, 271103$21⁹⁹

Jandy R0409600 gasket and screw kit for JVA 2444 valve actuator, product photo

Jandy Gasket and Screw Kit for JVA 2444 Valve Actuator, R0409600$22¹⁷

Pentair 72420 1-1/2 inch Noryl valve cover in gray

Pentair 1-1/2 in. Noryl Valve Cover, Gray, 72420$20⁹⁹

Hayward PSXCVBAH PSV check valve cover and flapper replacement kit

Hayward PSV Check Valve Cover and Flapper Replacement Kit, PSXCVBAH$38⁹⁹

Hayward SPX0715D 2 in. Vari-Flo valve seat spider gasket, 6-1/2 in.

Hayward 2" Valve Seat Gasket (6-1/2"), SPX0715D$39⁹⁹

Hayward SPX0603S valve spring for multiport valves

Hayward Valve Spring, SPX0603S$19⁹⁹

SuperPro GO-KIT70 2 in. valve rebuild kit for Pentair PacFab multiport valves

SuperPro 2 in. Valve Rebuild Kit, GO-KIT70$19⁹⁹

Jandy R0486900 black NeverLube valve knob for 2-way and 3-way valves

Jandy 2-Way/3-Way NeverLube Valve Knob, R0486900$24⁹⁹

Product details

The Pentair Impeller for Low Profile Water Valve, 230022, is the impeller Pentair lists for its 2 in. WAVE water actuated valve, the low profile valve in its in-floor cleaning and circulation line.

Where it sits

Pentair's WAVE housing replacement guide lists the impeller with the other valve internals: two shims, the gear plate assembly, two stainless steel anti-friction washers and the center shaft. On reassembly the impeller goes in after the gear plate and before the valve lid, and the lid has a speed control guide that must line up with a groove in its underside. Impellers wear and chip over time, and a worn one costs flow before it fails outright.

Fit

The guide covers the 2 in. valve and gives 230022 as the impeller. Pentair's in-floor catalog shows the same part as the Low Profile Impeller, 230022Z. It also lists the impeller shim (235070), the valve lid assembly with O-ring (230045), the valve O-ring (230046) and the band clamp (230011) as separate parts, along with low profile speed nozzles, 230174 for inside install and 230175 for outside install.

Before you order

This listing is the impeller only. The valve, shims and lid are not included. If your valve is the 1-1/2 in. low profile version rather than the 2 in., check Pentair's parts list for your valve before ordering.

Specifications
Brand	Pentair
Manufacturer part number	230022
UPC	818965012545
Part type	Valve part
Type	Impeller
Fits	Pentair low profile water valve
Replaces	Pentair 230022Z Low Profile Impeller (catalog listing)
Related parts	Impeller shim 235070, lid assembly with O-ring 230045, valve O-ring 230046, band clamp 230011
Shipping weight	0.1 lb
Ships	Parcel
