Pentair 274421Z waste seal spring for FullFloXF backwash valvePentair FullFloXF Backwash Valve Waste Seal Spring, 274421Z In stock$1799

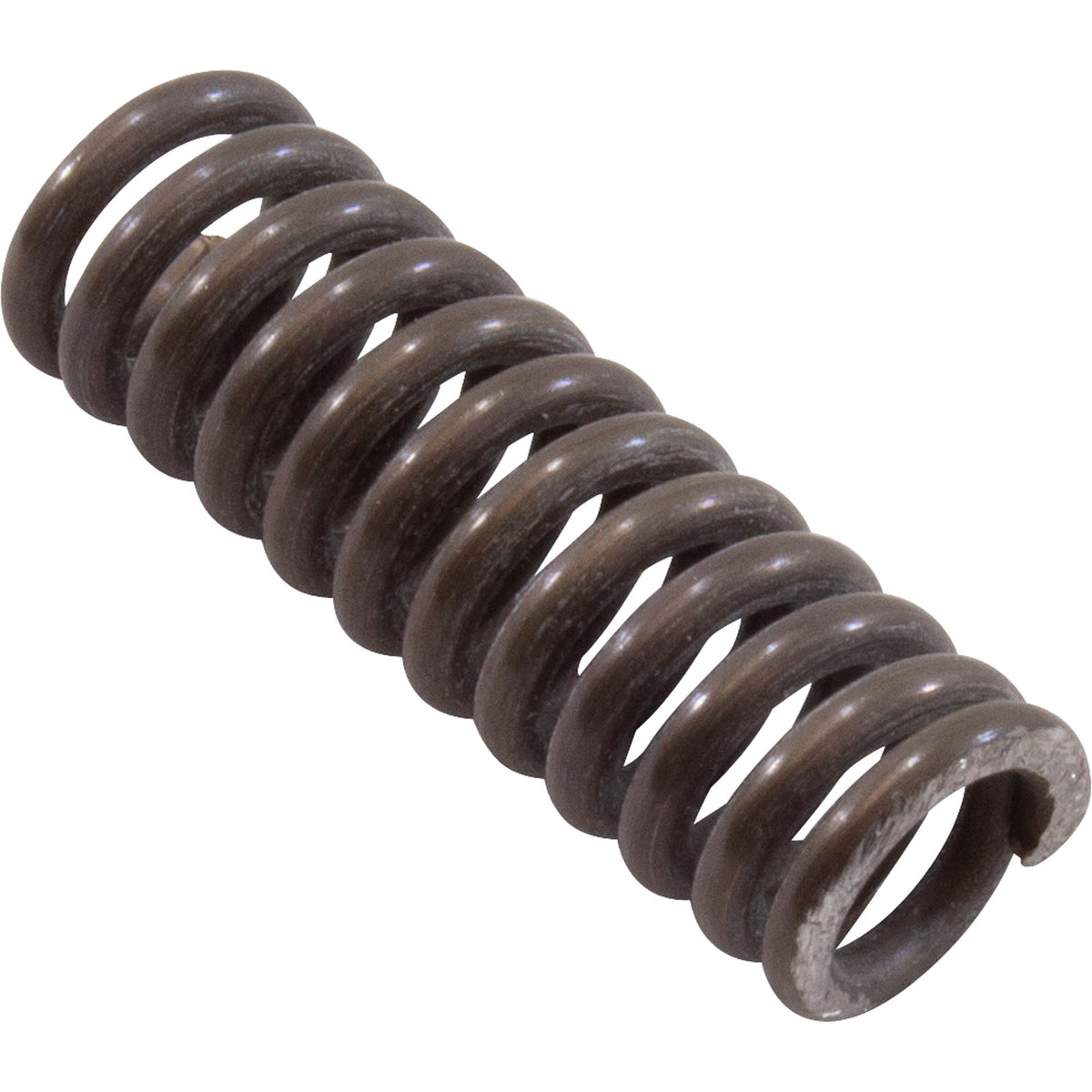

Pentair 274421Z waste seal spring for FullFloXF backwash valve
Shop all Pentair

Pentair FullFloXF Backwash Valve Waste Seal Spring, 274421Z

Ask a questionMPN 274421Z
$1799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory part 274421Z for the FullFloXF backwash valve.
  • Waste seal spring The spring behind the waste seal, sold on its own.
  • FullFloXF specific Listed for the Pentair FullFloXF backwash valve, not the older FullFlo bodies.
  • Sold separately from the seal The waste seal itself is a different part, so order both if the seal is worn too.
  • Restores seal pressure A tired or broken spring lets the waste seal sit loose, which is a common cause of water passing to waste.
  • Small part worth stocking Cheap enough to have on the shelf when a valve rebuild is on the calendar.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair FullFloXF Backwash Valve Waste Seal Spring, 274421Z, SKU PAC-061-7724. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair FullFloXF Backwash Valve Waste Seal Spring, 274421Z
Pentair

FullFloXF Backwash Valve Waste Seal Spring, 274421Z

$1799
Pentair Three Port Diverter Valve 2" x 2.5", 263028
Pentair

Three Port Diverter Valve 2" x 2.5", 263028

$5799
Pentair Chemical Resistant 1-1/2" x 2" Check Valve, R172288
Pentair

Chemical Resistant 1-1/2" x 2" Check Valve, R172288

$7499
Pentair Sinking Pool Water Thermometer with ABS Case and 3-Foot Cord, R141036
Pentair

Sinking Pool Water Thermometer with ABS Case and 3-Foot Cord, R141036

$1699
Pentair Replacement Handle for FullFloXF Backwash Valve, 270187Z
Pentair

Replacement Handle for FullFloXF Backwash Valve, 270187Z

$5099
Pentair 2 in. Multiport Valve Diverter Gasket, 271148Z
Pentair

2 in. Multiport Valve Diverter Gasket, 271148Z

$3699
Pentair Genuine OEM Six-Way HiFlow Valve Clamp with Screw and Nut, 152165
Pentair

Genuine OEM Six-Way HiFlow Valve Clamp with Screw and Nut, 152165

$3099
Subtotal

Similar products

Other products people compare with this one.

Pentair 271160 white valve spring washer for multiport valves Pentair 1" White Valve Spring Washer, 271160$1399 Pentair 270134 handle for the 263064 push pull backwash slide valve Pentair Handle for 263064 Backwash Slide Valve, 270134$2499 Pentair 273109 o-ring kit for the ABS backwash slide valve Pentair O-Ring Kit for ABS Backwash Slide Valve, 273109$1899 Hayward SPX0603S valve spring for multiport valves Hayward Valve Spring, SPX0603S$1999 Jandy R0552400 o-ring kit for the Never Lube 2-in-1 backwash valve Jandy O-Ring Kit for 2-in-1 Backwash Valve, R0552400$2399 Pentair 271151 top valve o-ring for 2 inch HiFlow multiport valves Pentair Genuine OEM O-Ring, Valve Top, 2", 271151$1399 Pentair 14965-0020 operating instructions decal for the 1-1/2 in Sta-Rite MultiPort valve Pentair Decal for 1-1/2 Inch Sta-Rite MultiPort Valve, 14965-0020$1499 Pentair 71427 H-Series valve body o-ring Pentair H-Series Valve Body O-Ring, 71427$1399 CMP replacement multiport valve label for Pentair valves CMP Replacement Pentair Multiport Valve Label, 90009-275-001$1099 Super Pro GO-KIT72 seal kit for Jandy Neverlube valves Super Pro Jandy Neverlube Valve Seal Kit, GO-KIT72$1699
SuperPro GO-KIT4-9 gasket and o-ring seal kit for the Pac-Fab 2 inch slide valve SuperPro Pac-Fab 2" Slide Valve Seal Kit GO-KIT4-9$2199 Hayward SPX0720P2 Teflon ball valve seal, set of 2 Hayward Teflon Ball Valve Seal, Set of 2, for SP0720, SP0730 and SP0735 Valves, SPX0720P2$1299 Pentair 72420 1-1/2 inch Noryl valve cover in gray Pentair 1-1/2 in. Noryl Valve Cover, Gray, 72420$2099 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799 SuperPro GO-KIT70 2 in. valve rebuild kit for Pentair PacFab multiport valves SuperPro 2 in. Valve Rebuild Kit, GO-KIT70$1999 SuperPro G-418-9 valve seat gasket, generic replacement for Hayward SPX0740D SuperPro Generic Gasket for Valve Seat SPX0740D, G-418-9$1299 Jandy R0486900 black NeverLube valve knob for 2-way and 3-way valves Jandy 2-Way/3-Way NeverLube Valve Knob, R0486900$2499 Pentair 35505-1318 piston assembly O-ring for Sta-Rite push pull valves Pentair Piston Assembly O-Ring, 35505-1318$1599 Jandy R0487000 gray 2-way and 3-way valve knob Jandy 2-Way/3-Way Valve Knob (Gray), R0487000$2399 Caretaker Ultraflex 2 face seal o-ring for the Jandy and Zodiac 8 port valve Caretaker Ultraflex 2 Face Seal O-Ring, 44209$1099

Product details

The Pentair 274421Z is the waste seal spring for the FullFloXF backwash valve. It is the genuine Pentair part.

What it does

Inside the valve, the waste seal has to be held firmly against its seat to keep water from bleeding out to waste while the system is in filter. The spring is what supplies that load. When it weakens or breaks, the seal sits loose and water starts finding its way to the waste line even though the handle says otherwise.

Before you order

This listing is the spring alone. The FullFloXF waste seal is a separate part, and the two normally wear as a pair. If you have the valve open, look at the seal face before you decide to order just the spring.

Specifications
Brand Pentair
Manufacturer part number 274421Z
UPC 788379855604
Type Waste seal spring
Fits Pentair FullFloXF backwash valve
Sold as Spring only
Shipping weight 0.13 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Does this include the waste seal?
No. This is the spring only. The FullFloXF waste seal is a separate Pentair part.
Which valve does it fit?
The Pentair FullFloXF backwash valve.
Is it a genuine Pentair part?
Yes. It is the Pentair OEM part, number 274421Z.
Water keeps running to waste, is the spring the problem?
It can be. The spring loads the waste seal against its seat, and a broken or weakened spring lets the seal sit loose. Inspect the seal at the same time, since the two usually wear together.
