Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH In stock$2,951⁹⁹

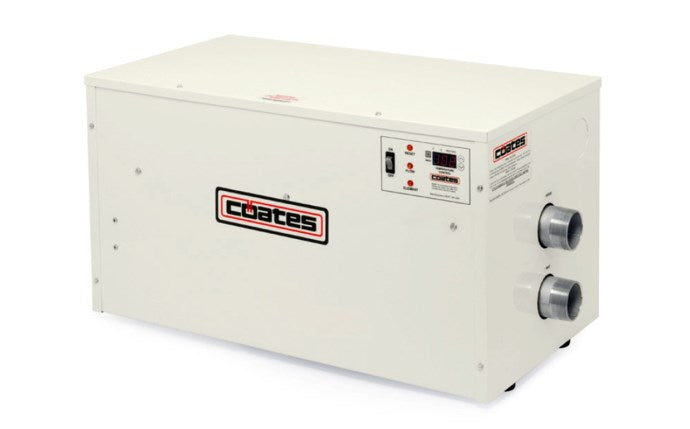

Coates 12424CPH CPH Series 24kW 240V single phase electric pool and spa heater

Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH

Name: Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH
Brand: Coates Heater
SKU: CHC-15-498
Price: 2951.99 USD
Availability: InStock

Ask a questionMPN 12424CPH

$2,951⁹⁹

FREE Delivery

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Rated 24kW at 240V Single phase, drawing 102 amps, so the electrical service has to be sized for it.
Digital thermostat The 24kW and 30kW heaters add digital thermostat control, which the 12kW to 18kW units do not have.
Precise temperature control Digital control holds the set water temperature more closely than a dial thermostat.
Pool and spa Coates lists the CPH Series for both pool and spa duty.
Coates CPH Series Part number 12424CPH, the 24kW single phase model in the range.
Same platform as the smaller CPH heaters Shares the features of the 12kW to 18kW models in the series, with the thermostat added.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH

Coates Heater

Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH

$2,951⁹⁹

Select

Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$299⁹⁹

Select

Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$33⁹⁹

Select

Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$370⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784

Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,649⁰⁰

Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,739⁰⁰ Web Price

Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater

Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,212⁹⁹

Raypak 014779 106A analog natural gas above ground pool heater

Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,119⁰⁰

Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view

Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,374⁰⁰

Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,426⁰⁰

Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,179⁰⁰

Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater

Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,249⁰⁰

Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786

Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,649⁰⁰

Raypak AVIA P-R264A-EN-N 264K BTU natural gas low NOx pool heater with WiFi, front view

Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$4,007⁰⁰

Raypak P-R206A-EN-X 200K BTU natural gas pool and spa heater

Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,390⁰⁰

Raypak 009225 Digital 266K BTU propane pool heater P-R266A-EP-C

Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,374⁰⁰

Raypak 009218 digital 333K BTU natural gas pool heater, model P-R336A-EN-C

Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,841⁰⁰

Raypak P-R266A-EP-X 266K BTU propane pool heater with cupro-nickel heat exchanger, front view

Raypak Heater, 240K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R266A-EP-X, 014951$3,742⁰⁰

Raypak AVIA P-R264A-EP-C 264,000 BTU propane low NOx pool heater

Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,493⁰⁰

Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater

Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,374⁰⁰

Raypak P-R206A-EP-X 200,000 BTU propane pool heater with cupro-nickel heat exchanger, front view

Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,390⁰⁰

Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model

Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,649⁰⁰

Raypak AVIA P-R404A-EP-C 399,000 BTU propane low NOx pool and spa heater with WiFi

Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,426⁰⁰

Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater

Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,078⁹⁹

Product details

The Coates 12424CPH is a CPH Series electric pool and spa heater rated at 24kW on 240V single phase power, drawing 102 amps.

Digital thermostat

The 24kW and 30kW heaters in the CPH range carry a digital thermostat, which the 12kW through 18kW units do not. That gives closer control of pool water temperature than a dial, so the water lands where it was set rather than near it.

Electrical requirements

A 102 amp single phase load is a serious electrical install. The service, breaker and conductors all need to be sized for it, and that should be confirmed with a licensed electrician against the Coates installation guide before the heater is ordered.

The rest of the series

Beyond the thermostat and the output, this unit shares the features of the smaller CPH heaters, so a pool already running a Coates electric heater will find the platform familiar.

Specifications
Brand	Coates
Manufacturer part number	12424CPH
Series	CPH Series
Type	Electric pool and spa heater
Power	24 kW
Heat output	81,888 BTU/hr, which is 24 kW x 3,412
Electrical	240 V, single phase, 100 A
Water connections	1-1/2 in male NPT
Dimensions	24 in long, 12 in wide, 13 in high
Unit weight	68 lb
Heating elements	Incoloy
Tank	Stainless steel
Controls	Digital thermostat, manual reset high limit, flow switch
Flow rate	20 to 80 GPM
Listing	UL, indoor or outdoor
Ships	Freight

Downloads

Installation Guide Technical Sheet Brochure Data Sheet Owners Manual

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Coates Heater

Coates 12411ST 11kW 240V single phase ST Series electric spa heater

Coates 11kW 240V Spa Heater, Single Phase, 12411ST$969⁹⁹

Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater

Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,575⁹⁹

Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater

Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,009⁹⁹

Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,078⁹⁹

Coates 6ILS in-line electric spa heater, 6 kW 240 V single phase

Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$512⁹⁹

Coates 20005061 threaded heating element 5.5kW 240V with gasket

Coates Electric Heater 5.5kW 240V Threaded Element with Gasket, 20005061$68⁹⁹

Coates 22003820 high temperature limit switch for Coates electric heaters

Coates High Temperature Limit Switch, 22003820$93⁹⁹

Coates 12406ST ST Series 5.5 kW electric spa heater, 240V

Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$887⁹⁹

Coates 20006009 heater element, 12 kW 240V

Coates Heater Element 12 kW 240V, 20006009$329⁹⁹

Coates 23000105 Q-12DS50 half inch pool heater flow switch

Coates Heater 1/2" Flow Switch, Q-12DS50, 23000105$87⁹⁹

Coates 32705010 split nut union in PVC for SHA and SHB heaters

Coates Split Nut Union for SHA and SHB Heaters, PVC, 1-1/2 to 2 inch, 32705010$19⁹⁹

Coates 22002001 temperature control thermostat TD103-77 for CPH and PHS heaters

Coates Temperature Control Thermostat TD103-77 CPH/PHS, 22002001$64⁹⁹

Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,889⁹⁹

Coates 57kW three phase 480V electric pool and spa heater

Coates Electric Heater 57kW Three Phase 480V, 32857PHS$3,863⁹⁹

Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH$2,987⁹⁹

Coates 20006004 15kW 208V heater element with 4 bolt flange and gasket

Coates 15kW Heater Element, 208V with 4 Bolt Flange and Gasket, 20006004$323⁹⁹

Questions and answers

What people ask about this product, answered by our pool techs.

What electrical supply does the Coates 12424CPH need?

240 V, single phase, 100 A, by Coates's table for the 12424CPH. Have an electrician confirm the panel, breaker and conductors before ordering.

Does the Coates 12424CPH need a gas line or a vent?

No. It is electric, so there is no gas piping, no vent and no combustion air to plan for. The installation work is plumbing and electrical.

Can the Coates 12424CPH go on a salt water pool?

Coates builds a separate series, the PHS-CN, for pools on salt chlorine generators, with a copper nickel tank and titanium elements. This heater has a stainless steel tank and Incoloy elements.

What controls does the Coates 12424CPH have?

A digital thermostat, a manual reset high limit and a flow switch, all built in. Coates gives the working flow range as 20 to 80 GPM.

Can the Coates 12424CPH be installed outdoors?

Yes. It is UL listed for indoor or outdoor installation.
