Hayward LATERAL ASSY W/CENTER PIPE | SX220DAHayward Folding Lateral Assembly with Center Pipe for ProSeries S220T 22 in. Sand Filter, SX220DA$14299
Hayward LATERAL ASSY W/CENTER PIPE | SX220DA
Shop all Hayward

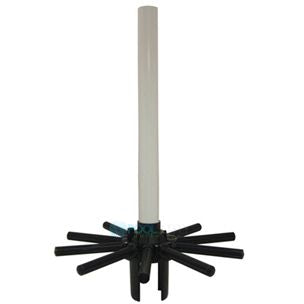

Hayward Folding Lateral Assembly with Center Pipe for ProSeries S220T 22 in. Sand Filter, SX220DA

Ask a questionMPN SX220DA
$14299
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Made for the S220T Hayward lists SX220DA as the folding lateral assembly for its 22 in. ProSeries top mount sand filter.
  • Laterals and center pipe The folding laterals and the center pipe come as one assembly.
  • Folding design The laterals fold, and they must be in the down position before sand goes in.
  • Fixes sand in the pool Broken laterals let sand pass into the return lines; a new assembly stops it.
  • Genuine Hayward Factory part SX220DA.
  • One per filter The filter uses a single lateral assembly.
Full description and specifications ↓
