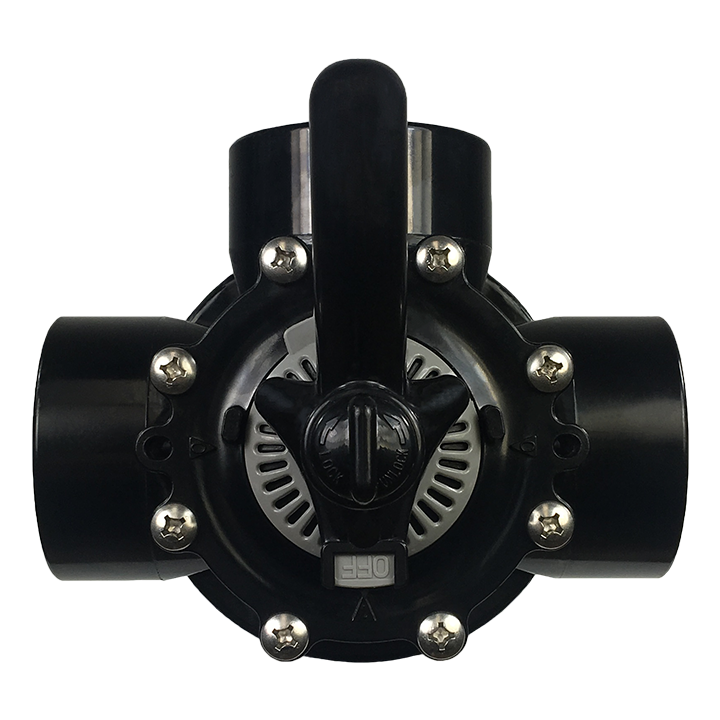

CMP 25913-204-000 black CPVC 3-way diverter valveCMP 3-Way Diverter Valve, 2" S x 2.5" SPGT, Black CPVC, 25913-204-000 In stock$7399
CMP 25913-204-000 black CPVC 3-way diverter valve
Shop all CMP

CMP 3-Way Diverter Valve, 2" S x 2.5" SPGT, Black CPVC, 25913-204-000

Ask a questionMPN 25913-204-000
$7399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Three way diversion Sends flow to one port, the other, or splits it between the two.
  • Two sizes in one body 2 inch socket on one side, 2.5 inch spigot on the other.
  • Black CPVC CPVC body in black, the standard choice on pool and spa pads.
  • NSF certified The valve carries NSF certification.
  • Handle turns the diverter The diverter plate inside moves with the handle, so flow is set by hand at the pad.
  • CMP part 25913-204-000 Order and cross check by the CMP number.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP 3-Way Diverter Valve, 2" S x 2.5" SPGT, Black CPVC, 25913-204-000, SKU CTM-56-1042. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP 3-Way Diverter Valve, 2" S x 2.5" SPGT, Black CPVC, 25913-204-000
CMP

3-Way Diverter Valve, 2" S x 2.5" SPGT, Black CPVC, 25913-204-000

$7399
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1899
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$35699
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Jandy 4715 Neverlube 3-port diverter valve, 1-1/2 in. x 2 in., top view Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715$7199 Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in. Pentair Three Port Diverter Valve 2" x 2.5", 263028$5799 Pentair Rainbow R172288 chemical resistant 1-1/2 in. x 2 in. spring check valve Pentair Chemical Resistant 1-1/2" x 2" Check Valve, R172288$7499 Jandy 4717 NeverLube 3 port diverter valve, 2 in. x 2-1/2 in. Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717$9999 Jandy 7305 spring check valve, 2 in. internal by 2-1/2 in. external ports Jandy 2 in. / 2-1/2 in. Check Valve, 7305$8099 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 Jandy 4716 Neverlube positive seal two way diverter valve, 2 in. x 2-1/2 in. Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716$9299 Hayward SP0723 Trimline 2-way ball valve, 1-1/2 inch mpt by 1-1/2 inch fpt Hayward Trimline 2-Way Ball Valve, 1-1/2" mpt x 1-1/2" fpt, SP0723$3999 Pentair 263029 two port PVC diverter valve, 2 in. x 2-1/2 in. Pentair Two Port Diverter Valve, 2 in. x 2-1/2 in., 263029$5199 Jandy 4944 NeverLube 3 port valve, 2-1/2 in. by 2 in. Jandy Neverlube 3 Port Valve, 2-1/2" x 2", 4944$10399
Hayward PSV3S2DGR 2 in by 2-1/2 in PSV Series 3-way diverter valve in PVC Hayward 2" x 2-1/2" PSV Series 3-Way Diverter Valve, PVC, PSV3S2DGR$5299 Hayward PSV3SDGR 1-1/2 in by 2 in PSV Series 3-way diverter valve in PVC Hayward 1-1/2" x 2" PSV Series 3-Way Diverter Valve, PVC, PSV3SDGR$5799 Jandy 7235 two way check valve with 1-1/2 inch and 2 inch ports Jandy Check Valve, 1-1/2" / 2", 7235$6399 Pentair 263037 three port diverter valve, 1-1/2 inch by 2 inch Pentair Three Port Diverter Valve 1-1/2" x 2", 263037$4999 Pentair 263042 black CPVC straight check valve for pool plumbing Pentair Check Valve, CPVC, 2", 263042$8299 Hayward PSCV2S2DGR 2 in. x 2-1/2 in. straight PVC check valve, gray Hayward 2 in. x 2-1/2 in. Straight PVC PSV Check Valve, PSCV2S2DGR$5499 Hayward PSV2S2DGR PSV series 2-way diverter valve, 2 in. x 2-1/2 in. PVC Hayward PSV Series 2-Way Diverter Valve, 2 in. x 2-1/2 in. PVC, PSV2S2DGR$5299 Hayward PSV2SDGR 1-1/2 inch by 2 inch PSV Series 2-way PVC diverter valve Hayward 1-1/2" x 2" PSV Series 2-Way Diverter Valve, PVC, PSV2SDGR$4499 Hayward SP0735 1-1/2 in. 4 way ball valve Hayward 1-1/2" 4 Way Ball Valve, SP0735$8099 Jandy 4718 Neverlube 2 port dial valve with 2-1/2 inch and 3 inch PVC connections Jandy Neverlube Valve 2 Port, 2-1/2" x 3", 4718$8999

Product details

The CMP 25913-204-000 is a three way diverter valve in black CPVC, with a 2 inch socket on one side and a 2.5 inch spigot on the other. It is NSF certified.

What a three way valve does

Turn the handle and the diverter inside moves. Flow goes entirely to one port, entirely to the other, or is split between them at whatever balance the handle is set to. That is how a pad sends water to the pool or the spa, chooses between two returns, or balances suction between skimmer and main drain.

Sizing and material

The 2 inch socket accepts 2 inch pipe inside it. The 2.5 inch spigot is the outside diameter that slips into a 2.5 inch socket, and it will also take a 2 inch fitting over it, which is why this pairing shows up on so many systems. The body is CPVC in black, the usual specification for equipment pad plumbing.

Specifications
Brand CMP
Manufacturer part number 25913-204-000
UPC 849640020043
Type 3-way diverter valve
Material Black CPVC
Connections 2 in socket x 2.5 in spigot
Certification NSF certified
Shipping weight 1.65 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$14599 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1499 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$1199 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C CMP Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000$6799 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,47099 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$14799 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket Compatible with Hayward® SP1070-E, 27180-009-000$1399
CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699 CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$16699 CMP 25503-460-000 Brilliant Wonders 4 in. bubbler body assembly for gunite pools, white CMP Brilliant Wonders 4" Bubbler Body Assembly Gunite, 25503-460-000$12399 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$1999 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3199 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8399

Questions and answers

What people ask about this product, answered by our pool techs.

What do the socket and spigot sizes mean?
The 2 inch socket takes 2 inch pipe inside it. The 2.5 inch spigot is sized to slip into a 2.5 inch fitting, and it also accepts a 2 inch coupling over it, which is why this size pair is so common on pool plumbing.
Can it split flow between two ports?
Yes. A three way diverter can send everything one way, everything the other way, or share flow between both, depending on where the handle sits.
What is the body made of?
Black CPVC.
Is it certified?
Yes, the valve is NSF certified.
Ask your own question
