Pentair 340030 EQ Series EQ-500 5 HP single phase commercial pool pump with strainerPentair EQ Series EQ-500 5 HP Premium Efficiency Single Phase Commercial Pump with Strainer, 340030 In stock$6,74799

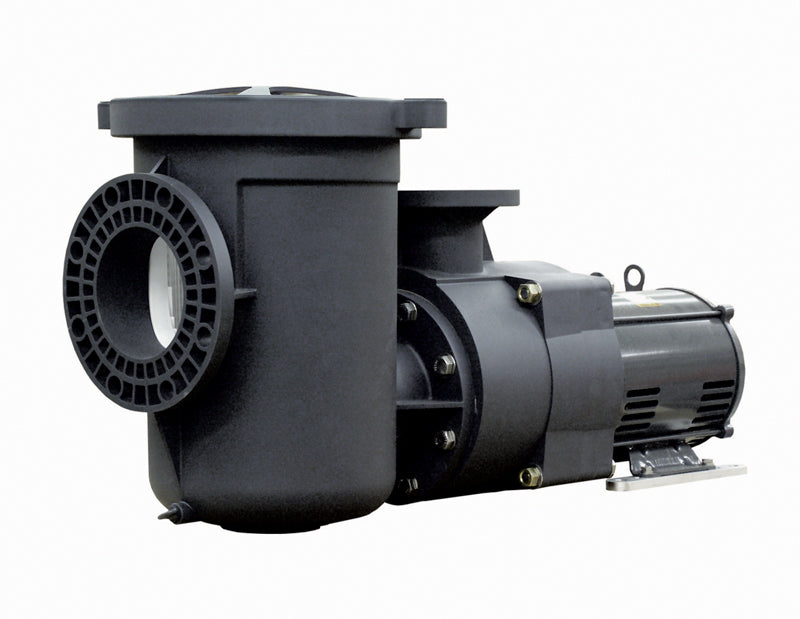

Pentair 340030 EQ Series EQ-500 5 HP single phase commercial pool pump with strainer
Shop all Pentair

Pentair EQ Series EQ-500 5 HP Premium Efficiency Single Phase Commercial Pump with Strainer, 340030

Ask a questionMPN 340030
$6,74799
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 5 HP single phase Runs on 230 V single phase at 20 A with a 1.15 service factor, 5.75 SFHP.
  • ANSI flange ports 6 in. suction and 4 in. discharge ANSI flange connections.
  • Premium efficiency motor NEMA Premium grade efficiency motor with a NEMA rated enclosure.
  • All plastic commercial build Non-corrosive commercial grade plastic parts for durability and long life.
  • Self-priming strainer Self-priming with a hair and lint strainer and a cam and ramp see-thru lid.
  • Drive ready Compatible with Acu Drive XS variable frequency drives.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair EQ Series EQ-500 5 HP Premium Efficiency Single Phase Commercial Pump with Strainer, 340030, SKU PAC-10-0030. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair EQ Series EQ-500 5 HP Premium Efficiency Single Phase Commercial Pump with Strainer, 340030
Pentair

EQ Series EQ-500 5 HP Premium Efficiency Single Phase Commercial Pump with Strainer, 340030

$6,74799
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

Pentair EQ Series EQ750 7.5 HP three phase commercial pump with strainer, part 340033 Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V, 340033$6,72499 Pentair EQ Series EQ-750 7.5 HP single phase commercial pool pump, part 340032 Pentair EQ Series 7.5 HP EQ-750 Premium Efficiency Single Phase Pump, 340032$6,49699 Pentair EQ500 340031 5 HP three phase commercial pool pump with strainer pot Pentair EQ Series Commercial Pump 5 HP 208-230/460V 13.5-12.3/6.2 Amp, 340031$6,55699 Pentair EQ1000 commercial pool pump 10 HP 230V, part 340238 Pentair EQ1000 Commercial Pump 10 HP 230V, 340238$7,66499 Pentair EQK1500 15 HP three phase commercial pool pump with strainer pot, part 340035 Pentair EQK1500 Series 15 HP NEMA Premium Efficiency 3-Phase Pool Pump with Strainer, 208-230/460V, 340035$7,99599 Pentair 340605 EQ Series 7.5 HP three phase commercial pool pump with strainer Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V 19.9-17.8/8.9 Amp, 340605$6,94599 Pentair 340604 EQ Series 5 HP commercial pool pump with strainer Pentair EQ Series Commercial Pump 5 HP 208-230/460V 13.4-12.2/6.1 Amp, 340604$6,89999 Speck Pumps Model 95-X single speed 7.5 HP three phase pool pump, IG273-1750F-000 Speck Pumps 95-X Single Speed Pool Pump, 7.5 HP 3 Phase, IG273-1750F-000$5,37400 Web Price Pentair 340034 EQ Series EQ1000 10 HP three phase commercial pump with strainer pot Pentair EQ Series Commercial Pump 10 HP 208-230/460V, 340034$7,47899 Sta-Rite CSP Series CSPHK3-142 7.5 HP three phase cast iron pool pump without strainer Pentair Sta-Rite CSP Series 7.5 HP Three Phase Cast Iron Pool Pump without Strainer, 230-460V, CSPHK3-142$5,15699
Pentair 022035 WhisperFloXF VS 5HP variable speed commercial pool pump Pentair WhisperFloXF 5HP Variable Speed Pool Pump, 208-230/277-460V 1-Phase / 208-460V 3-Phase, 022035$3,35899 Pentair WhisperFlo XF 5HP three phase pool pump, part 022019 Pentair WhisperFlo XF 5HP 3PH Pump, 022019$3,01799 Hayward W3SP3206VSP TriStar VS 950 2.7 HP variable speed pool pump, front view Hayward TriStar VS 950 Variable Speed Pool Pump, 2.7 HP 115V-230V, W3SP3206VSP$2,69900 Web Price Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair IntelliFloXF 022056 variable speed and flow pool pump, 3 HP, 230V Pentair IntelliFloXF VSF Variable Speed and Flow Pool Pump, 3 HP Max, 3.95 THP, 230V, 022056$2,21699 Hayward W3SP3202VSP TriStar VS 1.85 HP variable speed pool pump Hayward TriStar VS Variable Speed Pool Pump, 1.85 HP 230V, Single Phase, W3SP3202VSP$2,19900 Web Price Pentair WhisperFlo WFK-12 3 HP three phase pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 HP Full Rated, 3 Phase, 208/230/460V, WFK-12, 011644$1,91399 AquaStar PLP300S 3 HP PipeLine variable speed pool pump with WiFi control AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control, PLP300S$1,85000 Web Price Pentair 022017 WhisperFloXF 2 HP high performance pool pump Pentair 022017 WhisperFloXF High Performance Pump 2 HP 208-230/460V$1,80599 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair EQ-500 340030 is the 5 HP, 230 V single phase premium efficiency commercial pump from the EQ Series, supplied with a plastic strainer pot.

Electrical and hydraulic specs

The motor runs on 230 V single phase at 20 A, with a 1.15 service factor for 5.75 SFHP, and it has a NEMA rated enclosure and a NEMA Premium grade efficiency motor. Plumbing is by ANSI flange, 6 in. on the suction side and 4 in. on the discharge side. The pump has a closed impeller and a close coupled design, and the assembled pump measures 43.59 in. long and 19 in. wide.

Construction

EQ Series pumps are non-corrosive, all plastic pumps made for commercial pool and water applications. The strainer pot has a cam and ramp see-thru lid and holds a hair and lint strainer. The pump is self-priming under NSF standards and NSF listed.

Choosing the right EQ pump

The EQ Series is offered in many configurations, including three phase and waterfall models and versions without a strainer. This listing is the single phase model with strainer. It is a drop-in replacement for the C Series pump and is compatible with Acu Drive XS variable frequency drives.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Pentair
Manufacturer part number 340030
UPC 788379690397
Series EQ Series
Model EQ-500
Type Commercial pool pump with strainer
Horsepower 5 HP
Voltage 230 V
Phase Single phase
Amperage 20 A
Service factor 1.15 (5.75 SFHP)
Motor enclosure NEMA rated
Port size 6 in. suction by 4 in. discharge, ANSI flange
Impeller Closed impeller, close coupled
Color Black
Overall size 43.59 in. long, 19 in. wide
Shipping weight 189 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What power does the Pentair EQ-500 340030 pump need?
It runs on 230 V single phase at 20 A. It is a 5 HP motor with a 1.15 service factor, 5.75 SFHP.
What are the pipe connections on the Pentair 340030?
It has ANSI flange connections, 6 in. on the suction side and 4 in. on the discharge side.
Is the Pentair 340030 the version with a strainer?
Yes. This EQ-500 is the single phase model with the plastic strainer pot. EQ Series pumps are also offered in other configurations, including three phase and waterfall models.
Can the Pentair EQ-500 340030 run on a variable frequency drive?
Yes. EQ Series pumps are compatible with Acu Drive XS variable frequency drives, and the EQ Series is a drop-in replacement for the C Series pump.
