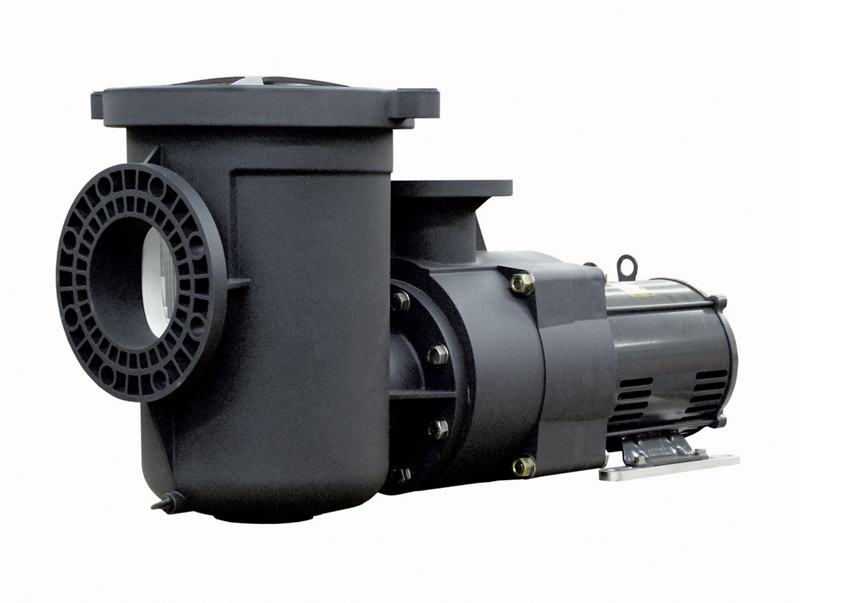

Pentair EQ Series EQ750 7.5 HP three phase commercial pump with strainer, part 340033Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V, 340033 In stock$6,72499
Pentair EQ Series EQ750 7.5 HP three phase commercial pump with strainer, part 340033
Shop all Pentair

Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V, 340033

Ask a questionMPN 340033
$6,72499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 7.5 HP three phase Runs on 208-230 V or 460 V three phase power, drawing 20.4 A at 208 V, 18.2 A at 230 V or 9.1 A at 460 V.
  • Strainer included Ships as the pump with pot, so the strainer housing is part of the assembly.
  • 6 in. suction, 4 in. discharge Large port sizes for commercial plumbing and high flow.
  • Premium efficient motor Pentair rates the EQ Series motor as premium efficient.
  • Model EQK750 Pentair part number 340033, the three phase 7.5 HP.
  • Freight shipment A pump of this size ships by freight carrier on a pallet.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V, 340033, SKU PAC-10-0033. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V, 340033
Pentair

EQ Series Commercial Pump 7.5 HP 208-230/460V, 340033

$6,72499
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

Pentair EQ Series EQ-750 7.5 HP single phase commercial pool pump, part 340032 Pentair EQ Series 7.5 HP EQ-750 Premium Efficiency Single Phase Pump, 340032$6,49699 Pentair EQ500 340031 5 HP three phase commercial pool pump with strainer pot Pentair EQ Series Commercial Pump 5 HP 208-230/460V 13.5-12.3/6.2 Amp, 340031$6,55699 Pentair EQ1000 commercial pool pump 10 HP 230V, part 340238 Pentair EQ1000 Commercial Pump 10 HP 230V, 340238$7,66499 Pentair EQK1500 15 HP three phase commercial pool pump with strainer pot, part 340035 Pentair EQK1500 Series 15 HP NEMA Premium Efficiency 3-Phase Pool Pump with Strainer, 208-230/460V, 340035$7,99599 Pentair 340605 EQ Series 7.5 HP three phase commercial pool pump with strainer Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V 19.9-17.8/8.9 Amp, 340605$6,94299 Pentair 340604 EQ Series 5 HP commercial pool pump with strainer Pentair EQ Series Commercial Pump 5 HP 208-230/460V 13.4-12.2/6.1 Amp, 340604$6,89999 Speck Pumps Model 95-X single speed 7.5 HP three phase pool pump, IG273-1750F-000 Speck Pumps 95-X Single Speed Pool Pump, 7.5 HP 3 Phase, IG273-1750F-000$5,37400 Web Price Pentair 340030 EQ Series EQ-500 5 HP single phase commercial pool pump with strainer Pentair EQ Series EQ-500 5 HP Premium Efficiency Single Phase Pump, 340030$6,74799 Pentair 340034 EQ Series EQ1000 10 HP three phase commercial pump with strainer pot Pentair EQ Series Commercial Pump 10 HP 208-230/460V, 340034$7,47899 Sta-Rite CSP Series CSPHK3-142 7.5 HP three phase cast iron pool pump without strainer Pentair Sta-Rite CSP Series 7.5 HP Three Phase Cast Iron Pool Pump without Strainer, 230-460V, CSPHK3-142$5,10199
Pentair 022035 WhisperFloXF VS 5HP variable speed commercial pool pump Pentair WhisperFloXF 5HP Variable Speed Pool Pump, 208-230/277-460V 1-Phase / 208-460V 3-Phase, 022035$3,22299 Pentair WhisperFlo XF 5HP three phase pool pump, part 022019 Pentair WhisperFlo XF 5HP 3PH Pump, 022019$3,01799 Hayward W3SP3206VSP TriStar VS 950 2.7 HP variable speed pool pump, front view Hayward TriStar VS 950 Variable Speed Pool Pump, 2.7 HP 115V-230V, W3SP3206VSP$2,69900 Web Price Pentair IntelliFlo VS+SVRS variable speed pool pump, part 011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, 011057$2,57199 Pentair IntelliFloXF 022056 variable speed and flow pool pump, 3 HP, 230V Pentair IntelliFloXF VSF Variable Speed and Flow Pool Pump, 3 HP Max, 3.95 THP, 230V, 022056$2,21699 Hayward W3SP3202VSP TriStar VS 1.85 HP variable speed pool pump Hayward TriStar VS Variable Speed Pool Pump, 1.85 HP 230V, Single Phase, W3SP3202VSP$2,19900 Web Price AquaStar PLP300S 3 HP PipeLine variable speed pool pump with WiFi control AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control, PLP300S$1,85000 Web Price Pentair WhisperFlo WFK-12 3 HP three phase pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 HP Full Rated, 3 Phase, 208/230/460V, WFK-12, 011644$1,84999 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Hayward W3VSP23420 MaxFlo VS 420 variable speed pump with Omnix control Hayward MaxFlo VS 420 Variable Speed Pump with Omnix, W3VSP23420$1,79900 Web Price

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair EQK750 is a 7.5 HP commercial pool pump from the EQ Series, supplied with its strainer pot. Pentair part number 340033.

Electrical

The motor is three phase and premium efficient, wired for 208-230 V or 460 V. Full load current is 20.4 A at 208 V, 18.2 A at 230 V and 9.1 A at 460 V.

Plumbing

Suction is 6 in. and discharge is 4 in., the port sizes commercial pool plumbing calls for at this flow rate. The pump ships by freight on a pallet.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Pentair
Manufacturer part number 340033
Model EQK750
UPC 788379690427
Type Commercial pool pump, single speed, self-priming, with strainer pot
Horsepower 7.5 HP
Service factor 1.15
Voltage 208-230 V or 460 V
Phase Three phase, 60 Hz
Amp draw Full load 20.4 A at 208 V, 18.2 A at 230 V, 9.1 A at 460 V
Service factor amps 24.0 A at 208 V, 21.0 A at 230 V, 10.5 A at 460 V
Overload protection Not built in: a three phase EQ motor needs an external starter, by Pentair
Speed Single speed, 3,450 RPM
Flow at 50 ft of head About 425 GPM, read from Pentair's three phase curve
Water connections 6 in suction at the strainer pot and 4 in discharge, bolted flanges for ANSI class 150; flanges sold separately
Strainer Included: Pentair 340013 hair and lint strainer pot, clear lid with Cam and Ramp clamp
Motor Open drip-proof (ODP), premium efficient, NEMA JM frame with C flange, Class F insulation, continuous duty
Construction All plastic wet end: PPO resin volute, motor adapter and closed impeller, close coupled to the motor; 303 stainless steel shaft
Priming Self-priming; Pentair rates it to prime from 10 ft above the water in 45 minutes or less
Operating limits Water to 104 F and up to 50 psi at the pump, air around it to 104 F; pressure test with the strainer pot to 20 psi at most
Dimensions 41.56 in long overall, 19 in wide and 21.5 in high at the strainer pot
Unit weight 116 lb with the strainer pot, 87 lb without
Variable frequency drive Compatible with Pentair Acu Drive XS
Replaces Pentair C Series and CSP pumps, as a drop-in replacement, by Pentair
Warranty 1 year, parts only, by Pentair for products bought online
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What does the K mean in the Pentair EQK750?
Three phase. Pentair's parts list explains that an EQ Series model with a K is three phase and one without it is single phase. So this pump, 340033, is the EQK750 for 208-230 V or 460 V three phase service, and the EQ750, part number 340032, is Pentair's 7.5 HP single phase pump for 230 V.
Does a Pentair EQK750 need a motor starter?
Yes. Pentair's manual says its three phase EQ motors have no internal thermal protector, so each needs an external protective device, usually a starter, sized to the motor nameplate. A wrongly sized starter can burn out the motor or trip over and over. Pentair also asks for the rotation to be checked on every three phase pump: power it for one second and watch the motor coast down against the arrow on the pump.
What flanges and gaskets does the Pentair EQK750 take?
ANSI class 150 plastic flanges with 1/8 inch thick, full face class 150 gaskets: 6 inch at the strainer pot's suction and 4 inch at the discharge. The flanges are not included. Pentair sells them as kits with a gasket and stainless hardware, 357263 for the 6 inch side and 357262 for the 4 inch. Its manual gives 20 ft-lb for the flange bolts and rules out a 90 degree elbow fitted straight onto the inlet or outlet.
How much does the Pentair EQK750 weigh, and how big is it?
116 lb with its strainer pot, or 87 lb without, by Pentair's manual. With the pot it measures 41.56 inches long overall, and the pot is 21.5 inches high and 19 inches wide. Pentair's data sheet asks for at least 12 inches of clear space behind the motor so it can be serviced.
