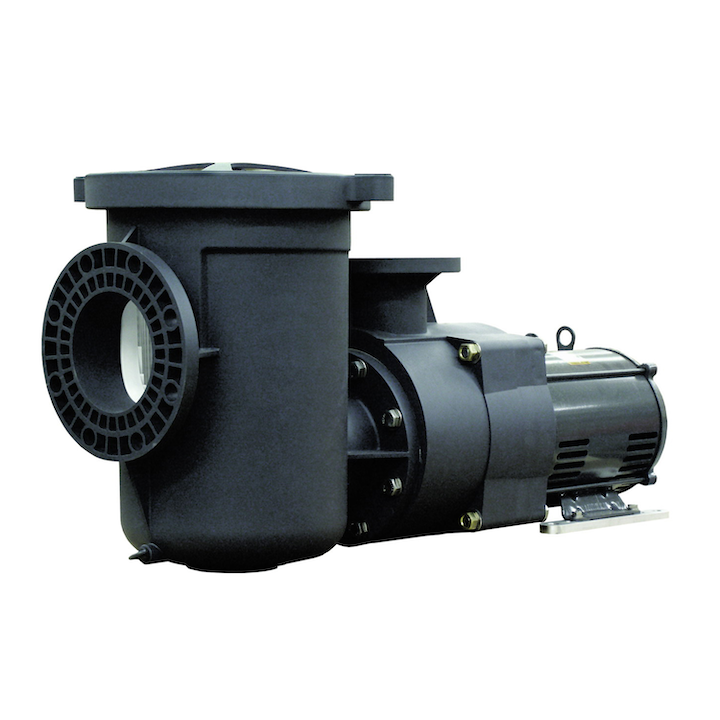

Pentair EQK1500 15 HP three phase commercial pool pump with strainer pot, part 340035Pentair EQK1500 Series 15 HP NEMA Premium Efficiency 3-Phase Pool Pump with Strainer, 208-230/460V, 340035 In stock$7,99599
Pentair EQK1500 15 HP three phase commercial pool pump with strainer pot, part 340035
Shop all Pentair

Pentair EQK1500 Series 15 HP NEMA Premium Efficiency 3-Phase Pool Pump with Strainer, 208-230/460V, 340035

Ask a questionMPN 340035
$7,99599
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 15 HP three phase 208-230/460V, drawing 40.0, 38.0 or 18.8 A at full load, on a NEMA Premium efficiency motor.
  • Strainer pot included Part number 340035 comes with the strainer pot, so hair and lint are caught before the impeller.
  • Closed impeller Close coupled with a closed impeller for long life and quiet, stable flow.
  • Large flanged ports 6 in. suction and 4 in. discharge for commercial flow rates.
  • VFD ready Compatible with the Pentair Acu Drive XS variable frequency drive for variable flow operation.
  • Drop-in replacement Self-priming, and a drop-in replacement for Pentair C Series and CSP pumps.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair EQK1500 Series 15 HP NEMA Premium Efficiency 3-Phase Pool Pump with Strainer, 208-230/460V, 340035, SKU PAC-10-0035. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair EQK1500 Series 15 HP NEMA Premium Efficiency 3-Phase Pool Pump with Strainer, 208-230/460V, 340035
Pentair

EQK1500 Series 15 HP NEMA Premium Efficiency 3-Phase Pool Pump with Strainer, 208-230/460V, 340035

$7,99599
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

Pentair EQ Series EQ750 7.5 HP three phase commercial pump with strainer, part 340033 Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V, 340033$6,72499 Pentair EQ Series EQ-750 7.5 HP single phase commercial pool pump, part 340032 Pentair EQ Series 7.5 HP EQ-750 Premium Efficiency Single Phase Pump, 340032$6,49699 Pentair EQ500 340031 5 HP three phase commercial pool pump with strainer pot Pentair EQ Series Commercial Pump 5 HP 208-230/460V 13.5-12.3/6.2 Amp, 340031$6,55699 Pentair EQ1000 commercial pool pump 10 HP 230V, part 340238 Pentair EQ1000 Commercial Pump 10 HP 230V, 340238$7,66499 Pentair 340605 EQ Series 7.5 HP three phase commercial pool pump with strainer Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V 19.9-17.8/8.9 Amp, 340605$6,94299 Pentair 340604 EQ Series 5 HP commercial pool pump with strainer Pentair EQ Series Commercial Pump 5 HP 208-230/460V 13.4-12.2/6.1 Amp, 340604$6,89999 Speck Pumps Model 95-X single speed 7.5 HP three phase pool pump, IG273-1750F-000 Speck Pumps 95-X Single Speed Pool Pump, 7.5 HP 3 Phase, IG273-1750F-000$5,37400 Web Price Pentair 340030 EQ Series EQ-500 5 HP single phase commercial pool pump with strainer Pentair EQ Series EQ-500 5 HP Premium Efficiency Single Phase Pump, 340030$6,74799 Pentair 340034 EQ Series EQ1000 10 HP three phase commercial pump with strainer pot Pentair EQ Series Commercial Pump 10 HP 208-230/460V, 340034$7,47899 Sta-Rite CSP Series CSPHK3-142 7.5 HP three phase cast iron pool pump without strainer Pentair Sta-Rite CSP Series 7.5 HP Three Phase Cast Iron Pool Pump without Strainer, 230-460V, CSPHK3-142$5,10199
Pentair 022035 WhisperFloXF VS 5HP variable speed commercial pool pump Pentair WhisperFloXF 5HP Variable Speed Pool Pump, 208-230/277-460V 1-Phase / 208-460V 3-Phase, 022035$3,22299 Pentair WhisperFlo XF 5HP three phase pool pump, part 022019 Pentair WhisperFlo XF 5HP 3PH Pump, 022019$3,01799 Hayward W3SP3206VSP TriStar VS 950 2.7 HP variable speed pool pump, front view Hayward TriStar VS 950 Variable Speed Pool Pump, 2.7 HP 115V-230V, W3SP3206VSP$2,69900 Web Price Pentair IntelliFlo VS+SVRS variable speed pool pump, part 011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, 011057$2,57199 Pentair IntelliFloXF 022056 variable speed and flow pool pump, 3 HP, 230V Pentair IntelliFloXF VSF Variable Speed and Flow Pool Pump, 3 HP Max, 3.95 THP, 230V, 022056$2,21699 Hayward W3SP3202VSP TriStar VS 1.85 HP variable speed pool pump Hayward TriStar VS Variable Speed Pool Pump, 1.85 HP 230V, Single Phase, W3SP3202VSP$2,19900 Web Price AquaStar PLP300S 3 HP PipeLine variable speed pool pump with WiFi control AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control, PLP300S$1,85000 Web Price Pentair WhisperFlo WFK-12 3 HP three phase pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 HP Full Rated, 3 Phase, 208/230/460V, WFK-12, 011644$1,84999 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Hayward W3VSP23420 MaxFlo VS 420 variable speed pump with Omnix control Hayward MaxFlo VS 420 Variable Speed Pump with Omnix, W3VSP23420$1,79900 Web Price

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair EQK1500 is a 15 HP three phase commercial pool pump from the EQ Series, supplied with its strainer pot. It runs on 208-230 or 460 V, drawing 40.0 A at 208 V, 38.0 A at 230 V or 18.8 A at 460 V at full load, on a NEMA Premium efficiency motor. Part number 340035.

Built for continuous commercial duty

The pump is close coupled with a closed impeller, a combination chosen for durability and quiet, stable flow at high volume. Suction is 6 in. and discharge is 4 in., flanged, and the strainer pot keeps hair and lint out of the impeller. It is self-priming.

Drop-in and drive ready

The EQ Series is a drop-in replacement for the Pentair C Series pump, so an aging C Series can be swapped without re-plumbing the pad. It is also compatible with the Pentair Acu Drive XS variable frequency drive, which lets an operator match flow to demand rather than run at full speed at all times.

Delivery

At this size the pump ships by freight. Six inch and four inch flange kits with gaskets and stainless hardware are sold separately.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Pentair
Manufacturer part number 340035
Model EQK1500
Series EQ Series, EQK1500
UPC 788379690441
Type Commercial pool pump, single speed, self-priming, with strainer pot
Horsepower 15 HP
Service factor 1.15
Voltage 208-230 V or 460 V
Phase Three phase, 60 Hz
Amp draw Full load 40.0 A at 208 V, 38.0 A at 230 V, 18.8 A at 460 V
Service factor amps 46.0 A at 208 V, 43.0 A at 230 V, 21.3 A at 460 V
Overload protection Not built in: a three phase EQ motor needs an external starter, by Pentair
Speed Single speed, 3,450 RPM
Flow at 50 ft of head About 725 GPM, read from Pentair's three phase curve
Water connections 6 in suction at the strainer pot and 4 in discharge, bolted flanges for ANSI class 150; flanges sold separately
Strainer Included: Pentair 340013 hair and lint strainer pot, clear lid with Cam and Ramp clamp
Motor Open drip-proof (ODP), premium efficient, NEMA JM frame with C flange, Class F insulation, continuous duty
Construction All plastic wet end: PPO resin volute, motor adapter and closed impeller, close coupled to the motor; 303 stainless steel shaft
Priming Self-priming; Pentair rates it to prime from 10 ft above the water in 45 minutes or less
Operating limits Water to 104 F and up to 50 psi at the pump, air around it to 104 F; pressure test with the strainer pot to 20 psi at most
Dimensions 43.29 in long overall, 19 in wide and 21.5 in high at the strainer pot
Unit weight 161 lb with the strainer pot, 132 lb without
Variable frequency drive Compatible with Pentair Acu Drive XS
Replaces Pentair C Series and CSP pumps, as a drop-in replacement, by Pentair
Warranty 1 year, parts only, by Pentair for products bought online
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

How many GPM does a 15 HP Pentair EQK1500 move at 50 feet of head?
About 725 GPM, read from the three phase curve in Pentair's EQ Series manual, at 60 Hz and 3,450 RPM. Flow falls as head rises, so work out the total dynamic head of your own system first; Pentair's advice is to pick a pump that will run near the middle of its curve, where it is most efficient.
Can the Pentair EQK1500 run on a variable frequency drive?
Yes. Pentair lists the EQ Series as compatible with its Acu Drive XS variable frequency drive, and its data sheet calls the pump a good match for one. Pentair warrants the Acu Drive XS for one year in commercial installations. The three phase motor still needs protection sized to its nameplate.
When should the strainer basket on a Pentair EQK1500 be cleaned?
When it is about a quarter blocked, by Pentair's manual; check it through the clear lid while the pump runs. To clean it, switch off the power, close the valves if needed, and take out the strainer pot's drain plug so the pressure equalizes before the locking ring comes off. Put the ring back hand tight only.
How long is Pentair's warranty on an EQK1500 bought online?
One year, parts only, from the date of purchase. Pentair's warranty terms give that to every product bought on the internet, its authorized online resellers included. Pentair also gives one year to products installed at a commercial facility, which it defines as anything other than a single family home, and its three year bundle warranty applies to neither commercial installations nor online purchases.
Ask your own question
