Product details

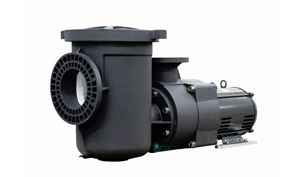

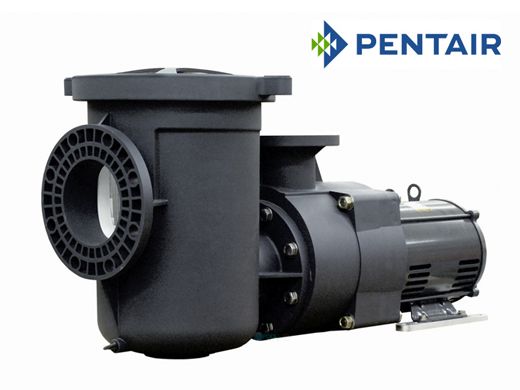

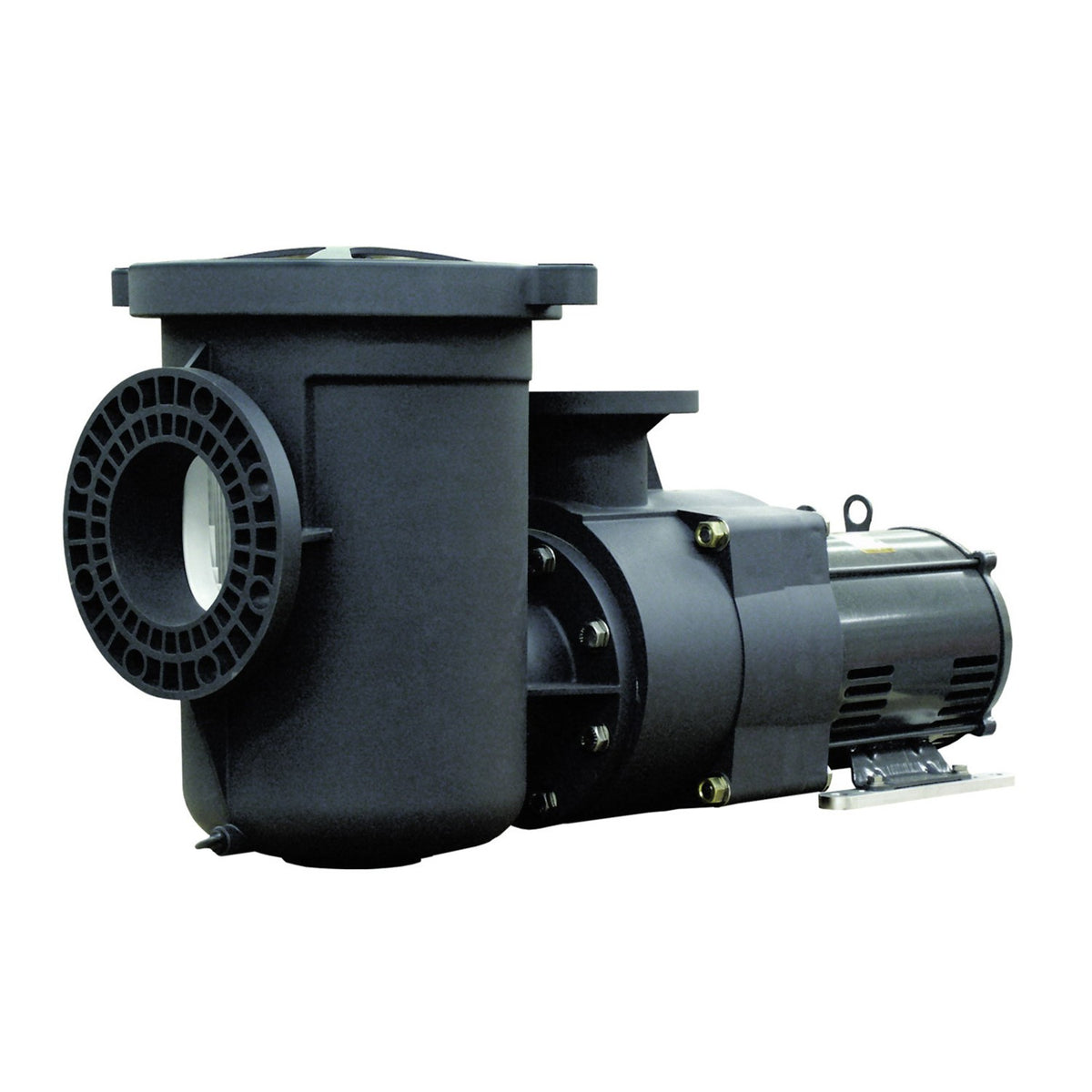

The Pentair 340034 is the EQK1000, the 10 horsepower three phase model in the EQ Series of premium efficient commercial pumps. It is supplied with the strainer pot, so the basket housing that catches debris ahead of the impeller comes as part of the unit.

Power requirements

This is a three phase pump for a 208-230/460 V supply. Current draw is 27/26.2 A on the low voltage connection and 13.1 A at 460 V. Confirm the service at the site before ordering, because three phase power is a commercial supply and the pump cannot be run from a standard residential panel.

Where it belongs

Commercial pools, where turnover requirements are high and the pump runs most of the day. On a duty cycle like that, a premium efficient motor is the difference between a reasonable power bill and an unreasonable one.

Delivery and installation

The pump ships by freight. Plan for the installation to be done by a licensed electrician and a pool professional, as the wiring, mounting and plumbing all need to suit a pump of this size.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

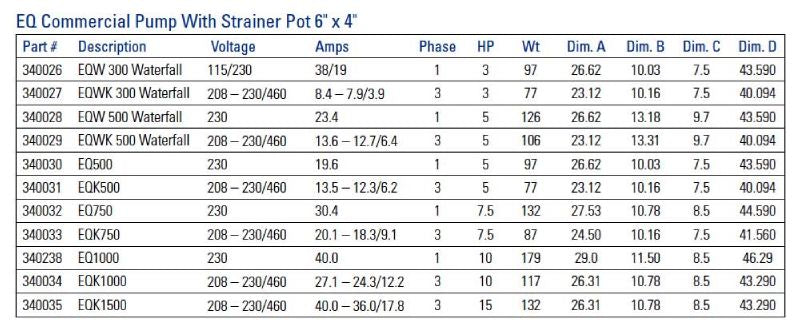

Specifications
Brand Pentair
Manufacturer part number 340034
Model EQK1000
Series EQ Series
UPC 788379690434
Type Commercial pool pump, single speed, self-priming, with strainer pot
Horsepower 10 HP
Service factor 1.15
Voltage 208-230 V or 460 V
Phase Three phase, 60 Hz
Amp draw Full load 27.0 A at 208 V, 26.2 A at 230 V, 13.1 A at 460 V
Service factor amps 31.0 A at 208 V, 29.4 A at 230 V, 14.7 A at 460 V
Overload protection Not built in: a three phase EQ motor needs an external starter, by Pentair
Speed Single speed, 3,450 RPM

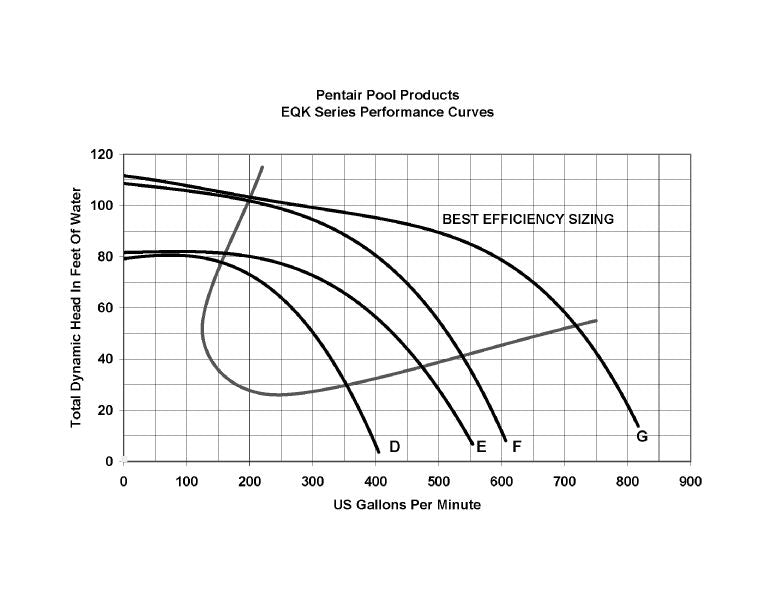

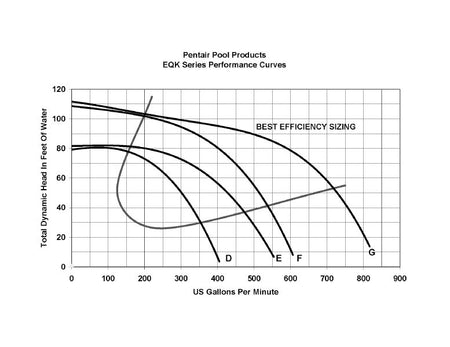

Flow at 50 ft of head About 515 GPM, read from Pentair's three phase curve
Water connections 6 in suction at the strainer pot and 4 in discharge, bolted flanges for ANSI class 150; flanges sold separately
Strainer Included: Pentair 340013 hair and lint strainer pot, clear lid with Cam and Ramp clamp
Motor Open drip-proof (ODP), premium efficient, NEMA JM frame with C flange, Class F insulation, continuous duty
Construction All plastic wet end: PPO resin volute, motor adapter and closed impeller, close coupled to the motor; 303 stainless steel shaft
Priming Self-priming; Pentair rates it to prime from 10 ft above the water in 45 minutes or less
Operating limits Water to 104 F and up to 50 psi at the pump, air around it to 104 F; pressure test with the strainer pot to 20 psi at most

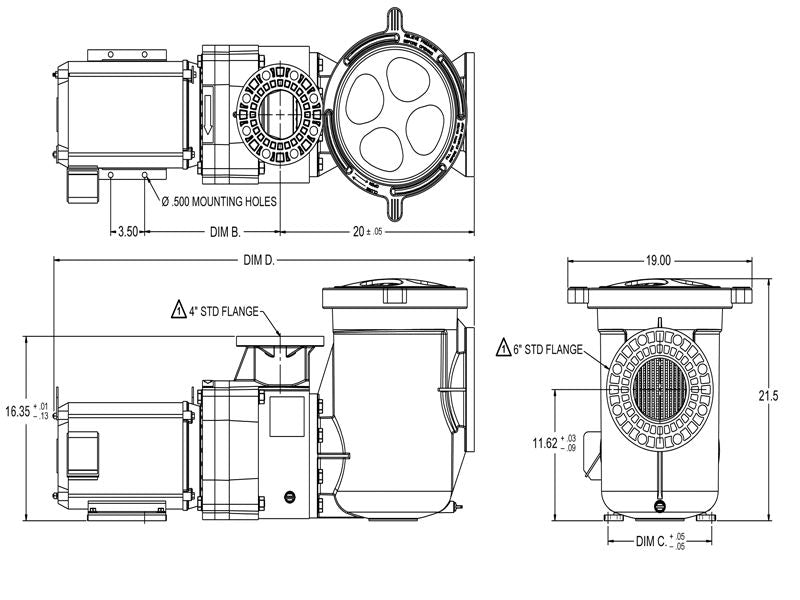

Dimensions 43.29 in long overall, 19 in wide and 21.5 in high at the strainer pot
Unit weight 146 lb with the strainer pot, 117 lb without
Variable frequency drive Compatible with Pentair Acu Drive XS
Replaces Pentair C Series and CSP pumps, as a drop-in replacement, by Pentair
Warranty 1 year, parts only, by Pentair for products bought online
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is the Pentair 340034 an EQ1000 or an EQK1000?
An EQK1000. In Pentair's EQ Series the K marks a three phase model, and 340034 is the 10 HP three phase pump with the strainer pot, for 208-230 V or 460 V. Pentair's EQ1000 is a different pump: the 10 HP single phase model on 230 V, part number 340238 with the pot.
Will a Pentair EQK1000 replace a Pentair C Series pump?
Pentair lists the EQ Series as a drop-in replacement for its C Series and CSP pumps. Before ordering, match horsepower, phase and voltage to the nameplate on the pump coming out; this one is 10 HP, three phase, 208-230 V or 460 V. With the strainer pot it is 43.29 inches long overall and weighs 146 lb.
How much flow does the Pentair EQK1000 give at 50 feet of head?
About 515 GPM, read from the three phase curve in Pentair's EQ Series manual, at 60 Hz and 3,450 RPM. The same curves put the EQK750 at about 425 GPM and the EQK1500 at about 725 at that head. Flow falls as head rises, so work out the total dynamic head of your own system first; Pentair's advice is to pick a pump that will run near the middle of its curve, where it is most efficient.
Is a Pentair EQK1000 bought online covered by a warranty?
One year, parts only, from the date of purchase. Pentair's warranty terms give that to every product bought on the internet, its authorized online resellers included. Pentair also gives one year to products installed at a commercial facility, which it defines as anything other than a single family home, and its three year bundle warranty applies to neither commercial installations nor online purchases.
