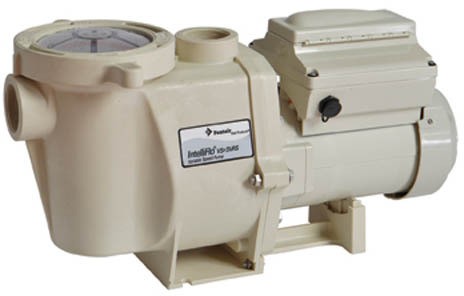

Pentair IntelliFlo VS+SVRS variable speed pool pump, part 011057Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, 011057 In stock$2,57199
Pentair IntelliFlo VS+SVRS variable speed pool pump, part 011057
Shop all Pentair

Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, 011057

Ask a questionMPN 011057
$2,57199
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Variable speed Run the pump only as fast as the job needs, which is where the energy saving on a pool pump comes from.
  • Integrated SVRS The safety vacuum release system is built into the pump, not added as a separate device.
  • 3.95 THP, 3.2 kW The full size IntelliFlo motor.
  • 230V Wired for a 230 volt supply.
  • 2 inch plumbing Suction and discharge take 2 inch pipe.
  • Genuine Pentair The factory IntelliFlo VS+SVRS, part 011057, in almond.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, 011057, SKU PUR-10-1019. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, 011057
Pentair

IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, 011057

$2,57199
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair Rubber Impeller Washer Gasket, 075713
Pentair

Rubber Impeller Washer Gasket, 075713

$599
Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair SuperFlo VST 342002 variable speed pool pump, TradeGrade Pentair SuperFlo VST Pool Pump, TradeGrade, 342002$1,29424 Hayward W3SP3206VSP TriStar VS 950 2.7 HP variable speed pool pump, front view Hayward TriStar VS 950 Variable Speed Pool Pump, 2.7 HP 115V-230V, W3SP3206VSP$2,69900 Web Price Pentair IntelliFloXF 022056 variable speed and flow pool pump, 3 HP, 230V Pentair IntelliFloXF VSF Variable Speed and Flow Pool Pump, 3 HP Max, 3.95 THP, 230V, 022056$2,21699 Waterway PD-165 Power Defender variable speed in ground pool pump, 1.65 HP 230V Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165$1,29399 Hayward W3SP3202VSP TriStar VS 1.85 HP variable speed pool pump Hayward TriStar VS Variable Speed Pool Pump, 1.85 HP 230V, Single Phase, W3SP3202VSP$2,19900 Web Price Pentair WhisperFlo XF 5HP three phase pool pump, part 022019 Pentair WhisperFlo XF 5HP 3PH Pump, 022019$3,01799 Pentair 011533 WhisperFlo VST 2.6 THP variable speed pool pump Pentair WhisperFlo VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, TradeGrade, 011533$1,76699 Pentair 011066 IntelliFlo3 VSF 1.5HP variable speed and flow pool pump Pentair IntelliFlo3 VSF Variable Speed and Flow Pool Pump with Relay Board, 1.5HP 115/208-230V, 011066$1,47799
Moov MP165AIDV Ai Inverter variable speed pool pump with Wi-Fi Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.65THP, MP165AIDV$1,29900 Web Price AquaStar PLP300S 3 HP PipeLine variable speed pool pump with WiFi control AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control, PLP300S$1,85000 Web Price Waterway PD-270 Power Defender 2.7 HP 230V variable speed pool pump Waterway 2.7 HP 230V Power Defender VSP Champion Pump, PD-270$1,52899 Pentair 022035 WhisperFloXF VS 5HP variable speed commercial pool pump Pentair WhisperFloXF 5HP Variable Speed Pool Pump, 208-230/277-460V 1-Phase / 208-460V 3-Phase, 022035$3,35899 Pentair 011642 WhisperFlo WFK-6 three phase 1.5HP pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 Phase, 208/230/460V, 1.5HP Full Rated, 011642$1,36399 Hayward W3SP2303VSP MaxFlo VS 1.65 HP 230V variable speed pool pump Hayward MaxFlo VS 1.65 HP 230V Variable Speed Pool Pump, W3SP2303VSP$1,74900 Web Price Hayward W3VSP23420 MaxFlo VS 420 variable speed pump with Omnix control Hayward MaxFlo VS 420 Variable Speed Pump with Omnix, W3VSP23420$1,79900 Web Price Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001 Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001$1,28799 Pentair 022017 WhisperFloXF 2 HP high performance pool pump Pentair 022017 WhisperFloXF High Performance Pump 2 HP 208-230/460V$1,80599 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair IntelliFlo VS+SVRS, part 011057, is a variable speed pool pump with the safety vacuum release system built in. It is a 3.2 kW, 3.95 THP motor on 230V with 2 inch plumbing connections.

What SVRS adds

The safety vacuum release system watches for a suction blockage and stops the pump if it finds one. Because it is integrated, there is no separate device to wire, mount and maintain alongside the pump.

Why variable speed

A pool needs full flow only for a short part of the day, for vacuuming, heating or running a feature. The rest of the time it needs turnover, which a low speed handles. Power draw drops far faster than speed does, so the running cost of a pump on a low turnover speed is a fraction of the same pump at full speed.

Installation

It is wired for 230V and plumbed in 2 inch. Confirm the supply and the pipe size at the pad before ordering, since neither is trivial to change afterwards.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

Parts for this pump

This is the VS+SVRS, after October 2020 in Pentair's parts list.

Pentair IntelliFlo Pump parts diagram34 numbered parts, with the ones for the VS+SVRS, after October 2020 already picked.Open the diagram

Bought most for this pump

Specifications
Brand Pentair
Manufacturer part number 011057
Model IntelliFlo VS+SVRS
E-commerce part number EC-011057, the number Pentair sells the IntelliFlo VS+SVRS under online
Type Variable speed pool pump with built-in safety vacuum release (SVRS), self priming
Speed Variable, 1,100 to 3,450 RPM; presets of 1,100, 1,500, 2,350 and 3,110 RPM; up to eight programmed speeds
Total horsepower 3.95 THP
Service factor 1.0
Weighted energy factor (WEF) 6.9, by Pentair and DOE's certification record
Voltage 230 VAC, 50 or 60 Hz
Phase Single phase
Full load amps 16 A
Maximum input 3,200 W
Circuit protection Two pole 20 A device at the panel, by Pentair's manual
Unions Not included; Pentair's union kit 357603 holds the pair for one pump
Flow at 50 ft of head About 148 GPM at 3,450 RPM, read from the performance curve in Pentair's manual
Motor Permanent magnet synchronous, totally enclosed fan cooled (TEFC), 56 square flange, 3.2 kW
Control Onboard keypad; RS-485 link to Pentair IntelliTouch, EasyTouch, SunTouch and IntelliComm controls
Safety Built-in safety vacuum release (SVRS) to ASME A112.19.17; Pentair says it cannot be turned off
Certifications ENERGY STAR certified, by Pentair
Dimensions 23.4 in long, 13.1 in high, by Pentair's drawing
Shipping weight 55 lb, Pentair's carton weight
Pipe size 2 inch
Color Almond
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between 011057 and EC-011057?
Both are Pentair's IntelliFlo VS+SVRS. Pentair sells 011057 through dealers and pool stores and keeps EC- numbers such as EC-011057 for online sale. DOE's certification database lists both at 3.95 total horsepower and a weighted energy factor of 6.9. This listing is 011057.
Does the IntelliFlo VS+SVRS 011057 come with unions?
No. Pentair's parts list for the IntelliFlo VS+SVRS marks its union kit, part number 357603, as not included with the pump. That kit holds both unions for one pump, so order it alongside if the pad needs new ones.
How many GPM does an IntelliFlo VS+SVRS move at 50 feet of head?
About 148 GPM at its 3,450 RPM maximum, read from the performance curve in Pentair's manual. At the 3,110 RPM preset the same chart gives roughly 114 GPM at 50 feet, and the 2,350, 1,500 and 1,100 RPM presets never reach 50 feet of head at all.
What are the preset speeds on an IntelliFlo VS+SVRS?
Four buttons hold 1,100, 1,500, 2,350 and 3,110 RPM out of the box, and the pump will run at any speed from 1,100 to 3,450 RPM, up to eight programmed speeds in all. Pentair lets the minimum be set between 1,100 and 1,700 RPM and the maximum between 1,900 and 3,450 RPM.
