Hayward HAXHXA1403 heat exchanger assembly for H400 H-Series pool heatersHayward Heat Exchanger Assembly, H400, HAXHXA1403 In stock$1,81099
Hayward HAXHXA1403 heat exchanger assembly for H400 H-Series pool heaters
Shop all Hayward

Hayward Heat Exchanger Assembly, H400, HAXHXA1403

Ask a questionMPN HAXHXA1403
$1,81099
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete replacement kit Contains all the parts needed to carry out the swap, not the bare bundle alone.
  • Three heater styles Fits the millivolt, ED1 and ED2 versions of the H-Series in the H400 size.
  • Cupro nickel The exchanger is protected with cupro nickel, a resilient material chosen for durability.
  • Single header V baffle The patented design that heats quickly and leaves virtually no condensation.
  • Built for long life Fast heat transfer and low condensation are what keep the exchanger in service.
  • Genuine Hayward Factory part HAXHXA1403 rather than an aftermarket bundle.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Heat Exchanger Assembly, H400, HAXHXA1403, SKU HAY-151-1403. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Heat Exchanger Assembly, H400, HAXHXA1403
Hayward

Heat Exchanger Assembly, H400, HAXHXA1403

$1,81099
Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250
Hayward

Heat Exchanger Assembly for H250FD, FDXLHXA1250

$1,28299
Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003
Hayward

Natural Gas Valve Kit, FD Series, FDXLGSV0003

$41899
Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Hayward

H-Series Bezel & Keypad Assembly, FDXLBKP1930

$12399
Hayward HDF400 Thermistor, FDXLTER1931
Hayward

HDF400 Thermistor, FDXLTER1931

$6199
Hayward Flame Sensor, Low NOx/Universal, IDXLFLS1930
Hayward

Flame Sensor, Low NOx/Universal, IDXLFLS1930

$9199
Hayward Front Header Assembly, FDXLFHA1930
Hayward

Front Header Assembly, FDXLFHA1930

$31599
Subtotal

Similar products

Other products people compare with this one.

Hayward FDXLHXA1400 heat exchanger assembly for the H400FD Universal H-Series heater Hayward Heat Exchanger Assembly for H400FD, FDXLHXA1400$1,60599 Hayward FDXLHXA1150 heat exchanger assembly for the H150FD heater Hayward Heat Exchanger Assembly for H150FD, FDXLHXA1150$1,24199 Hayward HAXHXA1153 H-Series heat exchanger assembly for 150,000 BTU pool heaters Hayward H-Series Heat Exchanger Assembly, 150,000 BTU, HAXHXA1153$1,35799 Hayward HAXCPA1932 H-Series ED2 control bezel assembly Hayward H-Series Control Bezel Assembly ED2, HAXCPA1932$69099 Hayward IDXLCPA1930 Low NOx control bezel assembly Hayward Low NOx Control Bezel Assembly, IDXLCPA1930$68899 Hayward IDXLFHA1930 Low NOx front header assembly Hayward Low NOx Front Header Assembly, IDXLFHA1930$45599 Hayward IDXL2BKP1930 bezel and touchpad assembly for Low NOx heaters, front view Hayward Bezel/Touchpad Assembly, Low NOx Heaters (2002 to Present), IDXL2BKP1930$32699 Hayward IDXLBKP1135 bezel and keypad assembly for the HS135 pool heater Hayward Bezel and Keypad Assembly for HS135 Heater, IDXLBKP1135$22299 Hayward FDXLBKP1932 blue bezel and keypad assembly with door Hayward Blue Bezel and Keypad Assembly with Door for Universal H-Series Low NOx Heaters, FDXLBKP1932$20999 Hayward HAXPLT1931 H-Series natural gas pilot assembly Hayward H-Series Natural Gas Pilot Assembly, HAXPLT1931$14899
Hayward H-Series Above Ground Heater Ignitor Assembly | IDXIGN1930 Hayward H-Series Above Ground Heater Ignitor Assembly | IDXIGN1930$12699 Hayward HAXPSA1930 water pressure switch assembly for H-Series heaters Hayward Water Pressure Switch Assembly, HAXPSA1930$9299 Hayward IDXL2BWR1931 LoNox IDL2 blower and control board kit Hayward LoNox IDL2 Blower/Control Board Kit, IDXL2BWR1931$64299 Hayward HAXGSV0001 H-Series natural gas millivolt valve Hayward H-Series Natural Gas Millivolt Valve, HAXGSV0001$55799 Hayward HAXGSV0003 H-Series ED1 propane millivolt gas valve Hayward H-Series ED1 Gas Valve, Propane, LP, Millivolt, HAXGSV0003$55399 Hayward HAXGSV0004 propane gas valve for H-Series pool heaters Hayward Propane Gas Valve, HAXGSV0004$50999 Hayward IDXMOD1930 ignition module for H-Series above ground pool heaters Hayward Ignition Module for H-Series Above Ground Heaters, IDXMOD1930$48499 Hayward IDXVAL1931 gas valve kit for H Series above ground pool heaters Hayward H Series Gas Valve Kit, IDXVAL1931$45099 Hayward FDXLICB1930 integrated control board for Universal H-Series FD heaters Hayward Control Board Kit, FD, FDXLICB1930$40799 Hayward Transformer Fuse Board | IDXL2FSB1930 Hayward Transformer Fuse Board | IDXL2FSB1930$35599

Product details

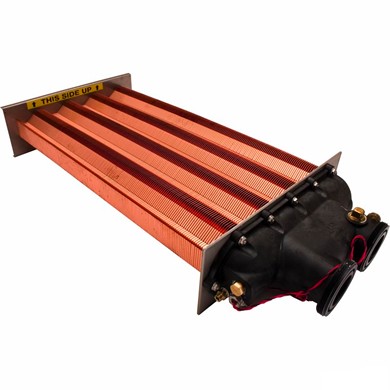

The Hayward HAXHXA1403 is the heat exchanger assembly for the H400 H-Series gas heater. It is supplied as a kit that contains the parts needed to complete the replacement, and it covers the millivolt, ED1 and ED2 versions of the heater.
