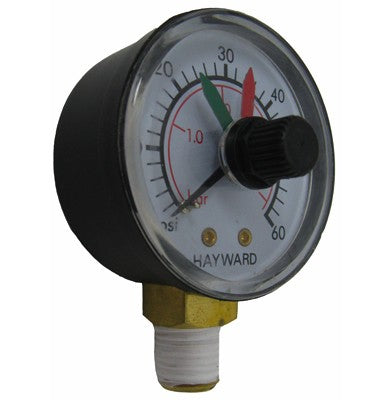

Hayward ECX271261 pool filter pressure gauge with dialHayward Pressure Gauge with Dial, ECX271261 In stock$3699
Hayward ECX271261 pool filter pressure gauge with dial
Shop all Hayward

Hayward Pressure Gauge with Dial, ECX271261

Ask a questionMPN ECX271261
$3699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward part Factory ECX271261 gauge rather than a hardware store substitute.
  • Dial face Reads filter pressure at a glance from the pad.
  • Tells you when to clean Filter service is driven by the rise above clean pressure, and without a working gauge that number is a guess.
  • Catches real problems A gauge that reads low points at a suction side restriction, not a dirty filter.
  • Fails quietly Gauges stick, fog or drift and keep showing a plausible number, so a stuck needle is easy to trust for too long.
  • Cheap part, expensive to skip Running blind on filter pressure is how pumps get starved and cartridges get ruined.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Pressure Gauge with Dial, ECX271261, SKU HAY-051-1871. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Pressure Gauge with Dial, ECX271261
Hayward

Pressure Gauge with Dial, ECX271261

$3699
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$899
Hayward Star Clear Plus Filter Head with Vent Valve C1200, CX1200B
Hayward

Star Clear Plus Filter Head with Vent Valve C1200, CX1200B

$24299
Hayward 1-1/2" Plug with O-Ring, SP1022C
Hayward

1-1/2" Plug with O-Ring, SP1022C

$599
Hayward Locking Knob (C751, C900, C1200 series), CX900G
Hayward

Locking Knob (C751, C900, C1200 series), CX900G

$6999
Hayward Bulkhead O-Ring (After 1996), SX360Z1
Hayward

Bulkhead O-Ring (After 1996), SX360Z1

$2099
Hayward C900 Filter Cartridge Element, 90 sq ft, CX900RE
Hayward

C900 Filter Cartridge Element, 90 sq ft, CX900RE

$12599
Subtotal

Similar products

Other products people compare with this one.

Hayward ECX27091 back mount pressure gauge for pool filters Hayward Back Mount Pressure Gauge, ECX27091$3799 Hayward ECX270861 bottom mount 1/4 inch pool filter pressure gauge, 0-60 PSI Hayward 1/4" Pressure Gauge, Bottom Mount, ECX270861$3699 Hayward ECX1322A air relief valve with o-ring for pool filters Hayward Air Relief Valve with O-Ring, ECX1322A$1899 Hayward DEX2400S air relief and gauge adapter assembly for pool filters Hayward Air Relief and Gauge Adapter Assembly, DEX2400S$4699 Hayward CX250Z14A Star Clear 1/2 inch drain plug with O-ring Hayward Star Clear 1/2 in. Drain Plug with O-Ring, CX250Z14A$1899 Hayward CX800Z4A StarClear auto air relief tube with screen Hayward StarClear Auto Air Relief Tube with Screen, CX800Z4A$2699 Hayward CX900DA knob accessory kit for Star-Clear cartridge filters Hayward Knob Accessory Kit, CX900DA$3399 Hayward CX900F filter head lid o-ring for Star Clear Plus cartridge filters Hayward Filter Head Lid O-Ring, CX900F$4399 Hayward CX250F Star-Clear filter head gasket Hayward OEM Star-Clear Filter Head Gasket, CX250F$4199 Hayward CX800F 9-1/2 inch filter head o-ring for Star-Clear II filters Hayward OEM O-Ring for Filter Head, CX800F$4999
Hayward CX900J E-ring for Star-Clear Plus cartridge filters Hayward E-Ring, Star-Clear Plus Filter, CX900J$2099 Hayward ECX4077B1 filter check valve for Star-Clear, Perflex, ASL and ReGenX filters Hayward Filter Check Valve, Star-Clear/Perflex/ASL/RegenX, ECX4077B1$3099 Hayward SX200Z4PAK2 valve and union o-ring, 2 pack Hayward OEM Valve Union O-Ring, 2 Pack, SX200Z4PAK2$1899 Hayward CX1100Z4 plastic air relief tube for C1100, C1200, S244S and S311 filters Hayward Plastic Air Relief Tube C1200/C1100/S244S/S311, CX1100Z4$2299 Hayward CX250G Star-Clear filter lock knob Hayward Star-Clear Filter Lock Knob, CX250G$3499 Hayward CX5000Z3 air relief tube for C5020 and C5025 cartridge filters Hayward CX5000Z3 Air Relief Tube for C5020/C5025 Filters$2599 Hayward DEX2400Z3A air relief valve stem o-ring set of 3 Hayward O-Ring for Air Relief Valve Stem, Set of 3, DEX2400Z3A$1899 Hayward CX120D filter lid o-ring for the Micro-Star cartridge filter Hayward O-Ring for Micro Star-Clear Filter Lid, CX120D$2399 Hayward CX4000Z3 air relief tube assembly for SwimClear and Super Star Clear cartridge filters Hayward Air Relief Tube for SwimClear and Super Star Clear Filters, CX4000Z3$2099 Hayward CX3000Z3 air relief tube assembly for cartridge filters Hayward Air Relief Tube, CX3000Z3$1899

Product details

The Hayward ECX271261 is the genuine pressure gauge with dial used on Hayward pool filters. It is catalogued with the Star Clear Plus cartridge filters, models C751, C900, C1200, C1750 and C1900.

Why the gauge matters

Filter pressure is the only instrument most pool systems have. Clean the filter, note the reading, and every service decision afterwards is made against that baseline. A rise of roughly 8 to 10 psi says the media is loaded. A reading that drops instead says the pump is being starved on the suction side, which is a different and more urgent problem.

How gauges fail

They almost never fail obviously. The needle sticks, the face fogs, or the calibration drifts, and the gauge keeps showing a number that looks reasonable. That is worse than no gauge, because the pool gets serviced on bad information. If the needle does not return to zero with the pump off, replace it.

Before you order

Check the thread and the position of the gauge port on your filter head. Hayward uses several gauges across its filter range, and this is the one listed for the Star Clear Plus cartridge line.

Specifications
Brand Hayward
Manufacturer part number ECX271261
UPC 610377809719
Type Pressure gauge with dial
Part type Pool filter part
Listed under Hayward Star Clear Plus cartridge filters, models C751, C900, C1200, C1750 and C1900
Shipping weight 0.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Is this a genuine Hayward gauge?
Yes. It is the Hayward OEM part, number ECX271261.
Which filters is it listed for?
It is catalogued with the Hayward Star Clear Plus cartridge filters, models C751, C900, C1200, C1750 and C1900. Check the port thread and the fitting on your filter head before ordering.
How do I know my gauge has failed?
A needle that never moves through a full cycle, sits below zero with the pump off, or has a fogged face has failed. Gauges rarely die outright, they just stop being right.
What pressure should my filter run at?
There is no universal number. Record the pressure with a clean filter, and clean it again when the reading climbs roughly 8 to 10 psi above that mark.
