Pentair Sand Dollar SD60 22 inch top mount sand filter with multiport valvePentair Sand Dollar SD60 Top Mount 22" Pool Sand Filter with 1-1/2" Multiport Valve, EC-145322 In stock$79099
Pentair Sand Dollar SD60 22 inch top mount sand filter with multiport valve
Shop all Pentair

Pentair Sand Dollar SD60 Top Mount 22" Pool Sand Filter with 1-1/2" Multiport Valve, EC-145322

Ask a questionMPN EC-145322
$79099
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete filter and valve Supplied as the SD60 tank with the 1-1/2 inch multiport valve, not the tank alone.
  • 22 inch tank The SD60 size in the Sand Dollar range.
  • Top mount valve The multiport sits on top of the tank, the arrangement most inground sand filters use.
  • Six position multiport A multiport valve handles filter, backwash, rinse, waste, recirculate and closed from one handle.
  • Almond finish This is the almond colored tank in the Sand Dollar line.
  • Genuine Pentair Pentair part EC-145322 from the Sand Dollar top mount range.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Sand Dollar SD60 Top Mount 22" Pool Sand Filter with 1-1/2" Multiport Valve, EC-145322, SKU PAC-05-0081. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Sand Dollar SD60 Top Mount 22" Pool Sand Filter with 1-1/2" Multiport Valve, EC-145322
Pentair

Sand Dollar SD60 Top Mount 22" Pool Sand Filter with 1-1/2" Multiport Valve, EC-145322

$79099
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5199
Pentair Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531
Pentair

Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531

$15499
Pentair Sand Filter Hose Kit 1.5 in. x 6 ft, 155151
Pentair

Sand Filter Hose Kit 1.5 in. x 6 ft, 155151

$6099
Pentair Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541
Pentair

Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541

$1199
Pentair 272505 Plastic Washer, 2 Required
Pentair

272505 Plastic Washer, 2 Required

$1099
Subtotal

Similar products

Other products people compare with this one.

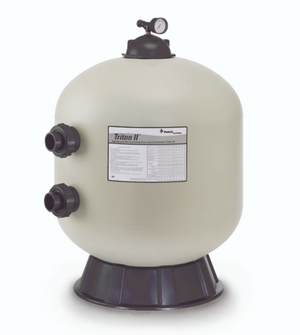

Hayward Pro Series 30 in. side mount sand filter tank Hayward Pro Series 30 in. Side Mount Sand Filter (Valve Not Included), W3S310S$1,50799 Pentair 140243 Triton II TR 140 36 inch side mount sand filter in almond Pentair 36" Triton II Side Mount Sand Filter TR 140, Almond, 140243$1,96399 Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,57299 Pentair Clean & Clear CC200 200 sq ft cartridge pool filter, EC-160318 Pentair Clean & Clear CC200 200 sq ft Cartridge Pool Filter, EC-160318$1,06900 Web Price Pentair FNS Plus 48 sq. ft. DE filter FNSP48, EC-180008 Pentair FNS Plus DE Filter, 48 Sq. Ft., FNSP48, EC-180008$1,37900 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Pentair Clean & Clear RP EC-160354 100 sq ft cartridge pool filter Pentair Clean & Clear RP 100 sq ft Cartridge Pool Filter, EC-160354$64900 Web Price Pentair FNS Plus FNSP60 60 sq ft vertical grid DE filter Pentair FNS Plus DE Filter 60 sq ft FNSP60, EC-180009$1,50900 Pentair Clean & Clear Plus 420 sq ft cartridge pool filter, EC-160301 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301$1,61900 Web Price Pentair Clean & Clear Plus 520 sq ft cartridge pool filter, EC-160332 Pentair Clean & Clear Plus 520 sq ft Cartridge Pool Filter, EC-160332$1,94299
Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Pentair Clean & Clear RP 200 sq ft cartridge filter, EC-160353 Pentair Clean & Clear RP Cartridge Filter, 200 sq ft, EC-160353$1,04900 Web Price AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,00000 Pentair Tagelus TA100D 30 in. top mount sand filter with 2 in. multiport valve, almond Pentair Tagelus TA100D Top Mount 30 in. Pool Sand Filter with 2 in. Multiport Valve, EC-145240$1,70699 Pentair Clean & Clear Plus 320 sq ft cartridge pool filter EC-160340 Pentair Clean & Clear Plus 320 sqft Cartridge Pool Filter, EC-160340$1,43900 Pentair EC-160317 Clean & Clear Plus 150 sq ft cartridge pool filter Pentair Clean & Clear Plus 150 sq ft Cartridge Pool Filter, EC-160317$90900 Web Price Pentair Sand Dollar SD80 26 in. sand filter with top mount 1-1/2 in. multiport valve Pentair Sand Dollar SD80 26" Pool Sand Filter with Top Mount 1-1/2" Multiport Valve, EC-145333$80599 Hayward W3DE6020 Pro-Grid 60 sq ft vertical grid DE pool filter, valve not included Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020$1,70900 Web Price Pentair Clean & Clear 100 sq ft cartridge pool filter EC-160316 Pentair Clean & Clear 100 sqft Cartridge Pool Filter, EC-160316$76900 Web Price Pentair FNS Plus 36 sq. ft. vertical grid DE filter FNSP36, part EC-180007 Pentair FNS Plus 36 sq. ft. DE Filter FNSP36, EC-180007$1,22900 Web Price

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair Sand Dollar SD60 is a top mount sand filter with a 22 inch almond tank, supplied with the 1-1/2 inch multiport valve. The Pentair part number is EC-145322.

How a top mount sand filter works

Water enters through the multiport valve at the top of the tank, travels down through the sand bed, and leaves through laterals at the base. Dirt is trapped in the top layer of the bed. When pressure climbs, you turn the multiport handle to backwash and the flow reverses, lifting the trapped dirt out to waste. The whole cycle runs from one handle, which is why the multiport is the piece people actually interact with.

Before installation

Filter sand is bought separately and loaded on site. Check that the 1-1/2 inch valve matches the plumbing at your pad, and set the filter on a level pad before you fill it, because a sand filter is very difficult to move once the media is in.

Specifications
Brand Pentair
Manufacturer part number EC-145322
UPC 788379500443
Series Sand Dollar
Model SD60
Type Top mount sand filter
Tank size 22 inch
Valve 1-1/2 inch multiport
Color Almond
Shipping weight 44 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Does the valve come with it?
Yes. This listing is the SD60 tank supplied with the 1-1/2 inch multiport valve.
Is the valve top mount or side mount?
Top mount. The multiport is fitted to the top of the tank rather than to the side.
Does it come with sand?
No. Filter media is bought separately and is loaded when the filter is installed.
What size is the plumbing?
The multiport valve supplied with this filter is the 1-1/2 inch version.
Ask your own question
