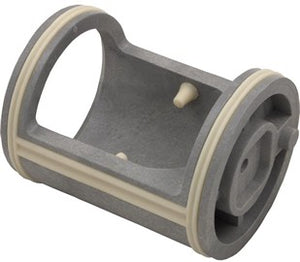

Pentair 230024 upper housing with speed control and diverter Pentair Upper Housing with Speed Control and Diverter, 230024$6699 Pentair 073484 2 in. Noryl diverter with seal Pentair 2 in. Noryl Diverter with Seal, 073484$4999 Pentair 270056 diverter assembly for 2 in. Compool 2 way and 3 way diverter valves Pentair Diverter, 2" 2/3 Way Compool Diverter Valves, 270056$7299 Pentair 150119Z 1-1/2 inch black three piece union kit for HiFlow valves Pentair 1.5" Black 3 Piece Union Kit for HiFlow Valves, 150119Z$7499 Pentair American Products 51008400 five spoke spider gasket, 6 inch outside diameter Pentair American Products 5 Spoke Spider Gasket, 6" OD, 51008400$3199 Pentair 270200Z inlet diverter for the FullFloXF backwash valve Pentair Inlet Diverter for FullFloXF Backwash Valve, 270200Z$6699 Pentair 270075 diverter valve kit assembly in black for Compool valves Pentair 1.50 in. to 2 in. Diverter Valve Kit Assembly, 270075$8599 Pentair 274416Z center diverter for the FullFloXF backwash valve Pentair Center Diverter for FullFloXF Backwash Valve, 274416Z$5599 Pentair 072431Z 2 inch positive diverter seal Pentair 2 Inch Positive Diverter Seal, 072431Z$3399 Hayward SPX0715D 2 in. Vari-Flo valve seat spider gasket, 6-1/2 in. Hayward 2" Valve Seat Gasket (6-1/2"), SPX0715D$4099
Aladdin APCKIT39 SP715 multiport valve repair kit, 2 inch, with spring Aladdin SP715 Multiport Valve Repair Kit 2" with Spring, APCKIT39$4899 Pentair 270190Z FullFloXF backwash valve end cap, top view Pentair FullFloXF Backwash Valve End Cap, 270190Z$4999 Sta-Rite 14965-0028 plug and gasket assembly for the 1-1/2 in. MultiPort valve Sta-Rite Plug and Gasket Assembly for 1-1/2" MultiPort Valve, 14965-0028$6399 Pentair 274417Z waste valve seal for the FullFloXF backwash valve Pentair FullFloXF Backwash Valve Waste Seal, 274417Z$5699 Sta-Rite 14971-SM20E12 spider gasket for 2 in. multiport valve, five spokes Sta-Rite 2" Valve Spider Gasket for MultiPort Valve, 14971-SM20E12$5399 Pentair 274426Z union adapter kit, 2-1/2 in. x 2 in. Pentair Union Adapter Kit 2-1/2" x 2", 274426Z$5299 Pentair 263042Z check valve flap kit Pentair Check Valve Flap Kit, 263042Z$4099 Pentair 272590Z union kit for 2 inch top mount multiport valve Pentair Genuine OEM Union Kit for 2" Top Mount MultiPort Valve, 272590Z$5499 Pentair 230022 impeller for low profile water valve Pentair 230022 Impeller for Low Profile Water Valve$2999 Sta-Rite 14930-0032 index plate kit with o-ring for WC212-134 slide valves Sta-Rite Index Plate Kit with O-Ring, 14930-0032$5199

Product details

The Pentair 272512Z is the HiFlow diverter with gasket for PacFab 262506 and 261130 top mount valves. It is the genuine Pentair part, also listed as 272512.

The gasket is part of the piece

The 4 spoke gasket is molded into the bottom of the rotor. It cannot be bought on its own and it cannot be peeled off and replaced, so when the sealing face is worn the diverter goes in as a unit. That is worth knowing before you go looking for a separate spider gasket for this valve.

Measurements

Rotor 5-11/16 in. with a total height of 4-3/4 in. and a shaft diameter of 1-1/8 in. The gasket measures 5-5/16 in. outside diameter with a 1-7/16 in. center hole. Spoke thickness and outside ring thickness are both 1/8 in. side to side.

When to replace it

A worn diverter face lets water bypass inside the valve, so the pool level drops while the handle is set to filter, or the returns run weak on a backwash. Compare the measurements above against the old rotor to confirm you have the right valve before ordering.

Specifications
Brand Pentair
Manufacturer part number 272512Z
Alternate part number 272512
UPC 788379674809
Type Diverter with molded gasket
Gasket 5-11/16 in. rotor, 4 spoke gasket, molded into the bottom
Gasket outside diameter 5-5/16 in.
Gasket center hole inside diameter 1-7/16 in.
Rotor shaft diameter 1-1/8 in.
Spoke thickness 1/8 in. side to side
Outside ring thickness 1/8 in. side to side
Rotor total height 4-3/4 in.
Fits Pentair PacFab 262506 and 261130 top mount valves
Shipping weight 0.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Can I buy just the gasket?
No. The 4 spoke gasket is molded into the bottom of this piece and is not available separately, which is why the diverter and gasket are sold as one part.
Which valves does it fit?
Pentair PacFab 262506 and 261130 top mount valves.
What are the measurements?
The rotor is 5-11/16 in. with a total height of 4-3/4 in. and a 1-1/8 in. shaft. The gasket is 5-5/16 in. outside diameter with a 1-7/16 in. center hole, and the spokes and outside ring are each 1/8 in. side to side.
Is 272512 the same as 272512Z?
Yes. Both numbers refer to the same Pentair diverter with gasket.
