CMP 27502-154-000 top mount multiport valve for Pentair sand filtersCMP Top Mount Multi-Port Valve 1.5" FPT Clamp Style for Pentair Sand Filters 262506, 27502-154-000 In stock$12799

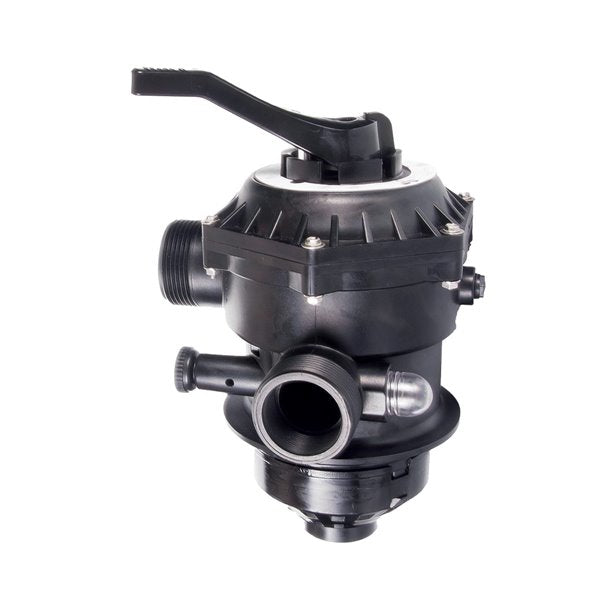

CMP 27502-154-000 top mount multiport valve for Pentair sand filters
Shop all CMP

CMP Top Mount Multi-Port Valve 1.5" FPT Clamp Style for Pentair Sand Filters 262506, 27502-154-000

Ask a questionMPN 27502-154-000
$12799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Replaces Pentair 262506 Listed as the replacement for that Pentair top mount valve.
  • Fits Tagelus D filters For the Pentair Tagelus D style sand filters TA40D, TA50D and TA60D.
  • One and a half inch FPT Female pipe thread ports at 1-1/2 in, matching the plumbing on those filters.
  • Clamp style mounting Uses the clamp mounting arrangement rather than a bolted flange.
  • Top mount configuration Sits on top of the sand tank, which is where these filters take their valve.
  • Complete valve Supplied as the multiport valve, so a seized or leaking original comes off and this goes on.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP Top Mount Multi-Port Valve 1.5" FPT Clamp Style for Pentair Sand Filters 262506, 27502-154-000, SKU CMP-27502-154-000. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP Top Mount Multi-Port Valve 1.5" FPT Clamp Style for Pentair Sand Filters 262506, 27502-154-000
CMP

Top Mount Multi-Port Valve 1.5" FPT Clamp Style for Pentair Sand Filters 262506, 27502-154-000

$12799
CMP Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000
CMP

Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000

$6799
CMP Generic Top Manifold Assembly with Built-in Air Relief, DEX2400C, 25357-700-000
CMP

Generic Top Manifold Assembly with Built-in Air Relief, DEX2400C, 25357-700-000

$6399
CMP FNS Plus Top Manifold Assembly, 25357-600-000
CMP

FNS Plus Top Manifold Assembly, 25357-600-000

$9299
CMP Heavy Duty J-Style Top Manifold for CV340, CV460, CV580, CL340, CL460, CL580 Cartridge Filters, 25357-850-000
CMP

Heavy Duty J-Style Top Manifold for CV340, CV460, CV580, CL340, CL460, CL580 Cartridge Filters, 25357-850-000

$7899
CMP Multiport Valve Compatible with Hayward® Vari-Flo® SP0714T, 27515-154-000
CMP

Multiport Valve Compatible with Hayward® Vari-Flo® SP0714T, 27515-154-000

$13199
CMP Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564
CMP

Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564

$8699
Subtotal

Similar products

Other products people compare with this one.

Praher TM-12-CFC ABS clamp-down top mount multiport valve for Pentair Triton filters Praher ABS Clamp-Down Top Mount Multiport Valve for 1-1/2 in. Triton Filters, TM-12-CFC$11199 Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward SP0710XALL Vari-Flo XL 1.5 inch multiport valve kit Hayward Vari-Flo XL Multi-Port Valve Kit 1.5", SP0710XALL$16199 Waterway WVS003 1-1/2 in. top mount multiport valve for 2002 and later sand filters Waterway 1-1/2" Top Mount Multiport Valve (2002 & After), WVS003$11499 Jacuzzi DVK-6 dial valve kit, bolt on style, part 39258800R Jacuzzi DVK-6 Dial Valve Kit, Bolt On Style, 39258800R$15299 Praher TM-12-L 1-1/2 inch 6-way multiport backwash valve Praher 1-1/2" 6-Way Multiport Valve, TM-12-L$13699 Astral 22358 100 Series top mount multiport valve, 1-1/2 inch Astral Multiport TM 100 Series Valve, 22358$13799 Hayward SP0410X602S 2 inch push pull slide valve kit Hayward 2" Push Pull Slide Valve Kit, SP0410X602S$14599 Pentair 261186 top-mount clamp style valve for 1-1/2 inch plumbing Pentair Valve 1-1/2" Top-Mount Clamp Style, 261186$26199
Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair 261185 2 in. top mount clamp on multiport valve for Tagelus sand filters Pentair 2" Top Mount, Clamp on Complete Valve, 261185$32299 Jandy R0745700 2 in. top mount multiport valve with clamp for the SFTM24-2.0 sand filter Jandy 2 in. Top Mount Multi-Port Valve, R0745700$34699 Pentair 262525 two inch top mount multiport valve with unions for sand filters Pentair 2" FPT Top Mount TA60 SD80 Multiport Valve with Unions, 262525$35499 Pentair 263085 2 in. TA Tagelus clamp style backwash multiport valve without union Pentair 2 in. TA Tagelus Clamp Style Backwash Multiport Valve without Union, 263085$24999 Pentair 272422 valve top assembly for 2 in. Hi-Flow valve Pentair Valve Top Assembly 2", 272422$20999 Hayward SP071621 2 in. Vari-Flo top mount multiport valve, front view Hayward 2" Vari-Flo Top Mount Valve, SP071621$22899 Pentair 263052 push pull valve with 8 inch center spacing and 2 inch unions Pentair Push Pull Valve 8" Center, 263052$21999 Hayward SP0715X62 Vari-Flo 2 in. side mount control valve for Pro Series sand filters Hayward Pro-Series Sand Filter Vari-Flo Control Valve with 2 in. Plumbing Ports and Gauge, SP0715X62$28299

Product details

This is the CMP 27502-154-000 top mount multiport valve, with 1-1/2 in FPT ports and clamp style mounting. It is the replacement for the Pentair 262506 valve on Tagelus D style sand filters, covering the TA40D, TA50D and TA60D.

What the multiport does

The multiport is the control center of a sand filter. Every position on the handle routes water differently: filter, backwash, rinse, waste, recirculate and closed. Everything you do to maintain a sand filter goes through this one valve, which is why it takes more wear than anything else on the tank.

Signs the valve is done

Water at the waste line while the valve is set to filter, a handle that will not index into position cleanly, weeping around the shaft, or a hairline crack in the body all point at the valve rather than the filter. A spider gasket can be replaced on its own, but once the diverter and the body have worn against each other the leak paths do not close up again.

Before ordering

Confirm your filter is one of the Tagelus D models listed and that your plumbing is 1-1/2 in. Check whether your tank uses the clamp style connection, since that is what this valve is built for.

Specifications
Brand CMP
Manufacturer part number 27502-154-000
UPC 849640021354
Type Top mount multiport valve
Port size 1-1/2 in FPT
Mounting Clamp style
Tank connection 2 in buttress
Replaces Pentair 262506
Fits Pentair Tagelus D style sand filters TA40D, TA50D, TA60D
Shipping weight 7 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$14599 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1499 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$1199 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C CMP Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000$6799 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,47099 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$14799 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket Compatible with Hayward® SP1070-E, 27180-009-000$1399
CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699 CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$16699 CMP 25503-460-000 Brilliant Wonders 4 in. bubbler body assembly for gunite pools, white CMP Brilliant Wonders 4" Bubbler Body Assembly Gunite, 25503-460-000$12399 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$1999 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3199 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8399

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does this valve fit?
The Pentair Tagelus D style sand filters, specifically the TA40D, TA50D and TA60D.
Does it replace the Pentair valve outright?
Yes. It is listed as the replacement for Pentair 262506 on those filters.
What size are the ports?
1-1/2 in FPT, female pipe thread.
When is a valve worth replacing rather than rebuilding?
If the spider gasket is the only problem, rebuild it. If the body is cracked, the diverter shaft is worn so water bypasses between positions, or the handle no longer indexes cleanly, the valve itself is finished and a new one is the honest fix.
Ask your own question
