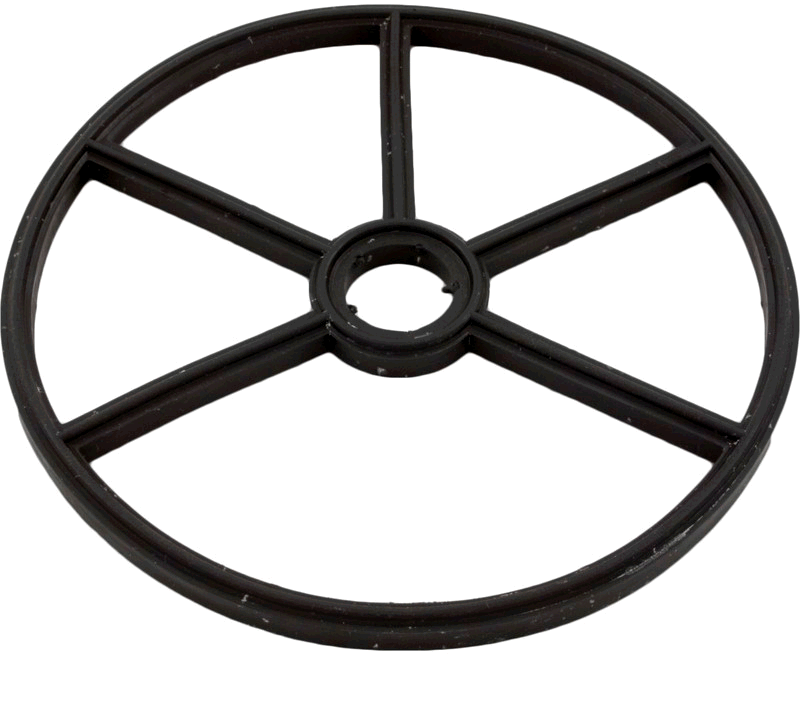

Pentair 271104 five spoke spider gasket, 5-3/16 in outside diameterPentair Valve Gasket, 5-3/16" OD, 271104 In stock$2599
Pentair 271104 five spoke spider gasket, 5-3/16 in outside diameter
Shop all Pentair

Pentair Valve Gasket, 5-3/16" OD, 271104

Ask a questionMPN 271104
$2599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Five spoke spider gasket The diverter seal that separates the ports inside a top mount multiport valve.
  • Measured, not guessed 5-3/16 in outside diameter, 3/4 in center hole, 1/4 in thick, so it can be checked against the old one.
  • Stops port to port bypass A worn spider gasket lets water cross between ports, which is why a filter keeps sending sand or DE back to the pool.
  • Genuine Pentair Factory part 271104, molded to the original profile.
  • Listed for top mount valves Referenced for Pentair top mount multiport valve bodies including models 501131, 501130 and 501231.
  • The usual valve repair Replacing the spider gasket is the first thing to try when a multiport leaks between settings.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Valve Gasket, 5-3/16" OD, 271104, SKU PAC-061-7497. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Valve Gasket, 5-3/16" OD, 271104
Pentair

Valve Gasket, 5-3/16" OD, 271104

$2599
Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506
Pentair

Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506

$20399
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair

Genuine OEM High Flow Manual Air Relief Valve, 98209800

$3899
Pentair Genuine OEM Clamp Kit with Tension Control, 190003
Pentair

Genuine OEM Clamp Kit with Tension Control, 190003

$30199
Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152
Pentair

2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152

$29799
Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S
Pentair

Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S

$48299
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair

Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400

$40199
Subtotal

Similar products

Other products people compare with this one.

Pentair 271157 valve handle washer for HiFlow multiport valves Pentair Valve Handle Washer, 271157$1899 Pentair 272520Z HiFlow multiport valve handle Pentair HiFlow Multiport Valve Handle, 272520Z$3299 Pentair 275333 valve body o-ring, 6-1/2 inch inside diameter Pentair O-Ring, 6-1/2" ID for 2" Multiport Valve, 275333$1599 Hayward SPX0710XD five spoke valve seat gasket for X body multiport valves Hayward OEM Valve Seat Gasket, 5 Spoke, SPX0710XD$2999 Pentair 354053 valve top o-ring for PacFab Hi-Flo multiport valves Pentair PacFab Valve Top O-Ring, 354053$3599 Pentair 263054 o-ring replacement kit for push / pull filter valves Pentair O-Ring Replacement Kit for Push / Pull Valve, 263054$2799 Pentair E-12-S2 2 inch spider gasket for multiport valves Pentair 2" Spider Gasket, E-12-S2$1699 Swimables SW-26-020 multiport valve handle replacement for Pentair filter valves Swimables Multiport Valve Handle Replacement for Pentair Filters, SW-26-020$2599 Hayward SPX0704D valve key gasket for Vari-Flo SP0704 multiport valve Hayward Valve Key Gasket for Vari-Flo SP0704 1-1/2 in. 4-Position Multiport Valve, SPX0704D$3199 Aladdin GO-KIT10-9 universal 5 spoke multiport valve rebuild gasket and o-ring kit Aladdin Universal 5 Spoke Multiport Valve Rebuild Gasket and O-Ring Kit, GO-KIT10-9$1919
Hayward SPX0714G valve position decal for the SP0714T Vari-Flo XL multiport valve Hayward SP0714T MPV Valve Position Label, SPX0714G$1699 Waterway 711-1910B white rubber diverter spider gasket Waterway Diverter Spider Gasket, 711-1910B$2599 Purex 71720 tapered valve rotor seal for SM and SMBW backwash valves Purex Tapered Valve Rotor Seal, 71720$2699 Sta-Rite U9-369 valve flange o-ring Sta-Rite O-Ring, Valve Flange, U9-369$3099 Aladdin GO-KIT39-9 seal valve kit for Hayward SP715 multiport valve Aladdin Seal Valve Kit for Hayward® SP715 Multiport, GO-KIT39-9$2799 Hayward SPX0710XF Vari-Flo multiport valve replacement handle Hayward SPX0710XF Vari-Flo Valve Handle$2599 Sta-Rite 14965-0006 top mount Cristal-Flo multiport valve spring Sta-Rite Top Mount Cristal-Flo Valve Spring, 14965-0006$2899 Pentair 273208 label for 2 inch NPT multiport valve Pentair 2" NPT MultiPort Label, 273208$1399 Sta-Rite 14971-SM10E8 multiport valve washer Sta-Rite Valve Washer 14971-SM10E8$2099 Pentair 272550 sight glass with vacuum projector for multiport valves Pentair Sight Glass with Vacuum Projector, 272550$1799

Product details

The Pentair 271104 is the five spoke spider gasket for a top mount multiport valve. It measures 5-3/16 in across the outside, has a 3/4 in center hole and is 1/4 in thick.

What it seals

Inside a multiport valve, a rotating diverter presses down onto this gasket. The spokes of the gasket divide the valve body into separate ports, and every setting on the handle, filter, backwash, rinse, waste, works only because those ports stay isolated from one another. The gasket is the seal doing that job.

When it has failed

Rubber hardens, takes a set, or tears at a spoke. Once it does, water crosses between ports inside the valve, and the visible symptoms follow: sand or DE returning to the pool, water running to waste while the valve is set to filter, or pressure that will not build. Replacing the spider gasket is the first repair to try in all of those cases.

Confirm the fit

The source lists this gasket for a 1-1/2 in multiport valve and also files it with six position top mount valve parts covering models 501131, 501130 and 501231. The three dimensions above are the reliable check, so measure the old gasket before ordering.

Specifications
Brand Pentair
Manufacturer part number 271104
UPC 788379693329
Type 5 spoke spider gasket, diverter gasket
Outside diameter 5-3/16 in
Center hole inside diameter 3/4 in
Thickness 1/4 in
Listed for 1-1/2 in multiport valve; also listed with 6 position top mount valve models 501131, 501130, 501231
Part type Filter valve part
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What does a spider gasket do?
It sits under the rotating diverter in a multiport valve and seals each port from its neighbors. Every position on the valve handle depends on that seal to send water only where it is supposed to go.
How do I confirm this is the right gasket?
Measure the old one. This gasket is 5-3/16 in across the outside, has a 3/4 in center hole and is 1/4 in thick. If those three numbers match, it is the right part.
Which valves is it listed for?
The source lists it as the gasket for a 1-1/2 in multiport valve, and also files it with six position top mount valve parts for models 501131, 501130 and 501231. Measure before ordering if your valve is not one of those.
Why is sand coming back into my pool through the multiport?
A hardened or torn spider gasket is a common cause. When the seal between ports fails, water crosses inside the valve body and carries media with it.
Ask your own question
