Hayward SP1056T hydrostatic relief valve install and removal toolHayward Hydrostatic Relief Valve Tool, SP1056T In stock$4699
Hayward SP1056T hydrostatic relief valve install and removal tool
Shop all Hayward

Hayward Hydrostatic Relief Valve Tool, SP1056T

Ask a questionMPN SP1056T
$4699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Hayward part SP1056T The factory install and removal tool for the SP1056 hydrostatic relief valve.
  • Reaches below plaster level Made to get down onto valves that sit under the plaster line in the pool floor.
  • Takes re-bar for leverage Holes in the tool accept a length of re-bar so you can break loose a valve that will not turn by hand.
  • For the pool bottom valve Used on the hydrostatic relief valve in the main drain sump at the floor of the pool.
  • Frees seized valves The tightest valves are the reason this tool exists, and pliers usually just destroy the valve body.
  • Install as well as remove The same tool seats the new valve, so it earns its place in a service kit.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Hydrostatic Relief Valve Tool, SP1056T, SKU HAY-60-5165. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Hydrostatic Relief Valve Tool, SP1056T
Hayward

Hydrostatic Relief Valve Tool, SP1056T

$4699
Aladdin Magic Lube 1 oz. O-Ring Lubricant
Aladdin

Magic Lube 1 oz. O-Ring Lubricant

$699
Boss Clear Silicone Sealant Tube, 3 oz., PLB103C
American Granby

Boss Clear Silicone Sealant Tube, 3 oz., PLB103C

$1599
Deck-O-Seal Deck-O-Shield Waterfall & Stone Sealer, 1 Gallon, 3460210
Deck-O-Seal

Deck-O-Shield Waterfall & Stone Sealer, 1 Gallon, 3460210

$11999
Aladdin Magic Lube 5 oz. O-Ring Lubricant
Aladdin

Magic Lube 5 oz. O-Ring Lubricant

$1499
Skimlite 6000 Snaplite Series Button Lock Pole, 8' to 16', 2-Piece, 6016
Skimlite

6000 Snaplite Series Button Lock Pole, 8' to 16', 2-Piece, 6016

$15099
Pentair Sand Vac, 542090
Pentair

Sand Vac, 542090

$18599
Subtotal

Similar products

Other products people compare with this one.

The PoolMan Stain Eraser tile and plaster cleaner, pole mounted stain removal block The PoolMan Stain Eraser Tile and Plaster Cleaner, 11036$3299 Hayward Paramount 004852000000 ParaJet install and removal tool Hayward Paramount ParaJet Install and Removal Tool, 004852000000$2499 Paramount 005-302-3570-00 in-floor valve module clamp Paramount In-Floor Valve Module Clamp, Hydra Valve, 005-302-3570-00$6399 ecoOne ECO-8014 hose filter that purifies up to 40,000 gallons of water ecoOne Hose Filter, Purifies up to 40,000 Gallons of Water, ECO-8014$5999 Blue Square 1130499 Q360 in-floor cleaning system water valve lid with o-ring Blue Square Manufacturing Q360 Infloor Valve Lid with O-Ring, 1130499$5799 Paramount PV-3 head removal tool with plastic handle, part 004-627-5452-00 Paramount PV-3 Head Removal Tool, 004-627-5452-00$4799 Paramount 004-552-5452-00 PCC2000 step nozzle tool with plastic handle Paramount PCC2000 Step Nozzle Tool with Plastic Handle, 004-552-5452-00$3499 Hayward DG3-1 Dura Grip III PVC lid wrench Hayward Wrench, Dura Grip III, DG3-1$2699 Pentair 229940 Style 2 three prong plastic installation tool Pentair Style II 3 Prong Tool, 229940$2399 Mikise Filter Flosser cartridge filter cleaning tool Mikise Filter Flosser Cartridge Filter Cleaning Tool, 60-1000$2995
Pool Tool 125 main drain suction mat, 12 inch flexible PVC with stainless steel hook Pool Tool Inc. Main Drain Suction Mat$5399 Paramount RetroJet installation tool 004-652-5422-00 Paramount RetroJet Installation Tool, 004652542200$4199 Pentair 236671 non-venturi internal retro-head in white Pentair Nonventuri Internal Retro Head, White, 236671$5699 Paramount 004652495401 white RetroJet nozzle for bayonet Caretaker 99 heads Paramount White RetroJet for Bayonet Caretaker 99 Nozzle, 004652495401$6799 Hayward SP022310 Bobby 10 in disposable hose filter Hayward 10" Bobby Disposable Hose Filter, SP022310$5399 Hayward SP022320 Bobby 20 inch disposable fill hose filter attached to a fill hose Hayward Bobby Disposable Fill Hose Filter 20", SP022320$6899 Pentair 154512Z 6 inch flanged valve wrench for 1-1/2 inch MultiPort valves Pentair Flanged Valve Wrench 6", 154512Z$3699 Pentair 230330 Pool Valet high flow retro-fit replacement head in white Pentair Pool Valet High Flow Retro-Fit Replacement Head, White, 230330$6299 Pentair 229910 plastic installation tool for G4, G4V and G4VHP cleaning heads Pentair G4, G4V and G4VHP Plastic Installation Tool, 229910$2399 Hayward SP3100T Super II pump strainer lid removal tool Hayward Pump Lid Removal Tool for Select Super II Series Pool Pumps, SP3100T$3799

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

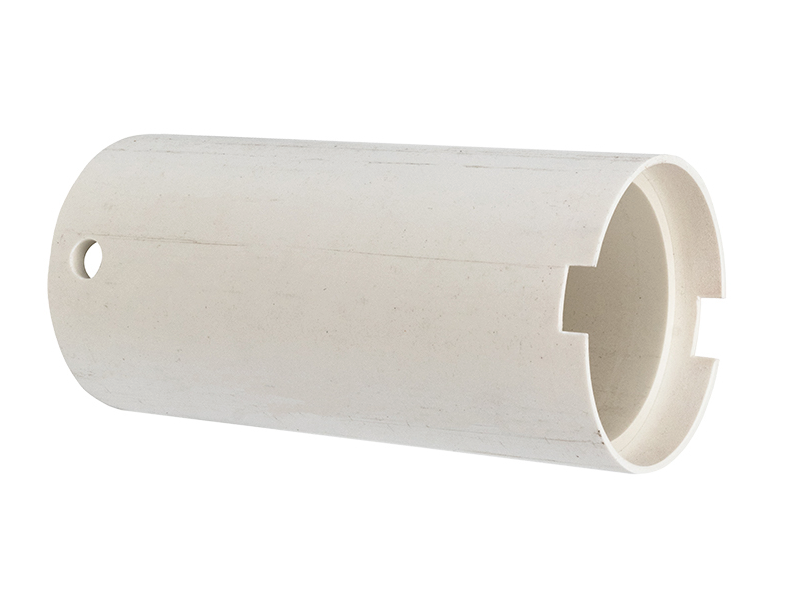

The Hayward SP1056T is the install and removal tool for the SP1056 hydrostatic relief valve. It is built to reach valves that sit below plaster level in the pool floor.

Why the tool matters

The hydrostatic relief valve threads into the main drain sump at the bottom of the pool, where it lets the ground water table around the shell equalize with the water inside. Once plaster is over it, the valve is recessed and awkward, and years in the water leave it seized. Trying to turn one with pliers or a screwdriver usually shears the valve rather than freeing it.

Getting leverage

The tool has holes through it that take a length of re-bar. With re-bar through, you have a long handle and can put real force on a valve that will not budge. The same tool seats the replacement valve, so the job goes back together with the right fit.

Specifications
Brand Hayward
Manufacturer part number SP1056T
UPC 610377045872
Type Install and removal tool
For Hayward SP1056 hydrostatic relief valve
Location Hydrostatic relief valve in the pool bottom, main drain
Leverage Holes accept re-bar for increased leverage
Shipping weight 0.38 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What exactly does this tool do?
It installs and removes the SP1056 hydrostatic relief valve, including valves that sit below plaster level and have seized in place.
How do I get more leverage?
Pass a length of re-bar through the holes in the tool. That gives you a long handle on a valve that will not turn by hand.
What does the hydrostatic relief valve itself do?
It lets the ground water table around the pool equalize with the pool water. The main drain sump is where it lives, and the SP1056 is the valve it accommodates.
Is this a one time purchase?
For a homeowner it is bought for a single job and kept. Service techs carry it because the valve cannot be removed cleanly without it.
