Pentair 2 in. 6 Port Low Profile T-Valve Kit, 230069 In stock$142⁹⁹

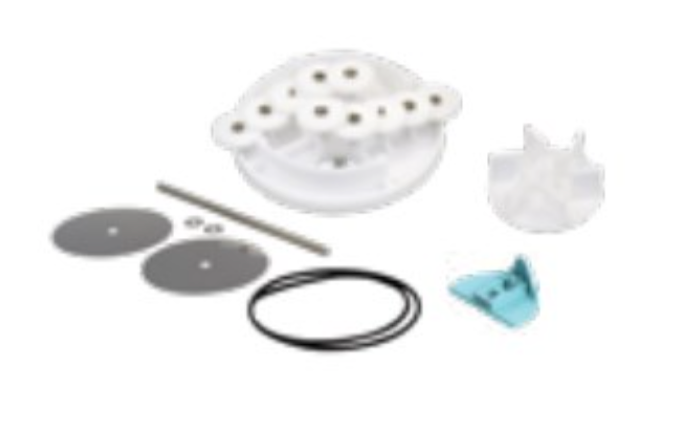

Pentair 2 in. 6 Port Low Profile T-Valve Kit, 230069

Name: Pentair 2 in. 6 Port Low Profile T-Valve Kit, 230069
Brand: Pentair
SKU: ANA-20-0011
Price: 142.99 USD
Availability: InStock

Ask a questionMPN 230069

$142⁹⁹

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Genuine Pentair part number 230069, the factory T-valve kit, not an aftermarket copy.
For the 6 port valve made for the Pentair 6 port low profile water valve.
Low profile matches the low profile valve body, so it fits where a standard height valve will not.
2 in. pipe sized for 2 in. plumbing.
Kit form supplied as the T-valve kit for the 6 port valve.
Direct replacement swaps in for the valve on an existing 6 port low profile installation.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select Pentair 2 in. 6 Port Low Profile T-Valve Kit, 230069

Pentair

2 in. 6 Port Low Profile T-Valve Kit, 230069

$142⁹⁹

Select

Pentair

Three Port Diverter Valve 2" x 2.5", 263028

$60⁹⁹

Select

Pentair

Chemical Resistant 1-1/2" x 2" Check Valve, R172288

$74⁹⁹

Select

Pentair

Sinking Pool Water Thermometer with ABS Case and 3-Foot Cord, R141036

$16⁹⁹

Select

Pentair

Replacement Handle for FullFloXF Backwash Valve, 270187Z

$50⁹⁹

Select

Pentair

2 in. Multiport Valve Diverter Gasket, 271148Z

$36⁹⁹

Select

Pentair

Genuine OEM Six-Way HiFlow Valve Clamp with Screw and Nut, 152165

$30⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Pentair 270514Z FullFloXF backwash valve rebuild kit

Pentair FullFloXF Backwash Valve Rebuild Kit, 270514Z$166⁹⁹

Pentair 270119Z CPVC check valve rebuild kit with flapper

Pentair 2.50" and 3" CPVC Check Valve Rebuild Kit, 270119Z$102⁹⁹

Pentair 230070 1-1/2 inch 5 port top feed kit

Pentair 1-1/2" 5 Port Top Feed Kit, 230070$137⁹⁹

Pentair 270075 diverter valve kit assembly in black for Compool valves

Pentair 1.50 in. to 2 in. Diverter Valve Kit Assembly, 270075$82⁹⁹

A&A Manufacturing repair kit for the 6-port top feed actuator valve

A&A Manufacturing Repair Kit for 6-Port Valve, 230055$164⁹⁹

Jandy R0444000 rebuild kit for the Pro Series 2 inch side mount multi-port valve

Jandy 2" Multi-Port Valve Rebuild Kit, R0444000$85⁹⁹

Jandy 7056 check valve flapper assembly rebuild kit

Jandy Check Valve Kit for 1.5 in. to 2.5 in. Check Valve Body, 7056$71⁹⁹

Pentair 150119Z 1-1/2 inch black three piece union kit for HiFlow valves

Pentair 1.5" Black 3 Piece Union Kit for HiFlow Valves, 150119Z$74⁹⁹

Hayward PSXVBCA PSV valve upper rebuild kit

Hayward PSV Valve Upper Kit, PSXVBCA$88⁹⁹

Pentair 273241Z piston rod assembly for 2 inch PVC push pull slide valve

Pentair Piston Rod Assembly for Slide Valve, 273241Z$100⁹⁹

CMP 25831-120-100 internal assembly for the 261165 P-style slide valve

CMP Internal Assembly for 261165 Pentair Slide Valve, 25831-120-100$78⁹⁹

Jandy R0443800 2 inch multi-port valve unions, three per pack

Jandy 2" Multi-Port Valve Union 3 Pack, R0443800$105⁹⁹

Jandy NeverLube Diverter Kit, 4720$86⁹⁹

Paramount 005-302-4300-03 water valve top dome in black

Paramount Water Valve Top Dome, Black, 005-302-4300-03$179⁹⁹

Jandy R0466000 cover with flapper and o-ring for the 7307 large check valve

Jandy Cover with Flapper and O-Ring, Large Check Valve 7307, R0466000$122⁹⁹

Jandy R0465800 Never Lube large valve diverter

Jandy Never Lube Large Valve Diverter, R0465800$150⁹⁹

CMP 25831-130-100 slide valve piston assembly

CMP Slide Valve Piston Assembly, 25831-130-100$127⁹⁹

Waterway 550-6730 HD pressure relief valve assembly

Waterway HD Pressure Relief Valve Assembly, 550-6730$153⁹⁹

Hayward SPX0740C key stem assembly for the SP0740DE 2 inch Selecta-Flo valve

Hayward Key Stem Assembly for SP0740DE Valve, SPX0740C$84⁹⁹

Hayward SPX0740B 2 inch valve cover for the SP0740DE multiport valve

Hayward 2" Valve Cover for SP0740DE Multiport Valve, SPX0740B$72⁹⁹

Product details

The Pentair 6 Port Low Profile T-Valve Kit, 230069, is the T-valve kit for the 2 inch six port version of Pentair's WAVE water actuated valve, the low profile valve used in Pentair in-floor cleaning and circulation systems.

What the valve does

Pentair describes the WAVE valve as the control center of an in-floor system, directing water to specific zones in the pool. It is a low profile valve made to sit discreetly next to the pool, with built-in speed control and a QuikStop feature, and it contains no screens or filters. Inside, a T-valve opens and closes each port. Pentair's housing replacement guide states that a 6 port valve needs six T-valve assemblies and the 6 port cam, part 230010.

Fit

Pentair lists its T-valve kits by port count and pipe size. This one is the 6 port kit for 2 in. plumbing. The 3 port kit for 2 in. is 230146, the 2 port kit for 2 in. is 230147, and the 6 port kit for 1-1/2 in. is 230148. Pentair calls for a minimum of 2 in. Schedule 40 PVC on the 2 in. valve.

Before you order

Count the ports on your valve and confirm the pipe size, since the 2 in. and 1-1/2 in. valves use different kits. The 6 port cam (230010Z), the impeller (230022) and the housing are separate Pentair parts. Pentair's guide uses its T-Valve Install and Removal Tool, 235090, sold separately, and warns that the T-valves must be lifted slightly when they are reinstalled or the valve seats and the T-valve assembly can be damaged.

Specifications
Brand	Pentair
Manufacturer part number	230069
UPC	818965012002
Type	T-valve kit
For	6 port low profile water valve
Pipe size	2 in.
Fits	Pentair WAVE 2 in. 6 port low profile water actuated valve
Install tool	Pentair 235090 T-Valve Install and Removal Tool, sold separately
Shipping weight	1.12 lb
Ships	Parcel
