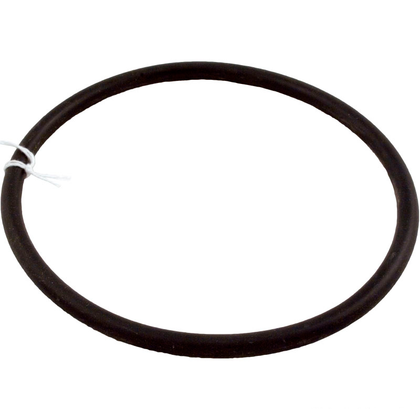

Sta-Rite U9-161 O-19 o-ring for the 5 inch pump trap lidSta-Rite O-Ring for 5" Trap Lid (O-19), U9-161 In stock$2199
Sta-Rite U9-161 O-19 o-ring for the 5 inch pump trap lid
Shop all Sta-Rite

Sta-Rite O-Ring for 5" Trap Lid (O-19), U9-161

Ask a questionMPN U9-161
$2199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Sta-Rite Factory part U9-161, the o-ring specified for the 5 inch trap lid.
  • O-19 size The standard Sta-Rite o-ring designation, so it is easy to cross check against your parts list.
  • Seals the strainer pot This is the ring the lid clamps down onto to hold the pump under vacuum.
  • A prime problem starts here A flattened or cracked lid o-ring is the most common reason a pump pulls air and loses prime.
  • Cheap insurance Fit a new one whenever the lid comes off for a long service, not just when it leaks.
  • Lubricate on assembly A light film of silicone lubricant on the ring helps it seat and keeps it from tearing when the lid is turned down.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Sta-Rite O-Ring for 5" Trap Lid (O-19), U9-161, SKU STA-101-4849. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Sta-Rite O-Ring for 5" Trap Lid (O-19), U9-161
Sta-Rite

O-Ring for 5" Trap Lid (O-19), U9-161

$2199
Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S
Sta-Rite

Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S

$30499
Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ
Sta-Rite

Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ

$29699
Sta-Rite Max-E-Pro Seal Plate, C103-194PZ
Pentair

Sta-Rite Max-E-Pro Seal Plate, C103-194PZ

$7099
Sta-Rite Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ
Sta-Rite

Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ

$4499
Sta-Rite Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P
Sta-Rite

Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P

$17199
Sta-Rite Drain Plug with O-Ring, 1/4 in. NPT, U178-920P
Sta-Rite

Drain Plug with O-Ring, 1/4 in. NPT, U178-920P

$899
Subtotal

Similar products

Other products people compare with this one.

Sta-Rite 35505-1440Z trap cover o-ring for Max-E-Pro pumps Sta-Rite Trap Cover O-Ring, Max-E-Pro, 6-3/4" ID, 1/4" Thickness, 35505-1440Z$3199 Sta-Rite U9-228A seal plate o-ring for Pinnacle pumps Sta-Rite Seal Plate O-Ring for Pinnacle, U9-228A$1799 Pentair 356189Z lid o-ring for IntelliFlo3 pool pump Pentair Lid O-Ring for IntelliFlo3 Pool Pump, 356189Z$2599 Hayward SPX3000S o-ring for the trap cover and strainer pot Hayward O-Ring for Trap Cover Strainer Pot, SPX3000S$2499 Sta-Rite C35-43 motor vibration pad for Max-E-Pro pumps Sta-Rite Motor Pad for Max-E-Pro Pumps, C35-43$1499 Aladdin GO-KIT79 seal and gasket kit for Sta-Rite Max-E-Pro pumps Aladdin Seal & Gasket Kit for Sta-Rite Max-E-Pro Series Pool Pumps, GO-KIT79$2999 Sta-Rite C108-33P strainer basket for Dura-Glas and Max-E-Glas pumps Sta-Rite Strainer Basket for Dura-Glas and Max-E-Glas Pumps, C108-33P$2199 Pentair 16920-0012 pump lid O-ring for Sta-Rite Dura-Glas and Max-E-Glas pumps Pentair Pump Lid O-Ring for Dura-Glas and Max-E-Glas, 16920-0012$3199 Waterway 805-0439 lid o-ring for SVL56 pump Waterway Lid O-Ring for SVL56 Pump, 805-0439$1299 Sta-Rite C8-58P Max-E-Pro pump trap basket Sta-Rite Max-E-Pro Trap Basket, C8-58P$1899
Aladdin B-33 5 inch pump strainer basket Aladdin Replacement Pump Strainer Basket for Sta-Rite, Premier and Aqua-Flo Pumps, 5 in., B-33$1108 Jandy R0449100 pump lid seal gasket with o-ring Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999 Jandy R0480300 backplate o-ring for FloPro FHPM and VS-FHP series pumps Jandy Backplate O-Ring for FHPM and VS-FHP Series Pumps, R0480300$2399 Jandy R0480200 lid O-ring for FloPro pool pumps Jandy FloPro Lid O-Ring, FHP, R0480200$2099 Pentair 354533 lid o-ring for Dynamo pool pump Pentair Lid O-Ring, Dynamo, 354533$1499 Polaris R0537000 drain plug with o-ring for the PB4-60 booster pump Polaris Drain Plug with O-Ring for PB4-60, R0537000$1599 Gecko 92200300 volute O-ring for Aqua-Flo Flo-Master XP and XP2 pumps Gecko Volute O-Ring for Aqua-Flo Pumps, 92200300$1499 Aqua-Flo 92830070 wear ring for Flo-Master XP2 pumps Aqua-Flo Wear Ring for Flo-Master XP2, 92830070$1599 Hayward SPX1500P strainer cover O-ring for Power-Flo pumps Hayward O-Ring, Strainer Cover for Power-Flo Pump, SPX1500P$1599 Sta-Rite U11-200PS 2 inch collar union Sta-Rite Collar Union, 2", U11-200PS$2099

Product details

Sta-Rite U9-161 is the o-ring for the 5 inch trap lid, listed by Sta-Rite as the O-19. It is the genuine replacement for the seal between the strainer pot and its lid.

Why it matters

Everything upstream of the impeller runs under vacuum, so the trap lid seal is the one part standing between the pump and a lungful of air. When the ring goes hard, flattens or splits, the pump draws air past the lid instead of water from the pool, and the symptom owners notice is a pump that will not hold prime or a basket that never fills.

Fitting

Clean the groove and the sealing face before the new ring goes in, then give it a light film of silicone lubricant so it seats without rolling or pinching. Sta-Rite lists this ring against the CFA series and CF bronze pumps and the Premier 456-B/N, 556N and 556-AB series, so check your parts diagram if you are unsure which lid you have.

Specifications
Brand Sta-Rite
Manufacturer part number U9-161
UPC 788379778156
Type Trap lid o-ring
O-ring size O-19
Fits 5" trap lid
Part type Pool pump part
Listed for Sta-Rite CFA series, CF bronze pumps, Premier 456-B/N series, Premier 556N series, Premier 556-AB series
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53899 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15199 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$24599 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3499 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$30499 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media, 27002-0300S$56999 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S, 170147$76799 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black, 27001-0020S$28799 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit, 77707-0054$9499
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z$15499 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ$29699 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957$37399 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater, 474061$1,22199 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate, C103-194PZ$7099 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3399 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black, 356893Z$1,22699 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch, 42001-0061S$15799

Questions and answers

What people ask about this product, answered by our pool techs.

Which o-ring is this?
The O-19, the Sta-Rite o-ring for the 5 inch trap lid. The manufacturer part number is U9-161.
My pump keeps losing prime, is this the part?
Very often, yes. A lid o-ring that has gone hard, flat or cracked lets the pump draw air, and the pump will not hold prime until the ring is replaced.
Which pumps is it listed under?
Sta-Rite CFA series and CF bronze pump parts, and the Premier 456-B/N, 556N and 556-AB series. Check your parts diagram to confirm before ordering.
Do I need to lubricate it?
A light coat of silicone lubricant helps the ring seat evenly and stops it pinching or rolling as the lid is tightened. Do not use a petroleum grease.
