Pentair 011660 C Series 15 HP three phase commercial bronze pump with hair and lint strainer, CHK-150Pentair C Series Commercial Bronze Pump 15 HP 220/440V 37.5/18.8 Amp, CHK-150, 011660$11,57299

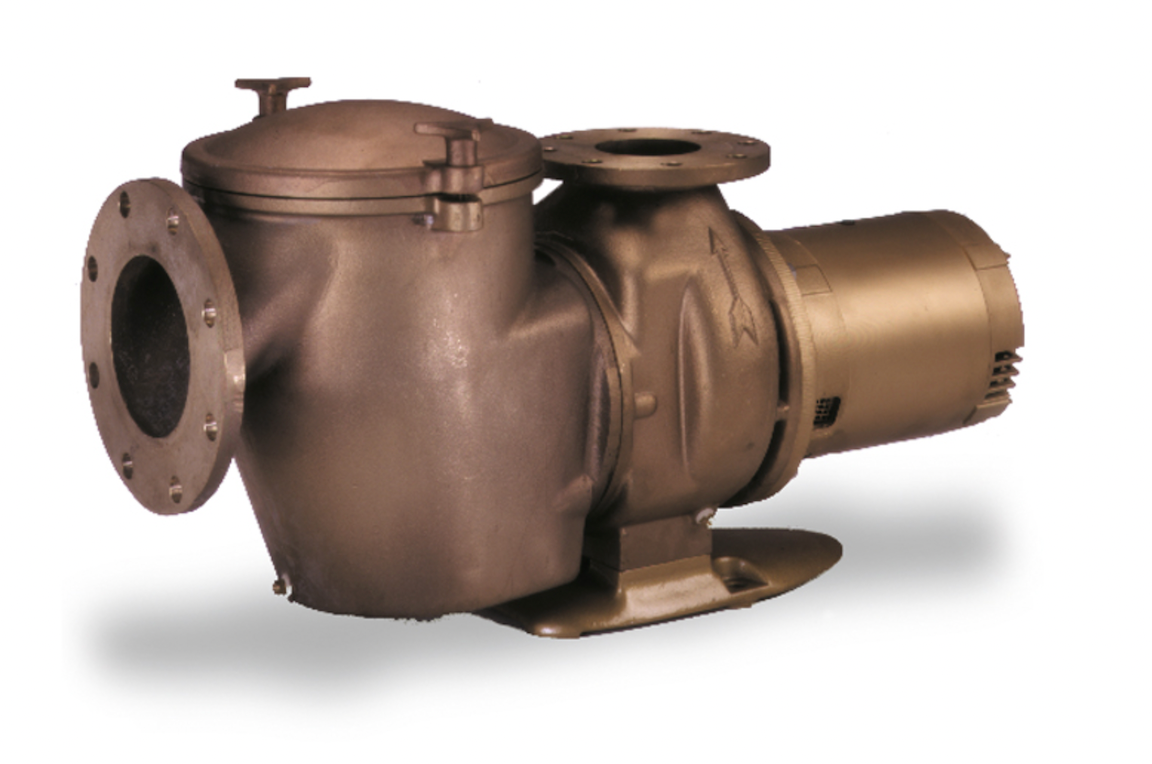

Pentair 011660 C Series 15 HP three phase commercial bronze pump with hair and lint strainer, CHK-150
Shop all Pentair

Pentair C Series Commercial Bronze Pump 15 HP 220/440V 37.5/18.8 Amp, CHK-150, 011660

Ask a questionMPN 011660
$11,57299
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Bronze wet end bronze volute and strainer pot for commercial duty.
  • 15 HP three phase 220/440V, drawing 37.5 or 18.8 amps.
  • Strainer included hair and lint strainer built in.
  • Flanged connections 6 in. suction and 4 in. discharge.
  • Coated cast iron foot a stable base for a large commercial pump.
  • Standard efficiency the standard efficiency C Series model, CHK-150.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair C Series Commercial Bronze Pump 15 HP 220/440V 37.5/18.8 Amp, CHK-150, 011660, SKU PUR-10-360. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair C Series Commercial Bronze Pump 15 HP 220/440V 37.5/18.8 Amp, CHK-150, 011660
Pentair

C Series Commercial Bronze Pump 15 HP 220/440V 37.5/18.8 Amp, CHK-150, 011660

$11,57299
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

Pentair EQ Series EQ750 7.5 HP three phase commercial pump with strainer, part 340033 Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V, 340033$6,72499 Pentair EQ Series EQ-750 7.5 HP single phase commercial pool pump, part 340032 Pentair EQ Series 7.5 HP EQ-750 Premium Efficiency Single Phase Pump, 340032$6,49699 Pentair EQ500 340031 5 HP three phase commercial pool pump with strainer pot Pentair EQ Series Commercial Pump 5 HP 208-230/460V 13.5-12.3/6.2 Amp, 340031$6,55699 Pentair EQ1000 commercial pool pump 10 HP 230V, part 340238 Pentair EQ1000 Commercial Pump 10 HP 230V, 340238$7,66499 Pentair EQK1500 15 HP three phase commercial pool pump with strainer pot, part 340035 Pentair EQK1500 Series 15 HP NEMA Premium Efficiency 3-Phase Pool Pump with Strainer, 208-230/460V, 340035$7,99599 Pentair 340605 EQ Series 7.5 HP three phase commercial pool pump with strainer Pentair EQ Series Commercial Pump 7.5 HP 208-230/460V 19.9-17.8/8.9 Amp, 340605$6,94299 Pentair 340604 EQ Series 5 HP commercial pool pump with strainer Pentair EQ Series Commercial Pump 5 HP 208-230/460V 13.4-12.2/6.1 Amp, 340604$6,89999 Pentair 340030 EQ Series EQ-500 5 HP single phase commercial pool pump with strainer Pentair EQ Series EQ-500 5 HP Premium Efficiency Single Phase Pump, 340030$6,74799 Pentair 340034 EQ Series EQ1000 10 HP three phase commercial pump with strainer pot Pentair EQ Series Commercial Pump 10 HP 208-230/460V, 340034$7,47899 Speck Pumps Model 95-X single speed 7.5 HP three phase pool pump, IG273-1750F-000 Speck Pumps 95-X Single Speed Pool Pump, 7.5 HP 3 Phase, IG273-1750F-000$5,37400 Web Price
Sta-Rite CSP Series CSPHK3-142 7.5 HP three phase cast iron pool pump without strainer Pentair Sta-Rite CSP Series 7.5 HP Three Phase Cast Iron Pool Pump without Strainer, 230-460V, CSPHK3-142$5,10199 Pentair 022035 WhisperFloXF VS 5HP variable speed commercial pool pump Pentair WhisperFloXF 5HP Variable Speed Pool Pump, 208-230/277-460V 1-Phase / 208-460V 3-Phase, 022035$3,22299 Pentair WhisperFlo XF 5HP three phase pool pump, part 022019 Pentair WhisperFlo XF 5HP 3PH Pump, 022019$3,01799 Hayward W3SP3206VSP TriStar VS 950 2.7 HP variable speed pool pump, front view Hayward TriStar VS 950 Variable Speed Pool Pump, 2.7 HP 115V-230V, W3SP3206VSP$2,69900 Web Price Pentair IntelliFlo VS+SVRS variable speed pool pump, part 011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, 011057$2,57199 Pentair IntelliFloXF 022056 variable speed and flow pool pump, 3 HP, 230V Pentair IntelliFloXF VSF Variable Speed and Flow Pool Pump, 3 HP Max, 3.95 THP, 230V, 022056$2,21699 Hayward W3SP3202VSP TriStar VS 1.85 HP variable speed pool pump Hayward TriStar VS Variable Speed Pool Pump, 1.85 HP 230V, Single Phase, W3SP3202VSP$2,19900 Web Price AquaStar PLP300S 3 HP PipeLine variable speed pool pump with WiFi control AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control, PLP300S$1,85000 Web Price Pentair WhisperFlo WFK-12 3 HP three phase pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 HP Full Rated, 3 Phase, 208/230/460V, WFK-12, 011644$1,84999 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair 011660 is a C Series commercial bronze pump, model CHK-150: 15 HP, three phase, 220/440V, with the hair and lint strainer. It is the standard efficiency C Series unit for large commercial pools.

Commercial construction

The volute and strainer pot are bronze, the foot is coated cast iron and the connections are flanged, with a 6 in. suction and a 4 in. discharge. Motor draw is 37.5 amps at 220V or 18.8 amps at 440V.

Before you order

This is a three phase pump and needs three phase service at 220 or 440V. Confirm the flange sizes against your plumbing. It ships by freight.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Pentair
Manufacturer part number 011660
UPC 788379663698
Model CHK-150
Series C Series
Horsepower 15 HP
Phase 3 phase
Voltage 220/440V
Amps 37.5/18.8 A
Efficiency Standard efficiency
Volute and pot Bronze
Foot Coated cast iron
Connections Flanged
Suction 6 in.
Discharge 4 in.
Strainer Hair and lint strainer included
Shipping weight 398 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is this single phase or three phase?
Three phase, 220/440V. It draws 37.5 amps at 220V or 18.8 amps at 440V. It is not a single phase pump.
Does it come with a strainer?
Yes. The 011660 is the C Series pump with the hair and lint strainer.
What are the plumbing connections?
Flanged, with a 6 in. suction and a 4 in. discharge.
Why bronze?
The volute and strainer pot are bronze for corrosion resistance and long life in commercial service, with a coated cast iron foot under it.
