Pentair EQKT750 Commercial TEFC Pool Pump Without Strainer, 3 Phase, 208-230/460V, 7.5 HP, 340609$639364
Pentair EQKT750 Commercial TEFC Pool Pump Without Strainer, 3 Phase, 208-230/460V, 7.5 HP, 340609
Quick overview
- Commercial duty The EQ series pump Pentair builds for commercial pools, not a scaled up residential unit.
- TEFC motor Totally enclosed fan cooled, so the windings are sealed off from the air in the equipment room.
- 7.5 HP, single speed Rated at 7.5 HP with one speed operation, Pentair part 340609.
- Three phase only Wired for three phase service. Check the panel first, a single phase site needs a different pump.
- NEMA rated Built to the NEMA frame standard commercial specifications call out.
- Without strainer The bare pump with no strainer pot, for systems that already run a separate hair and lint strainer ahead of it.
Frequently bought together
EQKT750 Commercial TEFC Pool Pump Without Strainer, 3 Phase, 208-230/460V, 7.5 HP, 340609
Similar products
Other products people compare with this one.
Product details

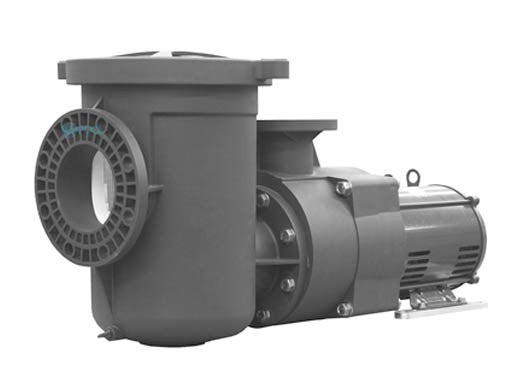

The Pentair EQKT750 is a 7.5 HP commercial pool pump, part number 340609, supplied without a strainer pot. It runs on three phase power and uses a NEMA rated TEFC motor.
Why TEFC matters on a commercial pad
Totally enclosed fan cooled means the motor windings are sealed away from the air around them and cooled by an external fan. On a commercial equipment pad, where the air carries chemical fumes and dust and the pump may run most of the day, that sealed construction is the difference between a motor that lasts and one that fails early.
Without strainer
This version has no strainer pot on the front. It is meant for systems that already have a separate hair and lint strainer plumbed ahead of the pump, which is the normal arrangement on a commercial installation. If your system relies on the pump mounted basket, this is not the right configuration.
Before you order
Confirm that the building supplies three phase power, and check the motor nameplate voltage against your service. The product name lists 208-230/460V while the specification table lists 200-230/460V, so read the nameplate rather than assuming one or the other.
| Brand | Pentair |
|---|---|
| Manufacturer part number | 340609 |
| UPC | 788379864798 |
| Model | EQKT750 |
| Type | Commercial pool pump, without strainer |
| Horsepower | 7.5 HP |
| Speed | 1 Speed |
| Voltage | 208-230/460V in the product name, 200-230/460V in the specification table |
| Phase | Three Phase |
| Motor | TEFC, NEMA rated |
| Pipe size | 1.25" |
| Color | Black |
| Shipping weight | 117 lb |
| Ships | Freight |
