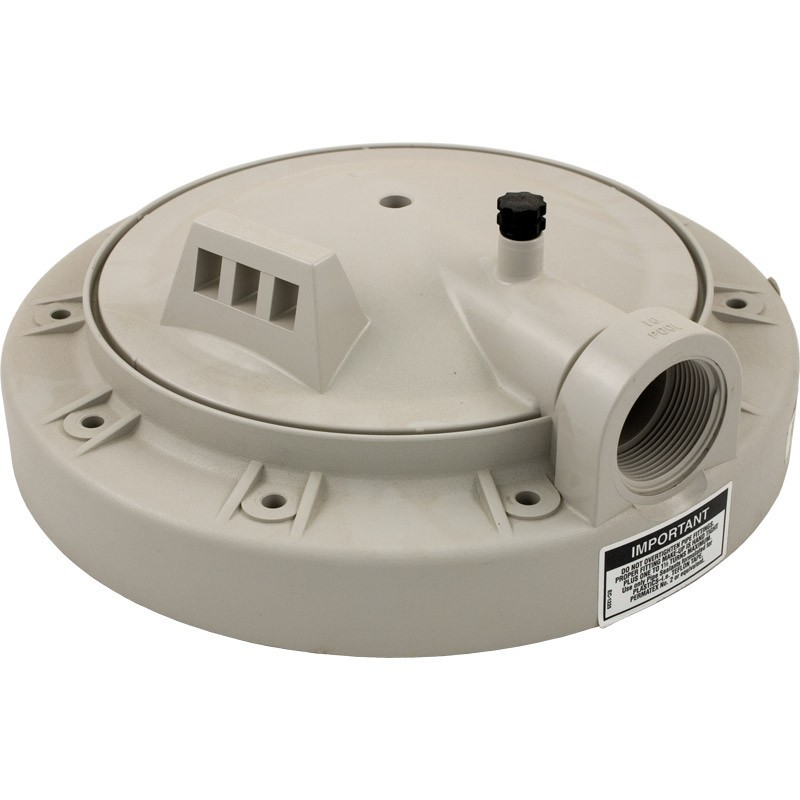

Hayward ECX1131P Perflex filter head with vent valve in platinumHayward Filter Head with Vent Valve, Platinum, ECX1131P$18299
Hayward ECX1131P Perflex filter head with vent valve in platinum
Shop all Hayward

Hayward Filter Head with Vent Valve, Platinum, ECX1131P

Ask a questionMPN ECX1131P
$18299
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward part The factory ECX1131P head, not an aftermarket shell.
  • Vent valve included The head comes with its air relief vent valve, the fitting used to purge air on start up.
  • Platinum color This is the platinum version. Hayward lists the ivory head under the same number without the P.
  • Perflex application Listed as a Perflex EC30 and EC40 DE filter part.
  • Plastic construction Molded plastic, matching the original head.
  • The fix for a cracked head A head that is weeping at a crack cannot be patched reliably, and a fresh one restores a sealing tank.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Filter Head with Vent Valve, Platinum, ECX1131P, SKU HAY-051-1489. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Filter Head with Vent Valve, Platinum, ECX1131P
Hayward

Filter Head with Vent Valve, Platinum, ECX1131P

$18299
Hayward White Schmear Compound, ECX1308
Hayward

White Schmear Compound, ECX1308

$5599
Hayward 1-1/2" Plug with O-Ring, SP1022C
Hayward

1-1/2" Plug with O-Ring, SP1022C

$599
Hayward Air Relief Valve with O-Ring, ECX1322A
Hayward

Air Relief Valve with O-Ring, ECX1322A

$1799
Hayward Back Mount Pressure Gauge, ECX27091
Hayward

Back Mount Pressure Gauge, ECX27091

$3699
Hayward Perflex Bump Shaft Kit, ECX1014A
Hayward

Perflex Bump Shaft Kit, ECX1014A

$2599
Hayward O-Ring for Perflex DE Filter | ECX9611246
Hayward

O-Ring for Perflex DE Filter | ECX9611246

$399
Subtotal

Similar products

Other products people compare with this one.

Hayward ECX5000BP platinum DE filter head with vent valve for EC50AC and EC40AC Hayward Filter Head DE with Vent Valve (EC50AC; EC40AC), ECX5000BP$23299 Hayward ECX1105 diaphragm gasket for Perflex EC65 and EC75 DE filters, bottom view Hayward OEM Diaphragm Gasket, Perflex EC65/75, ECX1105$11099 Hayward ECX11034SET Perflex top and bottom tube sheet set for EC65 and EC75 filters Hayward Perflex Top and Bottom Tube Sheet Set, ECX11034SET$10099 Hayward EC65BLP System III base kit Hayward System III Base Kit, EC65BLP$23399 Hayward EC1161LK elevated mounting base for Perflex EC40 and EC50 series DE filters Hayward Elevated Mounting Base for Perflex EC40 and EC50 Series Filters, EC1161LK$13199 Hayward ECX4201CA Perflex EC60/65/70 inlet assembly with check valve Hayward Inlet Assembly with Check Valve, Perflex EC60/65/70 (1989 and Prior), ECX4201CA$7799 Hayward ECX4220A elbow assembly with check valve for Perflex EC65 and EC75 filters Hayward Elbow Assembly with Check Valve for Perflex EC65 and EC75, ECX4220A$7199 Hayward ECX10271A filter head screw and nut set for Perflex DE filters Hayward Filter Head Screw and Nut Set for Perflex EC30/EC40 Filters, ECX10271A$1499 Hayward EC2024 Perflex jet action filter cleaning wand Hayward Perflex Jet Action Filter Cleaning Wand, EC2024$4999 Hayward SPX0727E Perflex valve union nut in black Hayward Perflex Valve Union Nut SPX0727E$2699
Hayward ECX1642A filter tank bolt set with head bolt, nut and washer Hayward Filter Tank Bolt Set, ECX1642A$1499 Hayward ECX1642215 hex head bolt, 1/4-20 x 1-3/4 inch Hayward Hex Head Bolt, 1/4"-20 x 1-3/4", ECX1642215$1399 Hayward ECX5000G rubber diaphragm gasket for Perflex EC-50C and EC-40C DE filters Hayward Genuine OEM Diaphragm Gasket (EC-50C, EC-40C), ECX5000G$8899 Hayward ECX1004ASET top and bottom tube sheet set for EC40 and EC50 filters Hayward EC40/EC50 Top and Bottom Tube Sheet Set, ECX1004ASET$8199 Hayward ECX1003 rubber diaphragm gasket for Perflex EC40 and EC50 DE filters Hayward Diaphragm Gasket, EC40/50, ECX1003$7699 Hayward ECX1110 bump shaft for Perflex EC65 and EC75 DE filters Hayward Bump Shaft for Perflex DE Filters, EC65 and EC75, ECX1110$7199 Hayward ECX5000F 1-1/2 inch metal bump shaft for Perflex D.E. filters Hayward 1-1/2" Bump Shaft (EC50AC; EC40AC), ECX5000F$6999 Hayward ECX1079S 1-1/2 inch by 6 foot Perflex extended cycle DE filter hose Hayward 1-1/2" x 6' Perflex Extended Cycle DE Filters Hose, ECX1079S$5899 Hayward ECX1040 complete Noryl bump handle assembly for Perflex DE filters Hayward Complete Noryl Bump Handle, ECX1040$5399 Hayward ECX27071 clear hose, 1-9/16 in. ID, for Perflex EC65 and EC40 DE filters Hayward Clear Hose 1-9/16" ID, Perflex EC65, EC40, ECX27071$3899

Product details

This is the Hayward filter head with vent valve, part number ECX1131P, molded in platinum. It is listed as a Perflex EC30 and EC40 DE filter part.

Color and part number

Hayward builds the same head in two colors and separates them with a single letter. ECX1131P is the platinum head, and dropping the P gives the ivory one. Order by the color of the filter you have rather than by the number alone.

Vent valve

The head carries the air relief vent valve, the fitting opened on start up to purge air from the tank. Air trapped above the element makes the filter run rough and the pressure gauge read badly, so a vent valve that no longer seals or no longer opens is worth attention in its own right.

When to replace the head

A filter head is a pressure part. Once it has cracked or is weeping at a seam it is replaced, not repaired, because a patched pressure vessel is a hazard on a running system.

Specifications
Brand Hayward
Manufacturer part number ECX1131P
UPC 610377024334
Type Filter head with vent valve
Color Platinum
Ivory version Same number without the P
Material Plastic
Part type Pool filter part
Fits Hayward Perflex EC30 and EC40 DE filters
Shipping weight 3.21 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between ECX1131P and ECX1131?
Color. The P is the platinum head, and the number without the P is the ivory one. The part is otherwise the same.
Does the vent valve come with it?
Yes. The head is supplied with the vent valve.
Which filter does this fit?
It is listed as a Perflex EC30 and EC40 DE filter part.
Can a cracked head be repaired instead?
A crack in a pressurized filter head is not a sound repair. The head is a pressure part, and once it has split it is replaced rather than patched.
Ask your own question
