Waterway 310-3670 SVL56 2HP impeller assemblyWaterway SVL56 2HP Impeller Assembly, 310-3670 In stock$5599
Waterway 310-3670 SVL56 2HP impeller assembly
Shop all Waterway

Waterway SVL56 2HP Impeller Assembly, 310-3670

Ask a questionMPN 310-3670
$5599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Matched to 2HP Impellers are cut for a horsepower rating, and this is the 2HP part for the SVL56.
  • Fits the SVL56 The impeller used in the Waterway SVL56 high flow pump.
  • Supplied as an assembly Sold as the impeller assembly rather than a bare vane.
  • Restores flow A worn or packed impeller is the usual reason a pump runs but moves very little water.
  • Order by number Waterway part 310-3670 pins down both the pump family and the horsepower.
  • Plan on a seal at the same time The shaft seal has to come apart to reach the impeller, so most techs replace both in one visit.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway SVL56 2HP Impeller Assembly, 310-3670, SKU WWP-101-3670. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway SVL56 2HP Impeller Assembly, 310-3670
Waterway

SVL56 2HP Impeller Assembly, 310-3670

$5599
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway

6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600

$7099
Waterway 3/8" Drain Plug, Black, 715-1201
Waterway

3/8" Drain Plug, Black, 715-1201

$499
Waterway Hi-Flo Pump Drain Plug O-Ring, 805-0111
Waterway

Hi-Flo Pump Drain Plug O-Ring, 805-0111

$342
Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230
Waterway

Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230

$799
Waterway O-Ring for 6" Trap Cover, 805-0436
Waterway

O-Ring for 6" Trap Cover, 805-0436

$799
Waterway Union Gasket 2", 711-4010
Waterway

Union Gasket 2", 711-4010

$1099
Subtotal

Similar products

Other products people compare with this one.

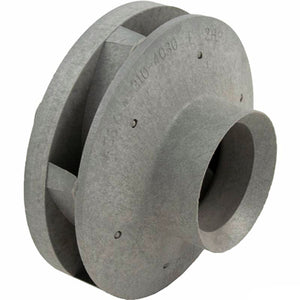

Waterway 310-4030 impeller for the 2 HP Hi Flo pump Waterway Impeller 2HP Hi Flo, 310-4030$2999 Waterway 310-5400 6 in. pump trap assembly with 1.5 in. by 1.5 in. connections Waterway 6" Pump Trap Assembly, 1.5" x 1.5", 310-5400$6999 Waterway 310-4190 4 HP impeller for Executive pool pumps Waterway 4 HP Impeller, 310-4190$3399 Waterway 310-6500 pump trap assembly, 1-1/2 in. by 2 in. Waterway Pump Trap Assembly, 1.5" x 2", 310-6500$7699 Waterway 310-4010 impeller for the 1-1/2 HP Hi Flo pump Waterway Impeller 1.5HP (Hi Flo), 310-4010$3299 Waterway 310-4180 Executive 5 HP closed face impeller Waterway Executive 5 HP Impeller, 310-4180$3399 Waterway 310-7510 1 HP impeller for the SMF pump Waterway 1 HP Impeller for SMF Pump, 310-7510$5999 Waterway 310-8030 1.5 HP E-Series impeller Waterway 1.5 HP E-Series Impeller, 310-8030$3799 Waterway 310-7420 high pressure impeller for 1 HP to 1.5 HP Champion pumps Waterway High Pressure Impeller, 1 HP to 1.5 HP, 310-7420$5499 Waterway 310-7470 high pressure diffuser assembly for Champion 56 and SVL56 pumps Waterway Diffuser Assembly, High Pressure, 310-7470$5999

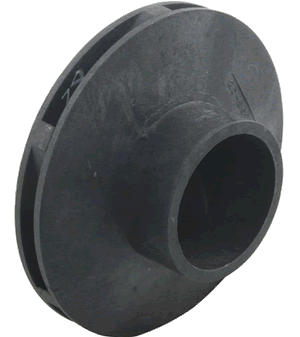

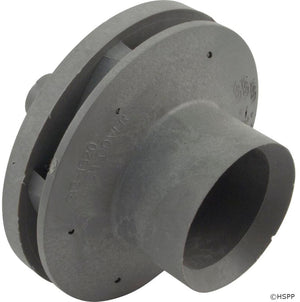

Waterway 310-4200 Executive 3 HP pool pump impeller Waterway Executive 3 HP Impeller, 310-4200$3296 Waterway 310-3990 3/4 HP impeller for Hi-Flo pool pumps Waterway Impeller 3/4 HP Hi-Flo, 310-3990$3199 Pentair 355604Z Challenger 2HP full rated impeller for high pressure models Pentair Challenger Impeller, 2HP Full Rated / 2-1/2HP Up Rated, High Pressure, 355604Z$6299 Pentair 355147 impeller for Challenger high pressure pool pumps Pentair 1/2HP Full Rated, 3/4HP Up Rated Impeller, High Pressure, 355147$6299 Waterway 310-1730 Executive 3 HP 2 inch wet end Waterway 3 HP 2" Executive Wet End, 310-1730$8199 Hayward SPX1500L genuine 1 HP impeller assembly for Power-Flo and Matrix pumps Hayward Genuine 1 HP Power-Flo Impeller Assembly, SPX1500L$4699 Hayward AX5060C .75 HP Viper booster pump impeller assembly Hayward .75 HP Viper Impeller Assembly, AX5060C$4299 Pentair 355122 1HP impeller assembly for Dynamo pool pumps Pentair Dynamo 1HP Impeller Assembly, 355122$4099 Waterway 550-1821 PVC flex hose assembly with 2 inch union and sweep 90 degree elbow Waterway PVC Flex Hose Assembly, 22" Filter, 550-1821$6599 Hayward SPX2715CM 2 HP MaxFlo II pump impeller Hayward 2HP MaxFlo II Impeller, SPX2715CM$6299

Product details

Waterway 310-3670 is the 2HP impeller assembly for the SVL56 high flow pump. It is the part that actually moves the water, and it is sized to the motor behind it.

Horsepower is not optional

Impellers are machined for one horsepower rating. The 2HP impeller is what a 2HP SVL56 was built with, and swapping in a different rating changes the flow and the load on the motor. Check the horsepower on the motor label before you order, not the label on the pump lid.

Symptoms of a worn impeller

A pump with a tired impeller still primes and still sounds normal, but the returns go soft and the filter pressure drops. Once you have ruled out a blocked basket, a dirty filter and a suction side air leak, the impeller is next: look for cracked or eroded vanes, and for hair and grit packed solid into the passages.

While you are in there

The impeller sits behind the shaft seal, so the seal has to be disturbed to get the impeller off. Most people order the seal with the impeller rather than doing the job twice.

Specifications
Brand Waterway
Manufacturer part number 310-3670
UPC 806105202390
Type Impeller Assembly
Horsepower 2HP
Fits Waterway SVL56 High-Flow Pump
Part type Pool Pump Part
Shipping weight 0.45 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2299 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3099 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$2099 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1699 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16799 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3999 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3399 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9999 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6899

Questions and answers

What people ask about this product, answered by our pool techs.

Which pump does this fit?
The Waterway SVL56 high flow pump, in the 2HP size.
Does the horsepower have to match?
Yes. An impeller is cut for a specific horsepower, so a 2HP impeller belongs behind a 2HP motor. Fitting a different rating changes the flow the pump was built around.
Is the shaft seal included?
No. The impeller assembly is sold on its own. The shaft seal is a separate part and is worth ordering at the same time, since the pump has to come apart either way.
How do I know the impeller is the problem?
If the pump primes and runs but pushes weak flow while the baskets and filter are clean, pull the impeller and look for cracked vanes or debris packed into the passages.
