Waterway 550-1821 PVC flex hose assembly with 2 inch union and sweep 90 degree elbowWaterway PVC Flex Hose Assembly, 22" Filter, 550-1821 In stock$6399

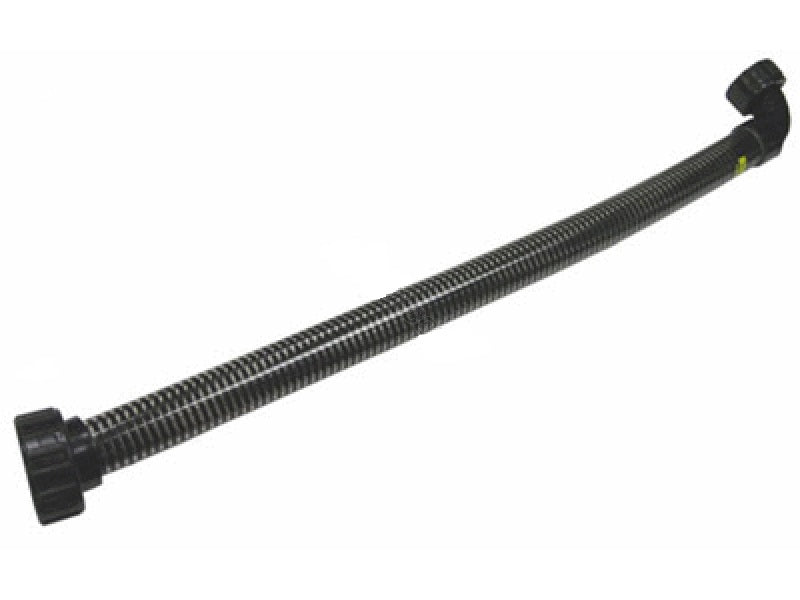

Waterway 550-1821 PVC flex hose assembly with 2 inch union and sweep 90 degree elbow
Shop all Waterway

Waterway PVC Flex Hose Assembly, 22" Filter, 550-1821

Ask a questionMPN 550-1821
$6399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pump to filter connection The flexible link that carries water from the pump discharge to the filter inlet.
  • Two different ends One end is a 2 inch union, the other is a sweep 90 degree elbow with a 1-1/2 inch union nut.
  • Measured thread sizes The 2 inch union nut threads measure about 3-1/16 inches and the 1-1/2 inch union nut threads about 2-9/16 inches.
  • Actual length 32 inches Measure your existing hose before ordering, since the listing size and the finished length are not the same number.
  • Sweep elbow instead of a hard bend The swept 90 keeps the turn into the filter gentle rather than pinching flow at a sharp corner.
  • Clearwater 19 inch sand filters Waterway lists this assembly as a fit for Clearwater 19 inch sand filters.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway PVC Flex Hose Assembly, 22" Filter, 550-1821, SKU WWP-051-0014. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway PVC Flex Hose Assembly, 22" Filter, 550-1821
Waterway

PVC Flex Hose Assembly, 22" Filter, 550-1821

$6399
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway

6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600

$7099
Waterway 3/8" Drain Plug, Black, 715-1201
Waterway

3/8" Drain Plug, Black, 715-1201

$499
Waterway Hi-Flo Pump Drain Plug O-Ring, 805-0111
Waterway

Hi-Flo Pump Drain Plug O-Ring, 805-0111

$399
Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230
Waterway

Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230

$799
Waterway O-Ring for 6" Trap Cover, 805-0436
Waterway

O-Ring for 6" Trap Cover, 805-0436

$799
Waterway Union Gasket 2", 711-4010
Waterway

Union Gasket 2", 711-4010

$1099
Subtotal

Similar products

Other products people compare with this one.

Waterway 310-5400 6 in. pump trap assembly with 1.5 in. by 1.5 in. connections Waterway 6" Pump Trap Assembly, 1.5" x 1.5", 310-5400$6799 Waterway 310-6500 pump trap assembly, 1-1/2 in. by 2 in. Waterway Pump Trap Assembly, 1.5" x 2", 310-6500$7499 Waterway 310-3670 SVL56 2HP impeller assembly Waterway SVL56 2HP Impeller Assembly, 310-3670$5499 Waterway 310-7470 high pressure diffuser assembly for Champion 56 and SVL56 pumps Waterway Diffuser Assembly, High Pressure, 310-7470$5899 Pentair 155726 pump to filter connection assembly for Cristal-Flo II filter systems Pentair Pump to Filter Connection Assembly for JWP/ABG to 16 in. Tank Cristal-Flo II Filter Systems, 155726$4204 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy R0449000 2 in. x 2-1/2 in. pump union assembly, set of two Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000$4999 Polaris P82 volute assembly, front housing for PB4-60Q Halcyon booster pump Polaris Booster Pump Volute Assembly (PB4-60Q)$7499 Pentair 072928Z black 3 HP diffuser assembly for WhisperFlo and IntelliFlo pumps Pentair Black WhisperFlo/IntelliFlo Diffuser Assembly 3HP, 072928Z$4199 Pentair 356238Z IntelliFlo 3.0 Energy Star diffuser assembly Pentair IntelliFlo 3.0 Energy Star Diffuser Assembly, 356238Z$9499
Hayward SPX3200SA shaft seal assembly for TriStar and NorthStar pumps Hayward SPX3200SA TriStar Shaft Seal Assembly$3999 Pentair 355320Z Challenger complete band clamp assembly Pentair Challenger Band Clamp Assembly, 355320Z$8099 Hayward SPX1600Z2 OEM pump shaft seal assembly Hayward Seal Assembly, OEM, SPX1600Z2$3399 Hayward SPX1500KA pump shaft seal assembly Hayward Seal Assembly for Power-Flo Matrix Pool Pump, SPX1500KA$4399 Polaris P19 six foot flexible reinforced pump hose for PB4-60 booster pump Polaris Genuine OEM 6' Pump Hose for PB4-60/PB4-60Q Booster Pump$4299 Hayward SPX1250XZ2C shaft seal assembly for the 5060 booster pump Hayward Shaft Seal Assembly for 5060 Booster Pump, SPX1250XZ2C$4999 Waterway 310-1740 Executive 4 HP complete wet end with 2 in. inlet and 2 in. side discharge Waterway Executive 4 HP 2 in. Wet End, 310-1740$8599 Hayward SPX1600TRA Super Pump seal assembly kit Hayward Super Pump Seal Assembly Kit, SPX1600TRA$4699 Pentair 356172Z almond lid assembly for the IntelliFlo3 pool pump Pentair Lid Assembly in Almond for IntelliFlo3 Pool Pump, 356172Z$5999 Waterway 319-3260 old style 6 inch trap easy lock pump lid Waterway 6" Trap Easy Lock Lid, 319-3260$3899

Product details

This is the Waterway 550-1821 pump to filter flex hose assembly, the short PVC run that connects the pump discharge to the filter inlet. It arrives complete with both fittings attached, so the repair is a matter of unscrewing two union nuts rather than cutting and gluing new pipe.

The two ends are different

One end carries a 2 inch union, whose nut threads measure about 3-1/16 inches across. The other end is a sweep 90 degree elbow with a 1-1/2 inch union nut, whose threads measure about 2-9/16 inches. Because the ends differ, the assembly only goes on one way round. Measuring the threads on the nuts you already have is the quickest way to confirm the match before ordering.

Length and fit

The finished assembly is 32 inches long. Waterway lists it for Clearwater 19 inch sand filters. The swept elbow keeps the turn into the filter gradual, which is easier on flow than a hard 90 degree corner.

Specifications
Brand Waterway
Manufacturer part number 550-1821
Type Pump to filter PVC flex hose assembly
Actual length 32"
End 1 2" union, union nut threads measure about 3-1/16"
End 2 Sweep 90 degree elbow with 1-1/2" union nut, union nut threads measure about 2-9/16"
Fits Clearwater 19" sand filters
Shipping weight 2.51 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

How long is the hose?
The actual length is 32 inches. The 22 inch figure in the name is the filter reference, not the finished length of the assembly.
Are both ends the same size?
No. One end is a 2 inch union and the other is a sweep 90 degree elbow with a 1-1/2 inch union nut, so the hose is directional.
How do I confirm the union sizes before ordering?
Measure the threads on your existing union nuts. The 2 inch nut threads come out around 3-1/16 inches and the 1-1/2 inch nut threads around 2-9/16 inches.
What filter is this made for?
Waterway lists it as a fit for Clearwater 19 inch sand filters, on the pump to filter run.
