Hayward AX5060C .75 HP Viper booster pump impeller assemblyHayward .75 HP Viper Impeller Assembly, AX5060C In stock$4299
Hayward AX5060C .75 HP Viper booster pump impeller assembly
Shop all Hayward

Hayward .75 HP Viper Impeller Assembly, AX5060C

Ask a questionMPN AX5060C
$4299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward AX5060C The factory impeller assembly for the .75 HP Viper booster pump.
  • Identify by the stamping The original part carries 5060C stamped into it, which is the quickest way to confirm you have the right one.
  • Replace the mechanical seal with it Hayward calls for a new shaft seal whenever the impeller comes off, and reusing the old seal is the usual cause of a repeat leak.
  • Booster pump model 5060 Listed for the Hayward cleaner booster pump, model 5060.
  • Plastic construction Molded plastic, matched to the original.
  • Weak cleaner is the symptom A worn or clogged impeller drops booster pressure, and the pressure side cleaner slows or stalls before the pump itself sounds wrong.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward .75 HP Viper Impeller Assembly, AX5060C, SKU HAY-201-5017. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward .75 HP Viper Impeller Assembly, AX5060C
Hayward

.75 HP Viper Impeller Assembly, AX5060C

$4299
Hayward Flush Union Connectors, SP1500UNPAK2C
Hayward

Flush Union Connectors, SP1500UNPAK2C

$2699
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1699
Hayward Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M
Hayward

Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M

$55799
Hayward OEM O-Ring, 2-1/2", SX220Z2
Hayward

OEM O-Ring, 2-1/2", SX220Z2

$2299
Hayward Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP
Hayward

Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP

$10599
Hayward Union Connector Kit, SPX3200UNKIT
Hayward

Union Connector Kit, SPX3200UNKIT

$5299
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX1500L genuine 1 HP impeller assembly for Power-Flo and Matrix pumps Hayward Genuine 1 HP Power-Flo Impeller Assembly, SPX1500L$4699 Hayward SPX3200SA shaft seal assembly for TriStar and NorthStar pumps Hayward SPX3200SA TriStar Shaft Seal Assembly$4099 Hayward SPX1600Z2 OEM pump shaft seal assembly Hayward Seal Assembly, OEM, SPX1600Z2$3399 Hayward SPX1500KA pump shaft seal assembly Hayward Seal Assembly for Power-Flo Matrix Pool Pump, SPX1500KA$4499 Hayward SPX1250XZ2C shaft seal assembly for the 5060 booster pump Hayward Shaft Seal Assembly for 5060 Booster Pump, SPX1250XZ2C$5099 Hayward SPX3010C Super II pump impeller, 1 HP full rate and 1-1/2 HP max rate Hayward Impeller, 1-1/2 HP Max Rated, 1 HP Full Rate, SPX3010C$5399 Hayward SPX1600TRA Super Pump seal assembly kit Hayward Super Pump Seal Assembly Kit, SPX1600TRA$4799 Hayward SPX1500LH 1 HP high performance impeller for the Power-Flo LX pump Hayward 1 HP PowerFlo LX Pump High Performance Impeller, SPX1500LH$4999 Hayward SPX3007C Super II pump impeller, 3/4 HP full rated Hayward Super II Impeller, 3/4 HP Full Rated, After 1987, SPX3007C$5399 Hayward SPX3210C TriStar 1 HP impeller with screw Hayward TriStar 1 HP Impeller with Screw, SPX3210C$5399

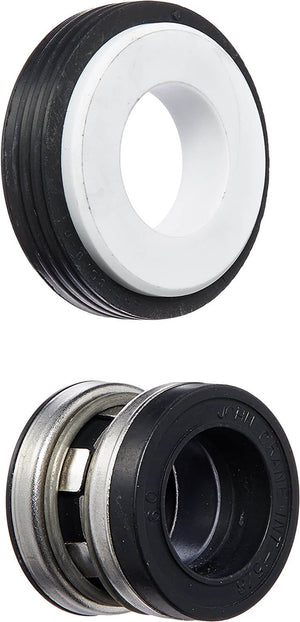

Hayward SPX3000TRA seal assembly kit for the Super II pump Hayward Seal Assembly Kit for Super II Pump, SPX3000TRA$6199 Hayward SPX5500E shroud assembly for the Matrix SP1590 pump Hayward Shroud Assembly for Matrix Pump SP1590, SPX5500E$5199 Hayward SPX2710CM 1.5 HP Max-Flo II pool pump impeller Hayward 1.5 HP MaxFlo II Impeller, SPX2710CM$4699 Hayward SPX1580CH hi performance 1.5 HP impeller for Power-Flo LX pumps Hayward Hi Performance Impeller, 1.5 HP (SP1520UN LX Only), SPX1580CH$5599 Waterway 310-3670 SVL56 2HP impeller assembly Waterway SVL56 2HP Impeller Assembly, 310-3670$5599 Hayward SPX2615C impeller for Super Pump and Super II pumps Hayward Super Pump and Super II Impeller, 2 HP Max Rate / 1-1/2 HP Full Rate, SPX2615C$6299 Hayward SPX3215C TriStar 1.5 HP impeller with impeller screw Hayward 1.5HP Impeller with Screw, TriStar, SPX3215C$6199 Hayward SPX4000SAV Viton shaft seal assembly for pool pumps Hayward Viton Shaft Seal Assembly, SPX4000SAV$5699 Pentair 355122 1HP impeller assembly for Dynamo pool pumps Pentair Dynamo 1HP Impeller Assembly, 355122$4099 Hayward SPX2715CM 2 HP MaxFlo II pump impeller Hayward 2HP MaxFlo II Impeller, SPX2715CM$6299

Product details

Hayward AX5060C is the replacement impeller assembly for the .75 HP Viper booster pump, model 5060. The original part is stamped 5060C, which is the fastest way to confirm the match once the pump is open.

What a tired impeller does to a cleaner

A booster pump exists to feed a pressure side cleaner. When the impeller wears, erodes or packs with debris, the pump still runs and still sounds normal, but the pressure it delivers falls off. The cleaner slows, loses its climb, or stops moving through its pattern. Owners usually chase the cleaner first and reach the booster pump last.

Replace the seal at the same time

Hayward is explicit about this: fit a new mechanical seal whenever the impeller comes off. The shaft seal assembly is a separate part number. Putting an old seal back behind a new impeller is the most common reason a rebuilt booster pump weeps within the season.

Specifications
Brand Hayward
Manufacturer part number AX5060C
UPC 610377744911
Type Impeller assembly
Material Plastic
Horsepower .75 HP
Fits Hayward Viper booster pump, model 5060
Identification Original part stamped 5060C
Part type Pool pump part
Shipping weight 0.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

How do I confirm this is my impeller?
The original Hayward part is stamped 5060C. If that marking is on the impeller you pulled out, AX5060C is the replacement.
Do I need anything else to do the job?
Yes. Hayward advises replacing the mechanical seal whenever you replace the impeller. The shaft seal assembly is a separate part number.
Which pump is it for?
The .75 HP Hayward Viper booster pump, model 5060.
What does a worn impeller look like from outside the pump?
Lost pressure. The booster runs but the pressure side cleaner moves slowly, climbs poorly, or stalls, because the impeller is no longer moving the water it should.
Ask your own question
