Hayward SX220Z2 2-1/2 in. bulkhead and diffuser o-ringHayward OEM O-Ring, 2-1/2", SX220Z2 In stock$2399

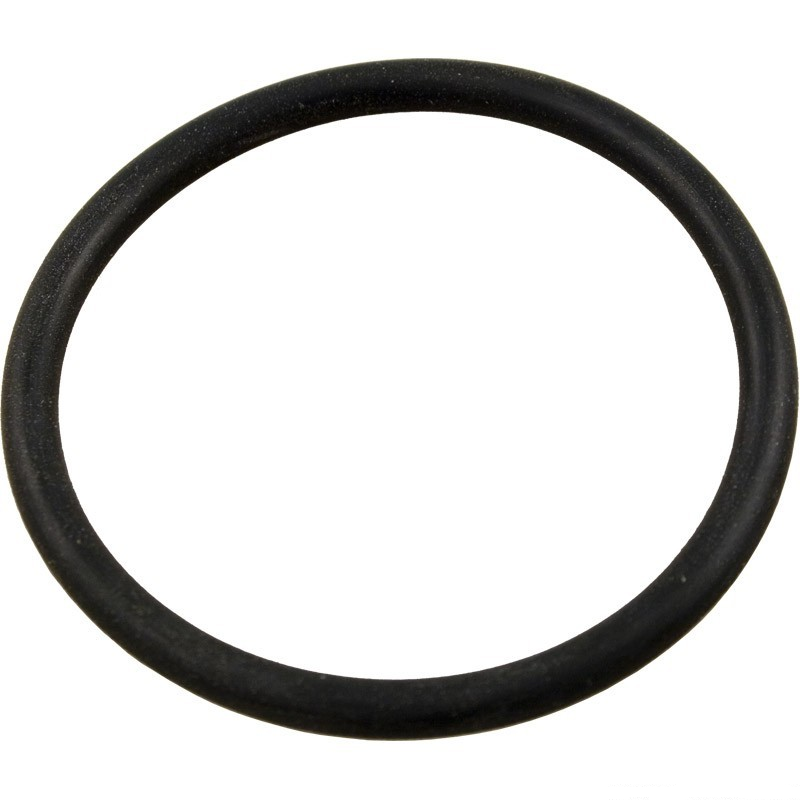

Hayward SX220Z2 2-1/2 in. bulkhead and diffuser o-ring
Shop all Hayward

Hayward OEM O-Ring, 2-1/2", SX220Z2

Ask a questionMPN SX220Z2
$2399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 2-1/2 in. ID, 3/16 in. section measure your old ring against these two numbers.
  • One ring, two jobs the diffuser o-ring on Max-Flo II and Max-Flo XL pumps, and the bulkhead o-ring on SwimClear cartridge and Pro-Grid DE filters.
  • SwimClear C2020, C2025, C3020, C3025, C4020, C4025, C5020, C5025, C5520, C7000 and the C2030 through C7030 series.
  • Pro-Grid DE2420, DE3620, DE4820, DE6020 and DE7220.
  • Genuine Hayward SX220Z2, the OEM part sized to Hayward's spec.
  • Losing prime? a flattened diffuser o-ring lets water bypass the impeller and costs you prime and flow.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward OEM O-Ring, 2-1/2", SX220Z2, SKU HAY-051-8242. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward OEM O-Ring, 2-1/2", SX220Z2
Hayward

OEM O-Ring, 2-1/2", SX220Z2

$2399
Hayward Flush Union Connectors, SP1500UNPAK2C
Hayward

Flush Union Connectors, SP1500UNPAK2C

$2799
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1799
Hayward Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M
Hayward

Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M

$55799
Hayward Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP
Hayward

Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP

$10899
Hayward Union Connector Kit, SPX3200UNKIT
Hayward

Union Connector Kit, SPX3200UNKIT

$5499
Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M
Hayward

1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M

$40399
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX1580Z1 Power-Flo LX pump housing o-ring Hayward Genuine OEM PowerFlo LX Pump Housing O-Ring, SPX1580Z1$1999 Pentair 152509 square section 8.5 in. closure o-ring for Challenger pumps Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509$1399 Pentair 355030 square profile high flow diffuser o-ring Pentair Genuine OEM High Flow Diffuser O-Ring, 355030$1899 Hayward SPX3200T housing o-ring for TriStar pumps Hayward Housing O-Ring SPX3200T$2899 Hayward SPX1600M Super Pump strainer basket, marked SP-1600-M Hayward Super Pump Basket (OEM), SPX1600M$3099 Hayward SPX3005R impeller ring, 2-3/8 in. outside diameter, for Super II pumps Hayward 0.75 HP to 1.5 HP Impeller Ring, 2-3/8 in. OD, SPX3005R$1699 Hayward SPX3200S black rubber strainer cover o-ring for TriStar pumps Hayward TriStar Strainer Cover O-Ring, SPX3200S$2499 Hayward SPX1600Z2 OEM pump shaft seal assembly Hayward Seal Assembly, OEM, SPX1600Z2$3399 Hayward SPX5500H Power-Flo Matrix strainer housing o-ring Hayward Power-Flo Matrix Strainer Housing O-Ring, SPX5500H$1699 Hayward SPX1500P strainer cover O-ring for Power-Flo pumps Hayward O-Ring, Strainer Cover for Power-Flo Pump, SPX1500P$1599
Hayward SPX3000S o-ring for the trap cover and strainer pot Hayward O-Ring for Trap Cover Strainer Pot, SPX3000S$2499 Hayward SPX3000M Super II pump strainer basket Hayward OEM Super II Strainer Basket, SPX3000M$3099 Hayward SPX0710XZ5 Power-Flo Matrix pump housing o-ring Hayward Power-Flo Matrix Housing O-Ring, SPX0710XZ5$2099 Hayward SPX2300Z4 Max-Flo XL strainer cover O-ring Hayward MaxFlo XL Strainer Cover O-Ring, SPX2300Z4$2499 Hayward O-RING STRAINER COVER #432 | SPX2700Z4 Hayward O-RING STRAINER COVER #432 | SPX2700Z4$2399 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1799 Jandy R0446000 drain plug with o-ring, set of 2 Jandy Drain Plug with O-Ring (Set of 2), R0446000$2099 Jandy R0449100 pump lid seal gasket with o-ring Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999 Pentair 355329Z square front housing o-ring for Challenger pool pumps Pentair Challenger Front Housing O-Ring, 355329Z$2399 Pentair 356189Z lid o-ring for IntelliFlo3 pool pump Pentair Lid O-Ring for IntelliFlo3 Pool Pump, 356189Z$2699

Product details

The Hayward SX220Z2 is a 2-1/2 in. inside diameter o-ring with a 3/16 in. cross section. Hayward uses the same ring in two places: as the diffuser o-ring on Max-Flo II and Max-Flo XL pumps, and as the bulkhead o-ring on SwimClear cartridge filters and Pro-Grid DE filters.

On the pump

The diffuser o-ring seals the diffuser to the seal plate. When it flattens or cracks, water recirculates inside the wet end instead of being pushed to the filter, and the symptoms are slow priming, weak flow and a pump that never quite fills the strainer lid.

On the filter

As a bulkhead o-ring it seals the fitting where the plumbing passes through the tank. It covers the SwimClear C2020, C2025, C3020, C3025, C4020, C4025, C5020, C5025, C5520 and C7000, the C2030 through C7030 series, and the Pro-Grid DE2420, DE3620, DE4820, DE6020 and DE7220.

Before you order

Measure the old ring. 2-1/2 in. across the inside and 3/16 in. thick is this part. Fit it with a light film of silicone o-ring lubricant.

Specifications
Brand Hayward
Manufacturer part number SX220Z2
UPC 610377055048
Inside diameter 2-1/2 in.
Cross section 3/16 in.
Use Bulkhead o-ring, diffuser o-ring
Fits pumps Hayward Max-Flo II, Max-Flo XL
Fits filters Hayward SwimClear C2020, C2025, C3020, C3025, C4020, C4025, C5020, C5025, C5520, C7000, C2030, C3030, C4030, C5030, C7030; Pro-Grid DE2420, DE3620, DE4820, DE6020, DE7220
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What size is it?
2-1/2 in. inside diameter with a 3/16 in. cross section.
Where is it used on a Max-Flo pump?
It is the diffuser o-ring on the Max-Flo II and Max-Flo XL, sealing the diffuser against the seal plate so water goes through the impeller instead of around it.
Where is it used on a SwimClear or Pro-Grid filter?
It is the bulkhead o-ring, sealing the bulkhead fitting where the plumbing passes through the tank wall.
Should I lubricate it?
A light coat of silicone based o-ring lubricant helps it seat and slows drying out. Keep petroleum products off it.
