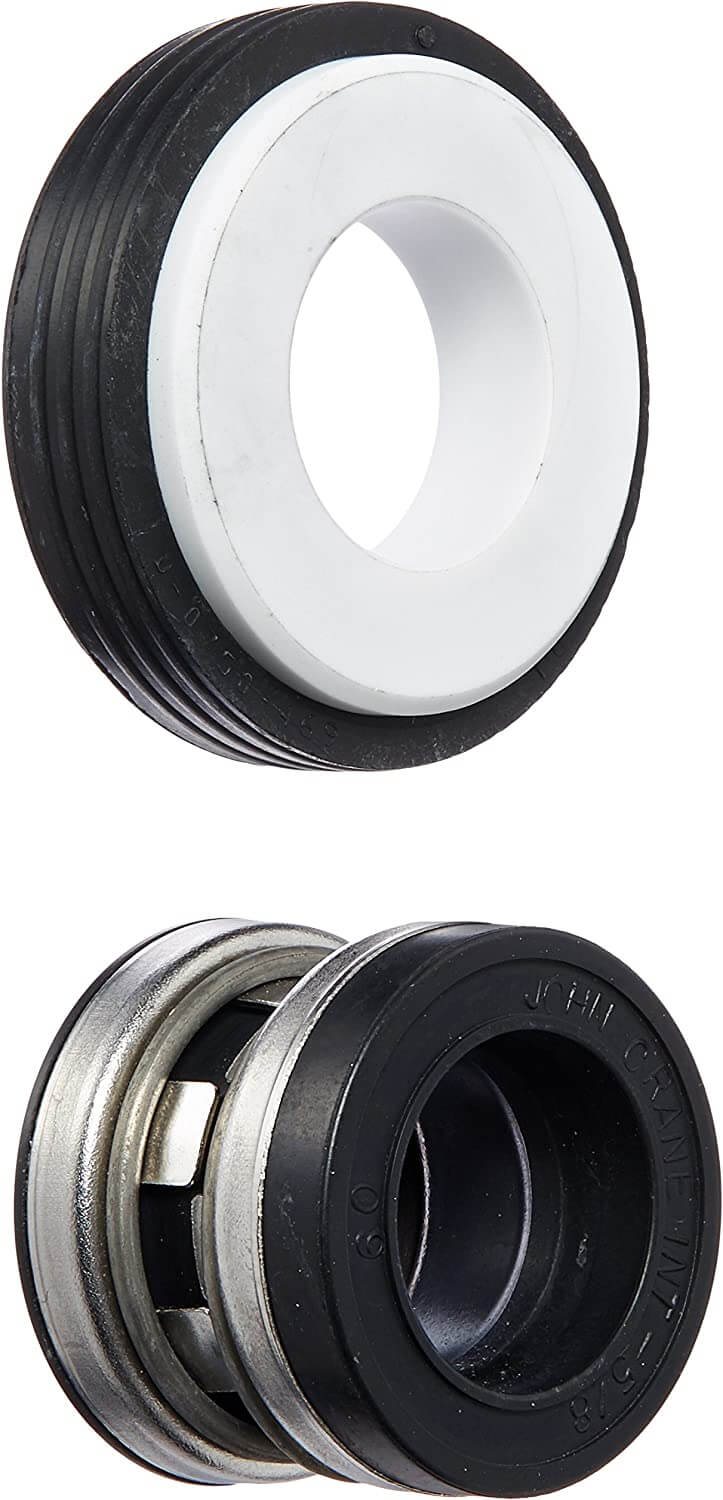

Hayward SPX4000SAV Viton shaft seal assembly for pool pumpsHayward Viton Shaft Seal Assembly, SPX4000SAV In stock$5599
Hayward SPX4000SAV Viton shaft seal assembly for pool pumps
Shop all Hayward

Hayward Viton Shaft Seal Assembly, SPX4000SAV

Ask a questionMPN SPX4000SAV
$5599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Factory part SPX4000SAV, supplied as a complete seal assembly.
  • Viton elastomer Chosen where heat or aggressive chemistry would shorten the life of a standard seal.
  • Complete assembly Both halves of the mechanical seal come together, since they are lapped as a pair and must be replaced as one.
  • Stops the classic leak Water tracking down the motor shaft and dripping between the pump and the motor is a shaft seal, not a gasket.
  • A leaking seal kills motors Water finding its way along the shaft reaches the motor bearings, and that turns a small part into a large one.
  • Handle the faces carefully Keep the polished seal faces clean and untouched during fitting, because a fingerprint or a speck of grit on them will make the new seal weep.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Viton Shaft Seal Assembly, SPX4000SAV, SKU HAY-101-1645. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Viton Shaft Seal Assembly, SPX4000SAV
Hayward

Viton Shaft Seal Assembly, SPX4000SAV

$5599
Hayward Flush Union Connectors, SP1500UNPAK2C
Hayward

Flush Union Connectors, SP1500UNPAK2C

$2699
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1699
Hayward Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M
Hayward

Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M

$55799
Hayward OEM O-Ring, 2-1/2", SX220Z2
Hayward

OEM O-Ring, 2-1/2", SX220Z2

$2299
Hayward Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP
Hayward

Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP

$10599
Hayward Union Connector Kit, SPX3200UNKIT
Hayward

Union Connector Kit, SPX3200UNKIT

$6199
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX3200SA shaft seal assembly for TriStar and NorthStar pumps Hayward SPX3200SA TriStar Shaft Seal Assembly$3999 Hayward SPX1250XZ2C shaft seal assembly for the 5060 booster pump Hayward Shaft Seal Assembly for 5060 Booster Pump, SPX1250XZ2C$4999 Hayward SPX1600Z2 OEM pump shaft seal assembly Hayward Seal Assembly, OEM, SPX1600Z2$3399 Hayward SPX1500KA pump shaft seal assembly Hayward Seal Assembly for Power-Flo Matrix Pool Pump, SPX1500KA$4399 Hayward SPX1600TRA Super Pump seal assembly kit Hayward Super Pump Seal Assembly Kit, SPX1600TRA$4699 SuperPro GO-KIT2V-9 Viton gasket and o-ring kit for Hayward Super II pumps SuperPro Go-Kit2V-9 Hayward® Super II Pump Seal Kit, Viton Seals$4399 Hayward SPX3000TRA seal assembly kit for the Super II pump Hayward Seal Assembly Kit for Super II Pump, SPX3000TRA$5999 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy R0445500 mechanical shaft seal, 13/16 in. ID, shown with both seal sizes for illustration Jandy Mechanical Shaft Seal, 13/16" ID, R0445500$3399 SuperPro GO-KIT32V-9 Viton Whisperflo pump seal rebuild kit SuperPro Viton Whisperflo Pump Seal Rebuild Kit, GO-KIT32V-9$3899
Pentair 354545S 5/8 inch mechanical shaft seal Pentair Mechanical Shaft Seal, 5/8", 354545S$3499 Super-Pro GO-KIT3V-9 Viton gasket and o-ring seal kit for the Hayward Super Pump SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9$3799 Sta-Rite 17351-0101S shaft seal for Dyna-Jet TPE Series pumps Sta-Rite Dyna-Jet Shaft Seal, 17351-0101S$4099 Polaris P55 OEM motor shaft seal for the PB4-60 booster pump Polaris Booster Pump OEM Shaft Seal$3399 SuperPro GOKIT82V-9 Viton gasket and o-ring kit for Jandy SHPF and SHPM Stealth pumps SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$4999 Hayward SPX3020E plastic seal plate for Super II pumps Hayward Seal Plate for Super II Pump, SPX3020E$6799 Hayward SPX3200E TriStar pump seal plate Hayward TriStar Seal Plate, SPX3200E$7199 Speck 2920343310 complete mechanical shaft seal for 21-80 BS pool pump Speck Complete Mechanical Shaft Seal for 21-80 BS Pool Pump, 2920343310$7199 Seal and gasket kit for Hayward TriStar pumps Go-Kit Seal and Gasket Kit for Hayward® TriStar Pumps, Go-Kit TriStar$5599 Hayward SPX3200Z211 TriStar housing insert and seal plate spacer kit Hayward TriStar Housing Insert & Seal Plate Spacer Kit, SPX3200Z211$3699

Product details

The Hayward SPX4000SAV is a genuine shaft seal assembly built with Viton, supplied as a complete matched set. It is the seal that keeps pumped water on the wet side of the pump and off the motor.

Why Viton

The difference between this and a standard seal is the elastomer. Viton holds up better against heat and against aggressive water chemistry, which makes it the sensible choice on installations where standard seals have not been lasting, or where the pump sees conditions harder than a typical residential pool.

The failure to catch early

A shaft seal announces itself as water dripping from between the pump housing and the motor. It is tempting to ignore a slow drip, but that water runs along the shaft toward the motor bearings. What starts as an inexpensive seal ends as a motor, and quite quickly. Most seals fail because the pump ran dry at some point, since the seal faces rely on water for both lubrication and cooling.

Fitting it

A mechanical seal is a lapped pair and is replaced as a pair, which is how it is supplied. Keep the polished faces clean and do not touch them during assembly. A fingerprint or a grain of sand on a seal face is enough to make a brand new seal weep from the first day.

Specifications
Brand Hayward
Manufacturer part number SPX4000SAV
UPC 610377330459
Type Shaft seal assembly
Elastomer Viton
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this seal fit?
The listing gives the part number rather than a fitment list. Check SPX4000SAV against the parts diagram for your pump, since seal assemblies look similar across models but are not interchangeable.
What is the difference between this and the standard seal?
The elastomer. This is the Viton version, which stands up better to heat and to aggressive water chemistry than the standard material. It is the choice where a standard seal has been failing early.
Can I replace just the half that is worn?
No. A mechanical seal is a matched pair, lapped together as a set. Fitting a new rotating face against an old stationary one will leak, so both halves are replaced together and are supplied that way.
Why did my seal fail?
Most often the pump was run dry, even briefly. Seals depend on water for lubrication and cooling, so losing prime or running a closed valve is enough to score the faces permanently.
