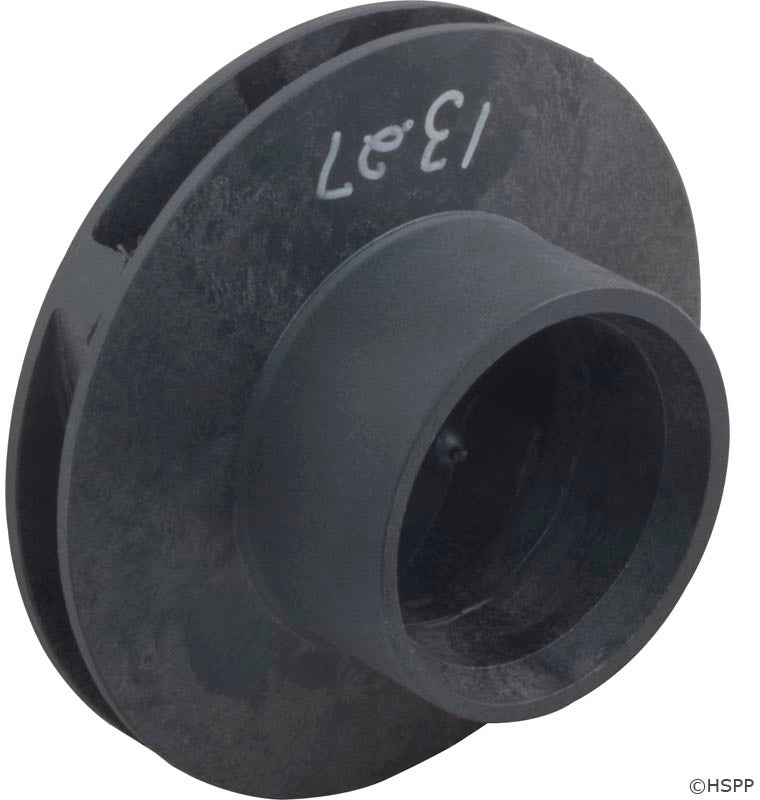

Jacuzzi 1HP impeller, 3-3/4 inch outside diameter, for J Series spa pumpsJacuzzi 1HP Impeller (3-3/4" Diameter), 5069-05A In stock$3799
Jacuzzi 1HP impeller, 3-3/4 inch outside diameter, for J Series spa pumps
Shop all Jacuzzi Bros.

Jacuzzi 1HP Impeller (3-3/4" Diameter), 5069-05A

Ask a questionMPN 5069-05A
$3799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • For Jacuzzi J Series Designed for Jacuzzi J Series spa pumps, and it may fit other Jacuzzi model pumps.
  • 1 horsepower Sized for the 1 HP pump, so it has to match the motor it goes on.
  • 3-3/4 in. outside diameter The headline measurement, and the first thing to check against the impeller you are replacing.
  • Full dimensions given Inlet diameters, thicknesses and shaft cover dimensions are all listed, so you can measure rather than guess.
  • Threads onto the motor shaft The shaft cover is where the impeller screws down onto the shaft.
  • New OEM part Supplied as an original equipment impeller, not a rebuilt one.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jacuzzi 1HP Impeller (3-3/4" Diameter), 5069-05A, SKU JAC-101-9510. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jacuzzi 1HP Impeller (3-3/4" Diameter), 5069-05A
Jacuzzi Bros.

Jacuzzi 1HP Impeller (3-3/4" Diameter), 5069-05A

$3799
Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2
Jacuzzi Bros.

Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2

$1199
Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07
Jacuzzi Bros.

Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07

$2599
Jacuzzi Motor Housing Bracket, 02136802R
Jacuzzi Bros.

Jacuzzi Motor Housing Bracket, 02136802R

$5099
Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D
Jacuzzi Bros.

Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D

$8899
Jacuzzi Basket Assembly for Magnum and Magnum Plus Pumps, 16109704R
Jacuzzi Bros.

Jacuzzi Basket Assembly for Magnum and Magnum Plus Pumps, 16109704R

$3499
Jacuzzi Strainer Basket for Cygnet, LR, SLR, Dominator, CLR and SharkJet Pumps, 16105215
Jacuzzi Bros.

Jacuzzi Strainer Basket for Cygnet, LR, SLR, Dominator, CLR and SharkJet Pumps, 16105215

$3199
Subtotal

Similar products

Other products people compare with this one.

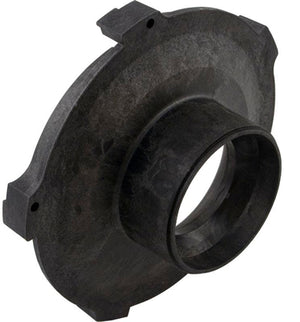

Jacuzzi 05-3854-06 pump impeller for 1hp full rated and 1.5hp uprated Magnum pumps Jacuzzi Impeller, 1hp FR - 1.5hp UR, 05-3854-06$4199 Jacuzzi 06016703R pump diffuser for 3/4 to 1 HP full rated and 1.5 HP up rated pumps Jacuzzi Diffuser 3/4-1HP FR/1.5HP UR, 06016703R$3599 Jacuzzi 05-3818-01 impeller for 2 HP full-rate Magnum pool pumps Jacuzzi 2 HP Full-Rate Impeller for Magnum Pumps, 05-3818-01$4102 Waterway WATERWAYS IMPELLER, 1HP, HI-FLO "C" | 310-4000 Waterway WATERWAYS IMPELLER, 1HP, HI-FLO "C" | 310-4000$2899 Polaris R0536400 impeller for the PB4-60 new style booster pump Polaris Genuine Replacement PB4-60 Booster Pump Impeller, R0536400$3499 Polaris P15 3/4 hp impeller for old style PB4-60 booster pump Polaris Genuine OEM Booster Pump Impeller, Old Style PB4-60$4199 Jandy R0446500 diffuser and impeller hardware O-ring kit Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3799 SuperPro GO-KIT14-9 seal kit for Jacuzzi Magnum pumps SuperPro Jacuzzi Magnum Pump Seal Kit, GO-KIT14-9$2999 Pentair LA05LZ new style impeller for the Letro booster pump Pentair New Style Impeller, Letro Booster Pump, LA05LZ$4499 Hayward SPX3010C Super II pump impeller, 1 HP full rate and 1-1/2 HP max rate Hayward Impeller, 1-1/2 HP Max Rated, 1 HP Full Rate, SPX3010C$5299
Sta-Rite 37337-6080 impeller screw for Dyna-Pro pumps Sta-Rite Impeller Screw for Dyna-Pro, 37337-6080$3399 Pentair 355093Z impeller, 2 HP full rated and 2-1/2 HP up rated high flow Pentair Impeller, 2 HP Full Rated / 2-1/2 HP Up Rated, High Flow, 355093Z$5499 Gecko Alliance 91694150 impeller for 1.5 HP XP2 pumps Gecko Impeller for 1.5 HP XP2 Pumps, 91694150$3499 Waterway 310-4190 4 HP impeller for Executive pool pumps Waterway 4 HP Impeller, 310-4190$3299 Hayward SPX1500LH 1 HP high performance impeller for the Power-Flo LX pump Hayward 1 HP PowerFlo LX Pump High Performance Impeller, SPX1500LH$4999 Sta-Rite C30-12 impeller screw for Max-E-Glas and Dura-Glas pumps Sta-Rite Impeller Screw, 1.5 HP Thru 3 HP, C30-12$1999 Hayward SPX3007C Super II pump impeller, 3/4 HP full rated Hayward Super II Impeller, 3/4 HP Full Rated, After 1987, SPX3007C$5299 Gecko 91694251 impeller for 2.5 HP XP2 pumps Gecko 91694251 Impeller for 2.5 HP XP2 Pumps$3499 Waterway 310-4010 impeller for the 1-1/2 HP Hi Flo pump Waterway Impeller 1.5HP (Hi Flo), 310-4010$3199 Waterway 310-4030 impeller for the 2 HP Hi Flo pump Waterway Impeller 2HP Hi Flo, 310-4030$2699

Product details

This is the 1 horsepower impeller for Jacuzzi J Series spa pumps, supplied as a new OEM part. It measures 3-3/4 in. across the outside diameter and may also fit other Jacuzzi model pumps.

Measure before you order

Impellers look alike and the wrong one either will not seat or will not move water. The dimensions are all listed here for that reason: 3-3/4 in. outside diameter, 15/32 in. thickness at the outside edge and 9/32 in. on the inside face, 3-1/4 in. from the end of the shaft to the front of the intake, an inlet of 2-1/16 in. outside and 1-13/16 in. inside, and a shaft cover 1-1/2 in. long by 5/8 in. across. Compare those against the impeller in your hand rather than going by pump model alone.

What a worn impeller looks like

The vanes wear thin, the eye of the impeller opens up, and small debris chips the edges. Flow drops off while the motor still runs at full speed and sounds normal, which is what separates a worn impeller from a clogged one. The shaft cover threads onto the motor shaft, so the impeller comes off with the motor, and the shaft seal should be replaced at the same time.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read
Specifications
Brand Jacuzzi
Manufacturer part number 5069-05A
Also listed as 05-3863-05-R
Type 1 HP impeller
Fits Jacuzzi J Series spa pumps, may fit other Jacuzzi model pumps
Outside diameter 3-3/4"
Thickness at outside edge 15/32"
Inside thickness at outside edge 9/32"
Front to back 3-1/4", from end of shaft to front on intake
Inlet outside diameter 2-1/16"
Inlet inside diameter 1-13/16"
Shaft cover length 1-1/2"
Shaft cover outside diameter 5/8"
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jacuzzi Bros.

Jacuzzi 13038203R sight glass deflector for DVK series dial valves Jacuzzi Sight Glass Deflector, 13038203R$1099 Jacuzzi 42212316R DE filter grid, 8-1/2 in by 18 in Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R$5199 Jacuzzi 39254701R plastic air bleeder valve with o-ring for pool filters Jacuzzi Air Bleeder Valve with O-Ring, 39254701R$999 Jacuzzi 47056999R 20 inch tank o-ring for Tri-Clops cartridge filters Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R$1699 Jacuzzi 42356907R DE filter grid, 8-1/2 by 12 inch Jacuzzi DE Filter Grid 8-1/2" x 12" (4 Required), 42356907R$4499 Jacuzzi 4626-16 drain cap with gasket Jacuzzi Drain Cap with Gasket, 4626-16$1299 Jacuzzi 1/4 inch PVC air bleed assembly for Earthworks and Tri-Clops filters Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08$3899 Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filters Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R$3299 Jacuzzi dirt catcher for CFR 100 cartridge filter, part 4666-15B Jacuzzi Dirt Catcher, CFR 100, 4666-15B5.0 (1) $12999 Jacuzzi 4638-03B DE filter grid, 7 inches by 18 inches Jacuzzi DE Filter Grid 7" x 18" (2 Required), 4638-03B$4999
Jacuzzi 4628-17 plastic sight glass for DVK-6 and DVK-7 dial valves Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17$1399 Jacuzzi replacement tank lid for CFR cartridge filters Jacuzzi Tank Lid for CFR 50, 75, 100 and 150 Cartridge Filters, 4666-13A$8499 Jacuzzi Bros lock ring for CFR, Landslide and Sand Trap filters Jacuzzi Lock Ring, 42285007$5499 Jacuzzi 43114404R W Series skimmer face flange Jacuzzi W Series Skimmer Face Flange, 43114404R$9699 Jacuzzi 10-1462-07 eye seal ring for 1/2 HP to 3 HP pumps Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07$2599 Jacuzzi 42-2995-03-R dirt catcher for the CFR 75 cartridge filter Jacuzzi Dirt Catcher, CFR 75, 42-2995-03-R$10599 Jacuzzi 1/4 inch black plastic drain plugs with o-rings, set of two Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2$1199 Jacuzzi 42357004R DE filter grid, 7 in by 12 in Jacuzzi DE Filter Grid 7" x 12" (2 Required), 42357004R$4299 Jacuzzi dirt catcher for the CFR 50 cartridge filter Jacuzzi Dirt Catcher, CFR 50, 4666-15$9099 Jacuzzi 42367102R filter lock ring for SherLok and Avalanche filters Jacuzzi Filter Lock Ring, 42367102R$7399

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this fit?
It is made for Jacuzzi J Series spa pumps, and may fit other Jacuzzi model pumps. Measure the old impeller against the dimensions listed before ordering.
How do I confirm it is the right impeller?
Check the outside diameter of 3-3/4 in. first, then the inlet inside diameter of 1-13/16 in. and the front to back length of 3-1/4 in. If all three match, you have the right part.
What part number is this?
It is listed under 5069-05A and also appears as 05-3863-05-R. Both numbers refer to this impeller.
Does it come with a seal?
No. This listing is the impeller alone. The shaft seal is a separate part, and it is worth replacing while the pump is open.
