Waterway 319-2160 six inch pump trap body with 1.5 inch by 1.5 inch portsWaterway 6" Trap Body, 1.5" x 1.5", 319-2160 In stock$4899
Waterway 319-2160 six inch pump trap body with 1.5 inch by 1.5 inch ports
Shop all Waterway

Waterway 6" Trap Body, 1.5" x 1.5", 319-2160

Ask a questionMPN 319-2160
$4899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Waterway Factory part 319-2160, the trap body Waterway builds for these pumps.
  • 6 inch trap The larger six inch strainer trap, which holds a bigger basket and more debris between cleanings.
  • 1.5 inch by 1.5 inch Ports sized 1.5 inch in and 1.5 inch out.
  • Center discharge pumps Listed for Waterway center discharge pool pumps.
  • Replaces a cracked housing A hairline crack in a trap body pulls air on the suction side, and no amount of lid sealing fixes it.
  • Body only The basket, lid and o-ring are separate parts, so check them while the pump is apart.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway 6" Trap Body, 1.5" x 1.5", 319-2160, SKU WWP-101-7090. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway 6" Trap Body, 1.5" x 1.5", 319-2160
Waterway

6" Trap Body, 1.5" x 1.5", 319-2160

$4899
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway

6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600

$7099
Waterway 3/8" Drain Plug, Black, 715-1201
Waterway

3/8" Drain Plug, Black, 715-1201

$499
Waterway Hi-Flo Pump Drain Plug O-Ring, 805-0111
Waterway

Hi-Flo Pump Drain Plug O-Ring, 805-0111

$342
Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230
Waterway

Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230

$799
Waterway O-Ring for 6" Trap Cover, 805-0436
Waterway

O-Ring for 6" Trap Cover, 805-0436

$799
Waterway Union Gasket 2", 711-4010
Waterway

Union Gasket 2", 711-4010

$1099
Subtotal

Similar products

Other products people compare with this one.

Waterway 319-2170 six inch pump trap body with 1-1/2 inch FPT inlet Waterway Trap Body 1.5" FPT / 1.5" x 2" Union, 319-2170$4799 Waterway 319-3260 old style 6 inch trap easy lock pump lid Waterway 6" Trap Easy Lock Lid, 319-3260$3999 Waterway 319-4100 new style 6 inch easy lock pump trap lid assembly Waterway 6" Trap Lid, Easy Lock, New Style, 319-4100$4199 Waterway 310-5400 6 in. pump trap assembly with 1.5 in. by 1.5 in. connections Waterway 6" Pump Trap Assembly, 1.5" x 1.5", 310-5400$6999 Waterway 319-3100B OEM pump seal set for SVL56 and Workman pumps Waterway OEM Pump Seal Set for SVL56 and Workman Pumps, 319-3100B$2599 Waterway 511-1310 trap lid for SVL56 pool pumps Waterway SVL56 Pump Trap Lid, 511-1310$5199 Waterway 319-3010B PS200 pump seal kit Waterway Pump Seal Kit 319-3010B (PS200)$2799 Sta-Rite 35505-1440Z trap cover o-ring for Max-E-Pro pumps Sta-Rite Trap Cover O-Ring, Max-E-Pro, 6-3/4" ID, 1/4" Thickness, 35505-1440Z$3199 Hayward SPX3000S o-ring for the trap cover and strainer pot Hayward O-Ring for Trap Cover Strainer Pot, SPX3000S$2499 Waterway 310-4190 4 HP impeller for Executive pool pumps Waterway 4 HP Impeller, 310-4190$3399
Pentair ZBR39320 Boost-Rite booster pump body kit with drain plug Pentair Boost-Rite Pump Body Kit with Drain Plug, ZBR39320$6699 Waterway 310-4010 impeller for the 1-1/2 HP Hi Flo pump Waterway Impeller 1.5HP (Hi Flo), 310-4010$3299 Waterway 310-4030 impeller for the 2 HP Hi Flo pump Waterway Impeller 2HP Hi Flo, 310-4030$2999 Waterway 310-4180 Executive 5 HP closed face impeller Waterway Executive 5 HP Impeller, 310-4180$3399 Waterway 310-7510 1 HP impeller for the SMF pump Waterway 1 HP Impeller for SMF Pump, 310-7510$5999 Waterway 310-3300 high flow diffuser for SVL56 pool pumps Waterway SVL56 High Flow Diffuser, 310-3300$6399 Waterway 310-8030 1.5 HP E-Series impeller Waterway 1.5 HP E-Series Impeller, 310-8030$3799 Waterway 310-3670 SVL56 2HP impeller assembly Waterway SVL56 2HP Impeller Assembly, 310-3670$5599 Waterway 310-7420 high pressure impeller for 1 HP to 1.5 HP Champion pumps Waterway High Pressure Impeller, 1 HP to 1.5 HP, 310-7420$5499 Waterway 311-1220 two inch volute face plate for Executive series pumps Waterway Volute Face Plate 2", 311-1220$4199

Product details

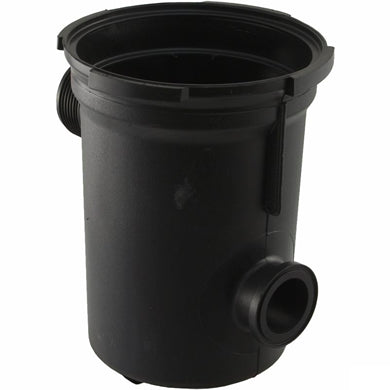

The Waterway 319-2160 is the six inch pump trap body with 1.5 inch by 1.5 inch ports, used on Waterway center discharge pool pumps. It is the genuine Waterway part.

What the trap body is

It is the housing ahead of the impeller that holds the strainer basket. Everything the suction line brings back arrives here first, and the six inch trap holds a larger basket, which means longer between emptying on a pool with a heavy leaf load.

When the body itself has to go

Most trap problems are sealing problems, solved with a lid o-ring. A cracked body is different. Cracks start at a port boss or where a union has been over tightened, and on the suction side they pull air rather than leak water, so the pump loses prime and there is nothing visible to point at. If the housing is cracked or the port threads are damaged, the body is replaced. While the pump is apart, look at the basket, the trap cover and its o-ring, all of which are ordered separately.

Specifications
Brand Waterway
Manufacturer part number 319-2160
UPC 806105065384
Type Pump strainer trap body
Trap size 6 inch
Ports 1.5 inch x 1.5 inch
Fits Waterway center discharge pool pumps
Shipping weight 1.8 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2299 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3099 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$2099 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1699 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16799 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3999 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3399 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9999 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6899

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this trap body fit?
Waterway center discharge pool pumps. It is Waterway part 319-2160.
What size are the ports?
1.5 inch by 1.5 inch, on the six inch trap.
Does it come with the basket and lid?
No. This is the trap body. The basket, the trap cover and the cover o-ring are separate Waterway parts.
Why would a trap body be replaced instead of resealed?
Because the leak is in the plastic, not the seal. Once the body cracks, usually at a port boss or where it has been over tightened, it draws air on the suction side and the pump loses prime no matter how well the lid seals.
Ask your own question
