Waterway 319-2170 six inch pump trap body with 1-1/2 inch FPT inletWaterway Trap Body 1.5" FPT / 1.5" x 2" Union, 319-2170 In stock$4599

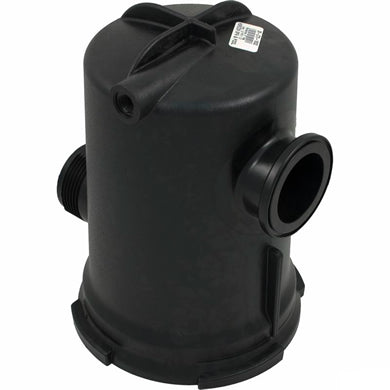

Waterway 319-2170 six inch pump trap body with 1-1/2 inch FPT inlet
Shop all Waterway

Waterway Trap Body 1.5" FPT / 1.5" x 2" Union, 319-2170

Ask a questionMPN 319-2170
$4599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Six inch trap The 6 inch basket body used on the Waterway Workhorse and Hi-Flo pumps.
  • Threaded inlet 1-1/2 inch FPT on the plumbing side.
  • Union flange outlet Connects to the pump through a union flange rather than a glued joint.
  • Measured flange diameters Pump side flange outside diameter is 2-7/8 inch and the plumbing side is 2-3/8 inch.
  • Replaces a cracked trap A trap body that has cracked or stripped a thread pulls air and cannot be patched.
  • Genuine Waterway Factory part number 319-2170.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Trap Body 1.5" FPT / 1.5" x 2" Union, 319-2170, SKU WWP-101-7100. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Trap Body 1.5" FPT / 1.5" x 2" Union, 319-2170
Waterway

Trap Body 1.5" FPT / 1.5" x 2" Union, 319-2170

$4599
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway

6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600

$7099
Waterway 3/8" Drain Plug, Black, 715-1201
Waterway

3/8" Drain Plug, Black, 715-1201

$499
Waterway Hi-Flo Pump Drain Plug O-Ring, 805-0111
Waterway

Hi-Flo Pump Drain Plug O-Ring, 805-0111

$399
Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230
Waterway

Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230

$799
Waterway O-Ring for 6" Trap Cover, 805-0436
Waterway

O-Ring for 6" Trap Cover, 805-0436

$799
Waterway Union Gasket 2", 711-4010
Waterway

Union Gasket 2", 711-4010

$1099
Subtotal

Similar products

Other products people compare with this one.

Waterway 319-2160 six inch pump trap body with 1.5 inch by 1.5 inch ports Waterway 6" Trap Body, 1.5" x 1.5", 319-2160$4799 Waterway 319-3260 old style 6 inch trap easy lock pump lid Waterway 6" Trap Easy Lock Lid, 319-3260$3899 Waterway 319-4100 new style 6 inch easy lock pump trap lid assembly Waterway 6" Trap Lid, Easy Lock, New Style, 319-4100$4099 Waterway 310-5400 6 in. pump trap assembly with 1.5 in. by 1.5 in. connections Waterway 6" Pump Trap Assembly, 1.5" x 1.5", 310-5400$6799 Waterway 319-3100B OEM pump seal set for SVL56 and Workman pumps Waterway OEM Pump Seal Set for SVL56 and Workman Pumps, 319-3100B$2499 Waterway 511-1310 trap lid for SVL56 pool pumps Waterway SVL56 Pump Trap Lid, 511-1310$4999 Waterway 319-3010B PS200 pump seal kit Waterway Pump Seal Kit 319-3010B (PS200)$2799 Sta-Rite PKG 189 union connection kit, 2 inch by 2 inch FPT Sta-Rite Union Connection Kit 2" x 2" FPT, PKG 189$5399 Jandy R0449000 2 in. x 2-1/2 in. pump union assembly, set of two Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000$4999 Hayward SP1500UNPAK2C 1-1/2 in. flush union connectors for Power-Flo pumps Hayward Flush Union Connectors, SP1500UNPAK2C$2699

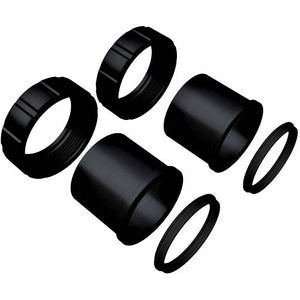

Pentair 410029 3 in. union kit for the 3 HP IntelliFlo3 pool pump Pentair 3" Union Kit for 3 HP IntelliFlo3 Pool Pump, 410029$6099 Hayward SPX3200UNKIT union connector kit with nut, connector and gasket Hayward Union Connector Kit, SPX3200UNKIT$6199 Hayward SP1500UNPAK2 female union connector 2 pack Hayward Union Connector, 2 Pack, SP1500UNPAK2$2399 Pentair 410028Z 2 in. and 2.5 in. union kit for the 3 HP IntelliFlo3 pool pump Pentair 2 in. and 2.5 in. Union Kit for 3 HP IntelliFlo3 Pool Pump, 410028Z$5299 Jandy R0327301 2 in. by 2 in. tailpiece O-ring and union nut kit, set of two Jandy 2" x 2" Tailpiece O-Ring and Union Nut Kit, Set of 2, R0327301$4899 Sta-Rite 35505-1440Z trap cover o-ring for Max-E-Pro pumps Sta-Rite Trap Cover O-Ring, Max-E-Pro, 6-3/4" ID, 1/4" Thickness, 35505-1440Z$3099 CMP 21063-350-000 SuperFlo pump union kit CMP Replacement SuperFlo Pump Union Kit, 21063-350-000$2999 Hayward SPX3000S o-ring for the trap cover and strainer pot Hayward O-Ring for Trap Cover Strainer Pot, SPX3000S$2499 Waterway 310-4190 4 HP impeller for Executive pool pumps Waterway 4 HP Impeller, 310-4190$3299 Pentair ZBR39320 Boost-Rite booster pump body kit with drain plug Pentair Boost-Rite Pump Body Kit with Drain Plug, ZBR39320$6499

Product details

The Waterway 319-2170 is the six inch trap basket body used on the Workhorse and Hi-Flo pumps. It is the housing the strainer basket sits inside, ahead of the pump wet end.

Connections

The plumbing side is a 1-1/2 inch FPT thread. The source describes the union side two ways, as a 1.5 inch by 2 inch union in the product title and as a 1.5 inch FPT by 2 inch union flange in the description, so both are listed in the specifications above. The reliable way to check fit is by the flange diameters: 2-7/8 inch outside diameter on the pump side and 2-3/8 inch outside diameter on the plumbing side. Measure the trap you are removing before you order.

When to replace it

A trap body is a pressure vessel with threads in it. Once it has cracked from freezing, stripped an inlet thread or split around the union, it draws air on every cycle and the pump loses prime. There is no lasting repair for a cracked trap.

This part is the body alone. The trap cover, the cover o-ring and the strainer basket are all sold separately, and the o-ring in particular is worth renewing while the pump is open.

Specifications
Brand Waterway
Manufacturer part number 319-2170
UPC 806105065407
Type Pump trap basket body
Trap size 6 inch
Inlet 1-1/2 inch FPT
Union, as listed in the title 1-1/2 inch x 2 inch union
Union flange, as listed in the description 1-1/2 inch FPT x 2 inch union flange
Pump side flange outside diameter 2-7/8 inch
Plumbing side outside diameter 2-3/8 inch
Fits Waterway Workhorse and Hi-Flo pumps
Part type Pool Pump Part
Shipping weight 2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

What are the connection sizes?
The source lists this two ways: the title reads 1.5 inch FPT with a 1.5 inch by 2 inch union, and the description reads 1.5 inch FPT by 2 inch union flange. Both readings are carried here, so measure your existing trap before ordering.
How do I confirm it will fit?
Go by the flange diameters. The pump side flange measures 2-7/8 inch outside diameter and the plumbing side measures 2-3/8 inch outside diameter.
Which pumps use this trap body?
The Waterway Workhorse and Hi-Flo pumps.
Is the basket or the lid included?
No. This is the trap body only. The trap cover, the cover o-ring and the strainer basket are separate Waterway parts.
