Waterway 315-1400 Champion pump housing, new style without brass insertsWaterway Champion Pump Housing, New Style, 315-1400 In stock$23099
Waterway 315-1400 Champion pump housing, new style without brass inserts
Shop all Waterway

Waterway Champion Pump Housing, New Style, 315-1400

Ask a questionMPN 315-1400
$23099
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • New style, no brass inserts Waterway kept the part number but changed the design, so the current housing has open holes where the inserts used to be.
  • Needs a longer bolt The old housing took a shorter bolt into the brass insert. The new one takes a longer bolt with a nut and washer.
  • Trap basket housing This is the strainer pot section of the pump, the part that holds the basket.
  • For the Champion 56 frame Listed for the Waterway Champion 56 frame pump and the CHAMPS model.
  • Genuine Waterway Factory part 315-1400.
  • Hardware sold separately The bolt, nut and washer are not included, so plan to order them with the housing.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Champion Pump Housing, New Style, 315-1400, SKU WWP-101-1400. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Champion Pump Housing, New Style, 315-1400
Waterway

Champion Pump Housing, New Style, 315-1400

$23099
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway

6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600

$7099
Waterway 3/8" Drain Plug, Black, 715-1201
Waterway

3/8" Drain Plug, Black, 715-1201

$499
Waterway Hi-Flo Pump Drain Plug O-Ring, 805-0111
Waterway

Hi-Flo Pump Drain Plug O-Ring, 805-0111

$342
Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230
Waterway

Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230

$799
Waterway O-Ring for 6" Trap Cover, 805-0436
Waterway

O-Ring for 6" Trap Cover, 805-0436

$799
Waterway Union Gasket 2", 711-4010
Waterway

Union Gasket 2", 711-4010

$1099
Subtotal

Similar products

Other products people compare with this one.

Pentair LA295 new style seal bracket for the Letro booster pump Pentair Seal Bracket, Booster Pump, New Style, LA295$13799 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24899 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$30499 Pentair 350089Z SuperFlo pump housing volute Pentair Superflo Pump Housing, Volute, 350089Z$26599 Polaris R0723100 PB4SQ booster pump housing body Polaris PB4SQ Booster Pump Housing Body, R0723100$12099 Swimables SW-21-149 WhisperFlo style pump wet end with high temp unions, 0.5 to 2 HP Swimables Generic WhisperFlo Style Pump Wet End, 0.5 to 2 HP, with High Temp Unions, SW-21-149$32699 Hayward SPX5500C strainer housing for the Power-Flo Matrix SP1590 pump Hayward PowerFlo Matrix Pump Strainer Housing, SPX5500C$12499 Pentair 356002Z Pinnacle high flow pump housing in almond Pentair Pinnacle Pump Housing, Almond, 356002Z$29999 Swimables SW-21-150 generic Whisperflo IntelliFlo style 3 HP pump wet end Swimables Generic Whisperflo IntelliFlo Style Pump Wet End, 3 HP with High Temp Unions, SW-21-150$33799 Pentair 357157 black volute replacement housing for WhisperFlo WFE pump and pot Pentair Black Volute Replacement Housing for WhisperFlo WFE Pump and Pot, 357157$23199
Hayward HOUSING 2" SUPER SPA PUMP | SPX3520AA Hayward HOUSING 2" SUPER SPA PUMP | SPX3520AA$26799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair 355468Z Challenger pump front housing, black, slip suction Pentair Challenger Front Housing, Slip Suction, Black, 355468Z$13999 Pentair 355300 Challenger pump strainer pot housing Pentair Challenger Pump Strainer Pot, 355300$13999 Hayward SPX2615CKIT 2 HP Super Pump drive train upgrade kit contents Hayward 2 HP Super Pump Drive Train Upgrade Kit, SPX2615CKIT$22099 Val-Pak V38-131 replacement seal plate for American Products Ultra-Flow pumps Val-Pak Ultra Flow Pump Replacement Seal Plate, V38-131$14499 Pentair 356175Z strainer pot kit in almond for the 3 HP IntelliFlo3 pool pump Pentair Strainer Pot Kit for 3 HP IntelliFlo3 Pool Pump, Almond, 356175Z$25899 Sta-Rite 351089Z black SuperMax volute housing Sta-Rite Black SuperMax Volute Housing 351089Z$25499 Pentair 400002Z XF Series seal plate for the WhisperFlo XF pump Pentair XF Series Seal Plate for WhisperFlo XF Pump, 400002Z$17999 Val-Pak V38-130 black 2 inch Ultra-Flow volute housing, part 357140 Val-Pak Ultra-Flow Volute Housing 2", Black, V38-130$17399

Product details

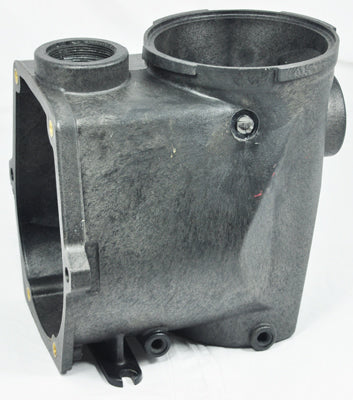

The Waterway 315-1400 is the Champion pump housing, the trap basket section that holds the strainer basket ahead of the impeller. This is the current new style version.

Read this before ordering

Waterway kept the part number the same and changed the design substantially. The old housing had brass inserts molded into the bolt positions, which took a shorter bolt threaded into the insert. The new housing has plain holes where those inserts used to be, and it uses a longer bolt with a nut and a washer instead. If you are replacing an original brass insert housing, your existing bolts will not work with this part.

The hardware

The bolt, nut and washer are separate items and are not supplied with the housing. It is worth ordering them at the same time so the pump can go back together in one session rather than two.

Fitment

The housing is listed for the Waterway Champion 56 frame pump, referenced as the CHAMPS model. It is the genuine Waterway part, 315-1400.

Specifications
Brand Waterway
Manufacturer part number 315-1400
UPC 806105236906
Type Pump trap basket housing
Style New style, without brass inserts
Fits Waterway Champion 56 frame pump, CHAMPS model
Hardware note Uses a longer bolt than the previous brass insert housing
Part type Pool pump part
Shipping weight 8.17 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2299 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3099 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$2099 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1699 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16799 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3999 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3399 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9999 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6899

Questions and answers

What people ask about this product, answered by our pool techs.

Why does my old housing look different?
Waterway kept the part number and changed the design. The older housing had brass inserts molded into it that accepted a shorter bolt. The current housing has plain holes in those positions and uses a longer bolt instead.
Do I need new bolts?
Yes, if you are coming off the old brass insert housing. The new design takes a longer bolt along with a nut and a washer, and none of that hardware is included with the housing.
Which pump is this for?
The Waterway Champion 56 frame pump. The listing references the CHAMPS model.
What part of the pump is this?
The trap basket housing, also called the strainer pot. It is the front section that holds the pump basket ahead of the impeller.
