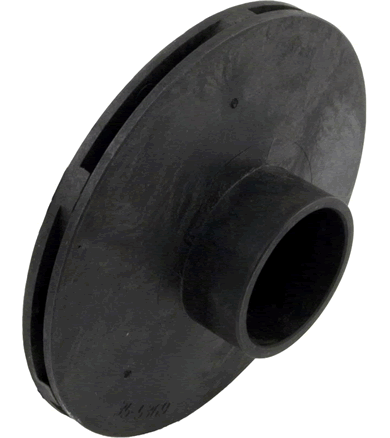

Pentair 355369Z Challenger high pressure impeller, 1HP full ratedPentair Challenger Impeller, 1HP Full Rated / 1-1/2HP Up Rated, High Pressure, 355369Z In stock$5899
Pentair 355369Z Challenger high pressure impeller, 1HP full rated
Shop all Pentair

Pentair Challenger Impeller, 1HP Full Rated / 1-1/2HP Up Rated, High Pressure, 355369Z

Ask a questionMPN 355369Z
$5899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory part 355369Z, also listed under the number 355369.
  • Matched to the horsepower Sized for the 1 HP full rated and 1-1/2 HP up rated Challenger, which are the same motor described two ways.
  • High pressure models This impeller is for the high pressure version of the Challenger, not the standard build.
  • The part that moves the water The impeller is what the motor actually spins, so a worn or blocked one shows up straight away as lost flow.
  • Check for wear at the vanes Impellers thin out and chip at the vane edges, and a cracked vane throws the whole rotating assembly out of balance.
  • Match the number, not the look Challenger impellers of different ratings are very similar in appearance, so go by 355369Z rather than by eye.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Challenger Impeller, 1HP Full Rated / 1-1/2HP Up Rated, High Pressure, 355369Z, SKU PAC-101-3139. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Challenger Impeller, 1HP Full Rated / 1-1/2HP Up Rated, High Pressure, 355369Z
Pentair

Challenger Impeller, 1HP Full Rated / 1-1/2HP Up Rated, High Pressure, 355369Z

$5899
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509
Pentair

Genuine OEM O-Ring, Square 8.5 in. Closure, 152509

$1299
Pentair Challenger Front Housing, Slip Suction, Black, 355468Z
Pentair

Challenger Front Housing, Slip Suction, Black, 355468Z

$13999
Pentair Challenger Pump Strainer Pot, 355300
Pentair

Challenger Pump Strainer Pot, 355300

$13999
Pentair Challenger Front Housing O-Ring, 355329Z
Pentair

Challenger Front Housing O-Ring, 355329Z

$2299
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Subtotal

Similar products

Other products people compare with this one.

Pentair 355147 impeller for Challenger high pressure pool pumps Pentair 1/2HP Full Rated, 3/4HP Up Rated Impeller, High Pressure, 355147$6199 Pentair 355270Z diffuser for Challenger high pressure pumps Pentair Challenger Diffuser, 1-1/2 HP Full Rated, 2 HP Up Rated, High Pressure, 355270Z$3899 Pentair 355545Z diffuser for 2 HP full rated to 3 HP up rated Challenger high pressure pumps Pentair Diffuser, 2 HP Full Rated / 3 HP Up Rated, High Pressure, 355545Z$5699 Pentair 355074Z high flow pump impeller, 1 HP full rated and 1.5 HP up rated Pentair Super Flo/Max Impeller, 1 HP Full Rated / 1.5 HP Up Rated, High Flow, 355074Z$6099 Pentair 355086Z high flow impeller for SuperFlo, SuperMax and Challenger pumps Pentair SuperFlo and SuperMax Impeller, 1.5 HP Full Rated / 2 HP Up Rated, High Flow, 355086Z$5999 Pentair 355093Z impeller, 2 HP full rated and 2-1/2 HP up rated high flow Pentair Impeller, 2 HP Full Rated / 2-1/2 HP Up Rated, High Flow, 355093Z$5499 Pentair 355068Z 3HP high flow impeller for Challenger pumps Pentair Impeller 3HP, High Flow, 355068Z$5399 Pentair 355301Z Challenger strainer pot lid Pentair Genuine OEM Challenger Strainer Pot Lid, 355301Z$6399 Pentair 355320Z Challenger complete band clamp assembly Pentair Challenger Band Clamp Assembly, 355320Z$8099 Pentair 355318Z genuine OEM Challenger pump strainer basket Pentair Genuine OEM Challenger Strainer Basket, 355318Z$4399
Pentair 355305Z Challenger pump base Pentair Challenger Pump Base, 355305Z$4999 Pentair 354629 stainless steel band assembly without knob for Challenger pumps Pentair Challenger Band Assembly without Knob, 354629$8199 Pentair PacFab Challenger Front Housing O-Ring 355329Z | 355329 Pentair PacFab Challenger Front Housing O-Ring 355329Z | 355329$3099 Pentair 354545S 5/8 inch mechanical shaft seal Pentair Mechanical Shaft Seal, 5/8", 354545S$3499 Pentair 355004Z black seal plate for Challenger High Flow and High Pressure pumps Pentair Challenger Seal Plate, High Pressure, 355004Z$9799 Pentair 355317 mounting plate gasket for high pressure pool pumps Pentair Mounting Plate Gasket, 3/4 HP to 3 HP, High Pressure, 355317$2199 Pentair 355330 Challenger strainer pot flange o-ring, 2-3/8 inch ID Pentair Challenger Strainer Pot Flange O-Ring$1099 Pentair 355331Z Waterfall and Challenger pump diffuser o-ring Pentair Waterfall/Challenger Pump Diffuser O-Ring, 355331Z$1099 Pentair 355389 left hand thread impeller locking screw Pentair Impeller Locking Screw, 355389$999 Pentair Basket Strainer 5HP Challenger Stainless Steel | 355901 Pentair Basket Strainer 5HP Challenger Stainless Steel | 355901$35599

Product details

The Pentair 355369Z is the impeller for the high pressure Challenger pump at the 1 HP full rated and 1-1/2 HP up rated size. It also appears in Pentair literature as 355369; both numbers refer to the same part.

Full rated and up rated

The two horsepower figures describe one motor. Full rated and up rated are different conventions for stating output, and a 1 HP full rated motor delivers what a 1-1/2 HP up rated motor delivers. That is why a single impeller covers both, and why the label on your motor may not match the number you searched for.

Ordering the right one

Challenger impellers across the range look much alike, and the high pressure models take their own parts. Go by the part number and the rating on the motor plate rather than by appearance. If the pump is open far enough to change the impeller, it is also open far enough to reach the diffuser, the seal and the locking screw, which are worth inspecting while you are there.

Specifications
Brand Pentair
Manufacturer part number 355369Z
Also listed as 355369
UPC 788379658786
Part type Pool Pump Part
Type Impeller
Rating 1 HP full rated, 1-1/2 HP up rated
Fits Pentair Challenger high pressure pump, 1 hp full rated to 1-1/2 hp up rated
Shipping weight 0.35 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between 355369 and 355369Z?
They are the same impeller. Pentair carries it under both numbers, and the Z suffix is how it is most often listed now.
What does 1 HP full rated and 1-1/2 HP up rated mean?
One motor, two ways of stating its output. A 1 HP full rated motor and a 1-1/2 HP up rated motor are the same power, so a single impeller covers both descriptions.
Will it fit a standard Challenger?
This is the impeller for the high pressure Challenger. Check which version of the pump you have before ordering, since the standard models take a different impeller.
How do I tell the impeller is worn?
Flow drops off while the motor still sounds normal. Pull the impeller and look at the vanes: thinning edges, chips or a crack means it needs replacing, and so does anything packed solid with debris that will not clear.
