Val-Pak V38-137 cam and ramp locking ring for Ultra-Flow pump trapsVal-Pak Locking Ring V38-137 In stock$7199
Val-Pak V38-137 cam and ramp locking ring for Ultra-Flow pump traps
Shop all Val-pak

Val-Pak Locking Ring V38-137

Ask a questionMPN V38-137
$7199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Cam and ramp style The locking ring pattern used on Ultra-Flow trap lids, not the older band clamp.
  • Post 1994 traps Fits American Products, now Pentair, Ultra-Flow pool pump traps manufactured after 1994.
  • Carries the Pentair number The same ring is listed by Pentair as 39105000 and manufactured by Val-Pak.
  • Clamps the lid down Draws the lid onto the trap so the pump can hold prime instead of pulling air.
  • Check the vintage first Traps built before 1994 use a metal band clamp and take a different part.
  • Replaces a cracked ring A ring that has gone brittle or cracked will never seal the lid properly again.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Val-Pak Locking Ring V38-137, SKU VAL-101-2999. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Val-Pak Locking Ring V38-137
Val-pak

Val-Pak Locking Ring V38-137

$7199
Pentair Locking Lid O-Ring for Ultra Flo Pump, 39300600
Pentair

Locking Lid O-Ring for Ultra Flo Pump, 39300600

$499

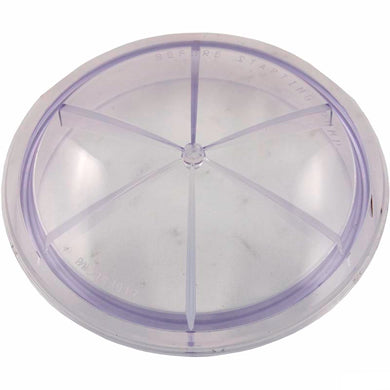

Val-Pak Ultra-Flow Lid (After 11/94), V38-162
Val-pak

Val-Pak Ultra-Flow Lid (After 11/94), V38-162

$6499
Val-Pak Ultra Flow Pump Replacement Seal Plate, V38-131
Val-pak

Val-Pak Ultra Flow Pump Replacement Seal Plate, V38-131

$14899
Pentair Diffuser Gasket for Ultra-Flow, 39006600
Pentair

Diffuser Gasket for Ultra-Flow, 39006600

$899
Pentair Union Nut Replacement, 98212200
Pentair

Union Nut Replacement, 98212200

$1699
Val-Pak Wear Ring V38-134
Val-pak

Val-Pak Wear Ring V38-134

$2899
Subtotal

Similar products

Other products people compare with this one.

Pentair 400006 WhisperFlo XF lid and locking ring assembly Pentair WhisperFlo XF Lid and Locking Ring, 400006$5999 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Polaris R0536300 front housing volute with o-ring for new style PB4-60 booster pumps Polaris Front Housing Volute Cover with O-Ring, R0536300$6899 Jandy R0445400 diffuser kit with o-rings, screws and washers for 0.5 to 3 HP pumps Jandy 0.5 HP to 3 HP Diffuser with O-Ring and Hardware, R0445400$8199 Jandy R0480000 clear pump lid with locking ring for FloPro pumps Jandy Lid with Lock Ring, R0480000$7223 Jandy R0479603 1.5 HP impeller with o-ring and screw for the FloPro FHPM pump Jandy 1.5 HP Impeller with O-Ring and Screw, FHPM, R0479603$5999 Jandy R0446500 diffuser and impeller hardware O-ring kit Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3899 Jandy R0479701 Flo Pro FHPM pump diffuser with o-ring and screw Jandy Diffuser with O-Ring & Screw FHPM 1.5-2.5 HP, R0479701$5699 Jandy R0327301 2 in. by 2 in. tailpiece O-ring and union nut kit, set of two Jandy 2" x 2" Tailpiece O-Ring and Union Nut Kit, Set of 2, R0327301$4999 Jandy R0479602 1 HP pump impeller with o-ring and screw Jandy 1 HP Impeller with O-Ring and Screw, R0479602$5999
Pentair 356780Z EQ Series seal plate O-ring Pentair EQ Series Seal Plate O-Ring, 356780Z$5899 Jandy R0479702 diffuser with O-ring and screw Jandy Diffuser with O-Ring and Screw, R0479702$5699 Jandy R0807201 1.5 HP impeller kit with screw and o-ring Jandy 1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201$6099 Jandy R0479605 2-1/2 HP FloPro impeller with screw and back-up plate O-ring Jandy 2-1/2 HP Impeller with Screw and Back-Up Plate O-Ring, R0479605$5999 Hayward SPX1500D2A clear cover strainer lid with o-ring Hayward Cover Strainer Lid with O-Ring, SPX1500D2A$6999 Jandy R0807203 0.75 HP impeller kit for Stealth and PlusHP pumps Jandy .75 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807203$6299 Hayward SPX4000TS strainer cover T-ring for NorthStar pumps Hayward Strainer Cover T-Ring, SPX4000TS$4999 CMP 25306-000-020 replacement Hayward Power-Flo pump lid with o-ring CMP Replacement Hayward Power-Flo LX Pump Lid with O-Ring SPX1500D2A, 25306-000-020$4199 Hayward SPX4000S Northstar pump strainer cover o-ring Hayward OEM Strainer Cover O-Ring for Northstar Pump, SPX4000S$4599 Jandy R0807205 3 HP SHP impeller kit with screw and o-ring Jandy 3 HP SHP Impeller Kit with Screw and O-Ring, R0807205$6099

Product details

The Val-Pak V38-137 is the cam and ramp locking ring for the Ultra-Flow pump trap. Pentair lists the same part as 39105000, and it is manufactured by Val-Pak.

Which trap it suits

It fits American Products, now Pentair, Ultra-Flow pool pump traps manufactured after 1994. Traps built before that changeover used a metal band clamp around the lid rim, which is a different arrangement, so check the pump before you order.

What it does

The locking ring is what pulls the lid down onto the trap and holds the o-ring against its seat. A ring that has gone brittle, cracked at a ramp, or lost the thread on a cam cannot hold that clamping force, and the pump starts sucking air at the lid instead of holding prime. That shows up as a trap that will not fill, air in the lid, or a pump that loses prime overnight.

The ring is supplied on its own. If the pump has been leaking air at the lid for a while, it is worth checking the lid o-ring and its seat at the same time.

Specifications
Brand Val-Pak
Manufacturer part number V38-137
Pentair part number 39105000
Type Pool pump part
Component Lid locking ring
Style Cam and ramp
Fits American Products (Pentair) Ultra-Flow pool pump traps manufactured after 1994
Note Pre 1994 traps use a metal band clamp style
Shipping weight 0.85 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Val-pak

Val-Pak V38-131 replacement seal plate for American Products Ultra-Flow pumps Val-Pak Ultra Flow Pump Replacement Seal Plate, V38-131$14899 Val-Pak V38-162 Ultra-Flow pump strainer trap lid Val-Pak Ultra-Flow Lid (After 11/94), V38-162$6499 Val-Pak V22-110 U-3 skimmer basket B-9 with molded finger grip and weighted bottom Val-Pak U-3 Skimmer Basket (B-9), V22-110$3999 Val-Pak V38-130 black 2 inch Ultra-Flow volute housing, part 357140 Val-Pak Ultra-Flow Volute Housing 2", Black, V38-130$17399 Val-Pak V38-134 wear ring for Ultra Flow pool pumps Val-Pak Wear Ring V38-134$2899 Val-Pak V60-110 brass clamp sleeve nut for Hayward filter band clamps Val-Pak Brass Clamp Sleeve Nut, V60-110$2499 Val-Pak V38-132 diffuser for Pentair American Products Ultra-Flow pumps Val-Pak Ultra-Flow Pump Diffuser, 0.5 HP to 1.5 HP, V38-132$4599 Val-Pak V38-124 1 HP impeller for Pentair American Products Ultra Flo pumps Val-Pak Impeller 1 HP V38-124$11599 Val-Pak V20-339 spa return check valve, 1.5 in. MIP fitting Val-Pak Spa Return Check Valve 1.5" MIP, V20-339$3699 Val-Pak V38-127 2 HP impeller for Pentair American Products Ultra-Flo pumps Val-Pak Impeller 2 HP V38-127 for Pentair American Products Ultra-Flo Pumps$11499
Val-Pak V20-322 compression ring for Purex SM and SMBW backwash valves Val-Pak Compression Ring for Purex SM and SMBW Backwash Valves, V20-322$11099 Val-Pak V38-160 clear 7-3/4 inch strainer pot lid for pre 1994 Ultra Flo pump Val-Pak Clear Lid 7-3/4" (Prior to '94), V38-160$7599 CMP V38-141 universal DE filter grid guide template CMP DE Filter Grid Guide Template, Universal, V38-141$2299 Val-Pak V38-220 bottom manifold for Pentair American Products Quantum cartridge filters Val-Pak Quantum Filter Bottom Manifold, V38-220$15899 Val-Pak V38-150 Commander filter lid with air relief Val-Pak Commander Lid with Air Relief, V38-150$16899 Val-Pak V38-221 Quantum bottom manifold gasket Val-Pak Quantum Bottom Manifold Gasket, V38-221$12699 Val-Pak V34-124 skimmer diverter in anthracite Val-Pak Skimmer Diverter, Anthracite, V34-124$7099 Val-Pak V38-133 diffuser for 2 HP to 3 HP Ultra-Flow pumps Val-Pak Diffuser, 2 HP to 3 HP, for Ultra-Flow Pumps, V38-133$5299 Val-Pak V50-600 large leaf canister basket for Hayward leaf canister Val-Pak V50-600 Large Leaf Canister Basket for Hayward Leaf Canister$5399 Val-Pak V38-185 heavy duty pump strainer basket for Ultra-Flow and Americana pumps Val-Pak Ultra-Flow Heavy Duty Basket, V38-185$4199

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this fit?
American Products, now Pentair, Ultra-Flow pool pump traps manufactured after 1994. Traps made before that date use a metal band clamp instead and this ring will not suit them.
Is this the same as Pentair 39105000?
Yes. Pentair lists the part as 39105000 and it is manufactured by Val-Pak, sold here under the Val-Pak number V38-137.
How do I tell which style I have?
Look at how the lid is held down. A cam and ramp ring twists onto the trap; the older style is a metal band clamped around the rim.
Does the lid or the o-ring come with it?
No. This is the locking ring on its own. The trap lid and its o-ring are separate parts.
