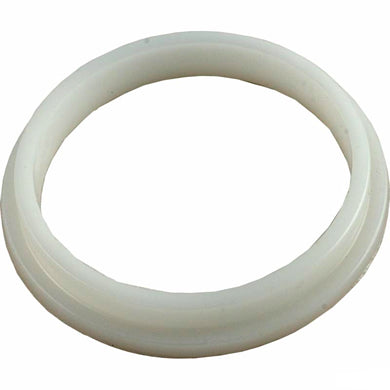

Val-Pak Wear Ring V38-134 In stock$2899
Val-Pak Wear Ring V38-134
30 day returns · Easy, with prepaid labels provided
Quick overview
- Val-Pak part V38-134 The replacement wear ring for the Ultra Flow pump.
- Restores impeller clearance The wear ring sets the tight gap the impeller needs to move water efficiently.
- Fits Ultra Flow pumps Made for the Pentair American Products Ultra Flow pool pump.
- Flow you have quietly lost A worn ring lets water slip past the impeller, and the pump moves less than it used to.
- Do it during a rebuild The pump is already apart when the seal or impeller is changed, so fit the ring then.
- Val-Pak replacement An aftermarket service part built to replace the original ring.
Need a hand?
Frequently bought together
Val-Pak Wear Ring V38-134
Similar products
Other products people compare with this one.
Aqua-Flo Wear Ring for Flo-Master XP2, 92830070$1599
Val-pak Heavy Duty Whisperflo and Intelliflo Pump Basket | V20-200$3099
CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1799
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R$1699
Jandy Drain Plug with O-Ring (Set of 2), R0446000$2099
Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999
Pentair Challenger Front Housing O-Ring, 355329Z$2299
Pentair Lid O-Ring for IntelliFlo3 Pool Pump, 356189Z$2599
Hayward OEM O-Ring, 2-1/2", SX220Z2$2299
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030$1799
Jandy O-Ring, Backplate, R0446300$1899
Pentair SuperFlo Seal Bracket O-Ring, 355619Z$1699
Hayward Housing O-Ring SPX3200T$2899
Polaris PB4-60 Backplate O-Ring, New Style, R0536600$2599
Jandy Blue Pressure O-Ring, R0479000$2499
Pentair Square Ring, Seal Plate, Max-E-Pro / IntelliPro, 357099Z$1999
Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3899
Hayward 0.75 HP to 1.5 HP Impeller Ring, 2-3/8 in. OD, SPX3005R$1699
Hayward TriStar Strainer Cover O-Ring, SPX3200S$2499
Jandy Backplate O-Ring for FHPM and VS-FHP Series Pumps, R0480300$2399
Product details
Val-Pak V38-134 is the replacement wear ring for the Pentair American Products Ultra Flow pool pump.
What a wear ring does
The wear ring is the close fitting surface the impeller turns inside. That narrow clearance is what keeps pressurized water on the discharge side instead of slipping back around the impeller to the suction side. It is designed to be the part that wears, so the housing does not.
When to change it
A worn ring shows up as lost flow rather than as a noise or a leak. The pump sounds fine, the motor runs, but the returns are weaker and the cleaner works less well than it did. Once the pump is open, the ring is easy to inspect: grooving, scoring or a visibly widened gap around the impeller means it is done.
Because it is only reachable with the pump apart, fit a new ring at the same time as a shaft seal or impeller job rather than stripping the pump twice.
| Brand | Val-Pak |
|---|---|
| Manufacturer part number | V38-134 |
| UPC | 788379661694 |
| Type | Pump wear ring |
| Fits | Pentair American Products Ultra Flow pool pumps |
| Shipping weight | 0.05 lb |
| Ships | Parcel |
