Hayward HCXP6001A HCP pump lid with o-ringHayward HCP Pump Lid and O-Ring, HCXP6001A$36099
Hayward HCXP6001A HCP pump lid with o-ring
Shop all Hayward

Hayward HCP Pump Lid and O-Ring, HCXP6001A

Ask a questionMPN HCXP6001A
$36099
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward part Factory part number HCXP6001A, made for the HCP pump.
  • O-ring included The lid arrives with its sealing o-ring, so there is no second part to chase.
  • Restores prime A cracked or crazed lid pulls air past the seal and the pump loses prime.
  • Clear lid Lets you see the strainer basket loading up before flow drops off.
  • Complete assembly Replaces the lid and seal together rather than reusing a flattened o-ring.
  • Service item Lids and their o-rings age from sun, heat and over tightening, and are normal replacements.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward HCP Pump Lid and O-Ring, HCXP6001A, SKU HAY-101-7500. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward HCP Pump Lid and O-Ring, HCXP6001A
Hayward

HCP Pump Lid and O-Ring, HCXP6001A

$36099
Hayward Flush Union Connectors, SP1500UNPAK2C
Hayward

Flush Union Connectors, SP1500UNPAK2C

$2699
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1699
Hayward Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M
Hayward

Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M

$55799
Hayward OEM O-Ring, 2-1/2", SX220Z2
Hayward

OEM O-Ring, 2-1/2", SX220Z2

$2299
Hayward Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP
Hayward

Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP

$10599
Hayward Union Connector Kit, SPX3200UNKIT
Hayward

Union Connector Kit, SPX3200UNKIT

$5299
Subtotal

Similar products

Other products people compare with this one.

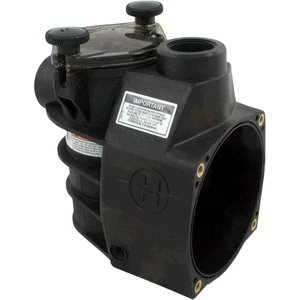

Hayward Pump Housing and Strainer 1.5" | SPX3000AA Hayward Pump Housing and Strainer 1.5" | SPX3000AA$35999 Hayward SPX3200A TriStar pump strainer housing, 2 in. x 2 in. threaded, with drain plugs Hayward TriStar Pump Strainer Housing 2" x 2" with Drain Plugs, Threaded, SPX3200A$35199 Hayward SPX2615CKIT 2 HP Super Pump drive train upgrade kit contents Hayward 2 HP Super Pump Drive Train Upgrade Kit, SPX2615CKIT$22099 Hayward SPX1620AA Super Pump 2 in. x 2 in. strainer housing Hayward 2" x 2" Super Pump Strainer Housing, SPX1620AA$34699 Hayward SPX3120AAZ Super II pump housing and strainer, threaded 2 inch by 2 inch Hayward Super II Pump Housing, Threaded, 2" x 2", SPX3120AAZ$39899 Hayward SPX2800AAC Max-Flo pump housing conversion kit Hayward Max-Flo Pump Housing Conversion Kit, SPX2800AAC$37799 Pentair 357157 black volute replacement housing for WhisperFlo WFE pump and pot Pentair Black Volute Replacement Housing for WhisperFlo WFE Pump and Pot, 357157$23199 Hayward SPX2600CKIT 1/2 HP Super Pump drive train upgrade kit Hayward 1/2 HP Super Pump Drive Train Upgrade Kit, SPX2600CKIT$20299 Hayward HOUSING 2" SUPER SPA PUMP | SPX3520AA Hayward HOUSING 2" SUPER SPA PUMP | SPX3520AA$26799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799
Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$30499 Pentair 350089Z SuperFlo pump housing volute Pentair Superflo Pump Housing, Volute, 350089Z$26599 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ$29699 Jandy R0448700 pump body housing for PlusHP PHPF and PHPM pool pumps Jandy Pump Body PHPF/PHPM, R0448700$35699 Pentair 356175Z strainer pot kit in almond for the 3 HP IntelliFlo3 pool pump Pentair Strainer Pot Kit for 3 HP IntelliFlo3 Pool Pump, Almond, 356175Z$25899 Swimables SW-21-149 WhisperFlo style pump wet end with high temp unions, 0.5 to 2 HP Swimables Generic WhisperFlo Style Pump Wet End, 0.5 to 2 HP, with High Temp Unions, SW-21-149$32699 Pentair 356002Z Pinnacle high flow pump housing in almond Pentair Pinnacle Pump Housing, Almond, 356002Z$29999 Pentair 357263 6 in. flange with gaskets and stainless steel hardware for EQ Series commercial pumps Pentair Flange 6" with Gaskets and SS Hardware, 357263$25099

Product details

The Hayward HCXP6001A is the genuine strainer lid for the HCP pump, supplied complete with its o-ring.

Why the lid matters

The strainer lid sits on the suction side of the pump, so anything less than a clean seal lets the pump draw air instead of water. That shows up as a pump that will not hold prime, a strainer pot that keeps filling with air, or flow that surges and drops. The usual culprits are a lid that has crazed or cracked in the sun and an o-ring that has gone flat or picked up a nick.

Fitting it

Because the lid and o-ring are supplied together, you are not reusing a tired seal under a new lid. Wipe the sealing face clean, put a thin film of silicone lubricant on the o-ring so it seats evenly, and hand tighten the lid. Over tightening is the fastest way to crack the next one.

Specifications
Brand Hayward
Manufacturer part number HCXP6001A
UPC 610377136150
Type Pump strainer lid with o-ring
Included Lid and o-ring
Fits Hayward HCP pump
Shipping weight 2.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Does the o-ring come with it?
Yes. HCXP6001A is supplied as the lid together with its o-ring.
Is this a genuine Hayward part?
Yes. It is the Hayward OEM lid assembly, part number HCXP6001A.
My pump keeps losing prime. Could this be why?
It is a common cause. If the lid is cracked or crazed, or the o-ring is flattened or nicked, the pump draws air past the seal instead of pulling water.
Should I lubricate the o-ring?
A thin film of silicone lubricant on the o-ring helps it seat and makes the lid easier to remove next time. Hand tighten the lid; over tightening is what cracks them.
