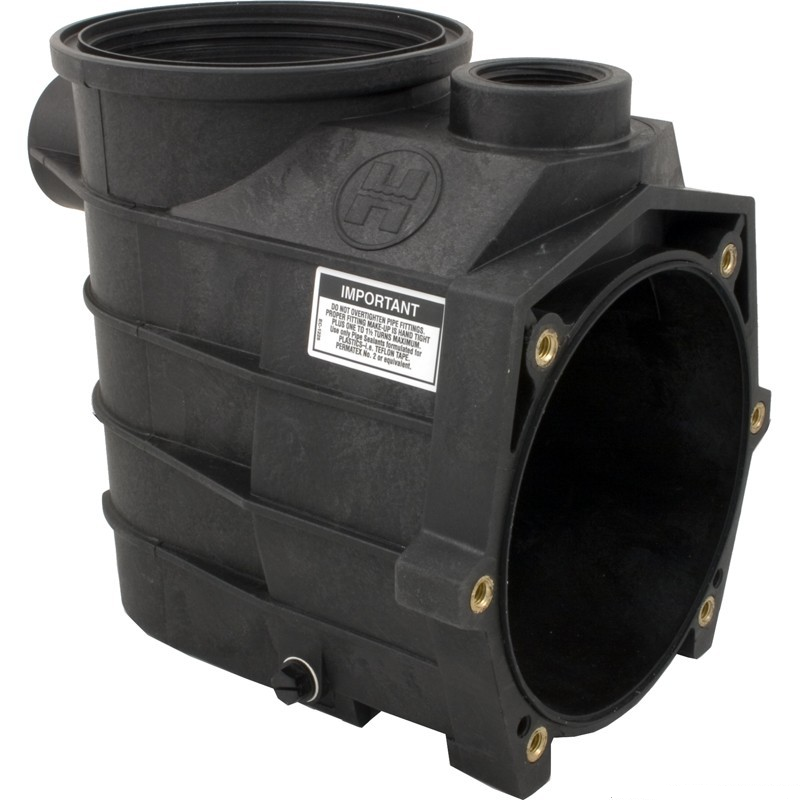

Hayward SPX3120AAZ Super II pump housing and strainer, threaded 2 inch by 2 inchHayward Super II Pump Housing, Threaded, 2" x 2", SPX3120AAZ In stock$39899
Hayward SPX3120AAZ Super II pump housing and strainer, threaded 2 inch by 2 inch
Shop all Hayward

Hayward Super II Pump Housing, Threaded, 2" x 2", SPX3120AAZ

Ask a questionMPN SPX3120AAZ
$39899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Housing and strainer in one SPX3120AAZ is the pump housing with the strainer pot, the body the basket drops into.
  • Fits Super II SP3000 and SP3000X The housing for the Hayward Super II pump series.
  • Threaded 2 in by 2 in Threaded suction and discharge connections, both 2 inch.
  • New style Hayward lists this as the new style housing, so match it against the pump you are working on.
  • Genuine Hayward Factory part SPX3120AAZ, also written SP-3120-AAZ.
  • Black plastic Molded plastic in black, the same material and color as the original.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Super II Pump Housing, Threaded, 2" x 2", SPX3120AAZ, SKU HAY-101-1409. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Super II Pump Housing, Threaded, 2" x 2", SPX3120AAZ
Hayward

Super II Pump Housing, Threaded, 2" x 2", SPX3120AAZ

$39899
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1799
Hayward Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M
Hayward

Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M

$55799
Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M
Hayward

1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M

$40399
Hayward Slinger for Motor Shaft, SPX0125F
Hayward

Slinger for Motor Shaft, SPX0125F

$1399
Hayward 0.75 HP to 1.5 HP Impeller Ring, 2-3/8 in. OD, SPX3005R
Hayward

0.75 HP to 1.5 HP Impeller Ring, 2-3/8 in. OD, SPX3005R

$1699
Hayward Super II Impeller/Diffuser Kit, 2-1/2 Max Rated, 2 HP Full Rate, SPX3020CKIT
Hayward

Super II Impeller/Diffuser Kit, 2-1/2 Max Rated, 2 HP Full Rate, SPX3020CKIT

$7599
Subtotal

Similar products

Other products people compare with this one.

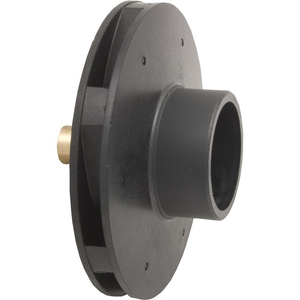

Hayward SPX3000F motor mounting plate for Super II pump Hayward Motor Mounting Plate for Super II Pump, SPX3000F$7199 Hayward SPX3020E plastic seal plate for Super II pumps Hayward Seal Plate for Super II Pump, SPX3020E$6899 Hayward SPX2615C impeller for Super Pump and Super II pumps Hayward Super Pump and Super II Impeller, 2 HP Max Rate / 1-1/2 HP Full Rate, SPX2615C$6299 Hayward SPX3000TRA seal assembly kit for the Super II pump Hayward Seal Assembly Kit for Super II Pump, SPX3000TRA$6199 Hayward SPX3000BN Super II pump diffuser Hayward Super II Pump Diffuser, .5 HP to 1.5 HP Full Rate, .75 HP to 2 HP Up Rated, SPX3000BN$5299 Hayward SPXHKIT2 Super II pump quick fix kit Hayward Super II Pump Quick Fix Kit, SPXHKIT2$4499 Hayward SPX1600R Super Pump and Super II diffuser gasket o-ring Hayward Super Pump/Super II Diffuser Gasket, SPX1600R$1099 Hayward SPX3000D clear hand knob strainer cover for Super II pumps Hayward Super II Hand Knob Strainer Cover, SPX3000D$8499 Hayward SPX3100D clear thread in strainer lid for Super II pumps Hayward Clear Lexan Strainer Lid, Thread In Style (Super II), SPX3100D$7699 Hayward SUPER II IMPELLER 3 HP FR / 3HP MR | SPX3026C Hayward SUPER II IMPELLER 3 HP FR / 3HP MR | SPX3026C$7399

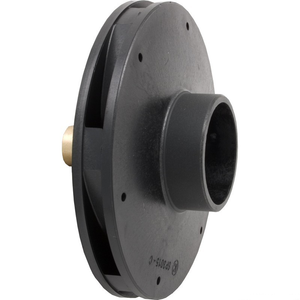

Hayward SPX3016C Super II replacement pump impeller Hayward 1.5 HP FR Super II Impeller, After 1989, SPX3016C$6499 Hayward SPX3021B Super II pump diffuser for 1-1/2 HP to 3 HP full rate pumps Hayward Super II Diffuser, 1-1/2 HP to 3 HP Full Rate, SPX3021B$5499 Hayward SPX3007C Super II pump impeller, 3/4 HP full rated Hayward Super II Impeller, 3/4 HP Full Rated, After 1987, SPX3007C$5399 Hayward SPX3000M Super II pump strainer basket Hayward OEM Super II Strainer Basket, SPX3000M$3099 Hayward SPX3000T housing gasket for 3000 series pumps Hayward Housing Gasket, 3000 Series, SPX3000T$2299 Hayward SPX1600Z4 housing cap screw, 3/8-16 x 2 Hayward SPX1600Z4 Housing Cap Screw$1199 Hayward SPX3015C impeller for Super II pumps, 2 HP max rated Hayward Impeller, 2 HP Max Rated, 1-1/2 HP Full Rate, SPX3015C$6299 Hayward SPX1600Z2 OEM pump shaft seal assembly Hayward Seal Assembly, OEM, SPX1600Z2$3399 Hayward SPX1600PN hand knob kit with swivel nut for Super Pump strainer covers Hayward Hand Knob Kit, SPX1600PN$2699 Hayward SPX3000S o-ring for the trap cover and strainer pot Hayward O-Ring for Trap Cover Strainer Pot, SPX3000S$2499

Product details

The Hayward SPX3120AAZ is the pump housing and strainer for the Super II SP3000 and SP3000X pump series. It is the genuine Hayward part, also written SP-3120-AAZ.

What it is

This is the front half of the pump: the body that carries the suction and discharge connections and holds the strainer basket. It is the threaded version, 2 inch by 2 inch, molded in black plastic. Hayward lists it as the new style housing, so it is worth comparing it to the pump on the pad before ordering.

When it needs replacing

Housings crack at the threads, distort at the sealing face, or split after a freeze. Once the body will not hold prime or will not seal against the strainer cover, no amount of new lids and o-rings will fix it, and the housing itself has to come off.

What is not included

The strainer basket, the strainer cover and its hand knob are separate Hayward parts, so plan on inspecting those while the housing is off.

Specifications
Brand Hayward
Manufacturer part number SPX3120AAZ
Also listed as SP-3120-AAZ
UPC 610377620161
Type Pump housing and strainer
Style New style
Connections Threaded, 2 in x 2 in
Material Plastic
Color Black
Fits Hayward Super II SP3000 and SP3000X pump series
Shipping weight 7.45 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this housing fit?
The Hayward Super II SP3000 and SP3000X pump series.
Does the strainer basket come with it?
No. This is the housing and strainer body. The basket and the strainer cover are separate Hayward parts.
What do the 2 inch by 2 inch and threaded refer to?
The suction and discharge connections. This housing is the threaded version with 2 inch ports on both sides.
Is SP-3120-AAZ the same part?
Yes. SPX3120AAZ and SP-3120-AAZ are both used for this housing.
