Pentair 400020Z Whisperflo XF 2HP pool pump impellerPentair Whisperflo XF 2HP Impeller, 400020Z$12199

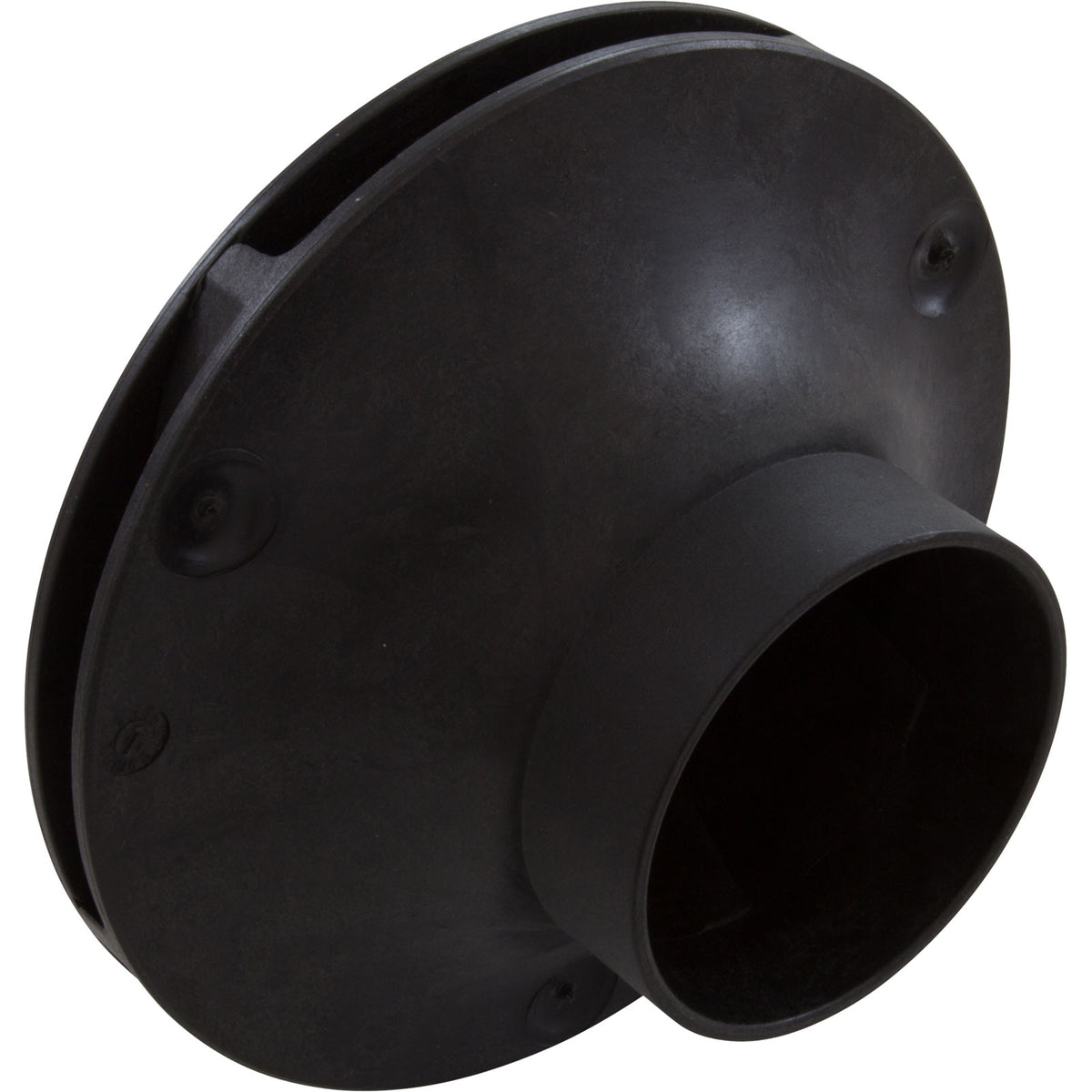

Pentair 400020Z Whisperflo XF 2HP pool pump impeller
Shop all Pentair

Pentair Whisperflo XF 2HP Impeller, 400020Z

Ask a questionMPN 400020Z
$12199
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pentair part 400020Z The impeller Pentair lists for the 2 HP Whisperflo XF.
  • Horsepower specific Impellers are matched to the motor rating, so a 2 HP impeller belongs on a 2 HP pump.
  • Restores lost flow A worn or blocked impeller shows up as poor flow with a pump that otherwise runs normally.
  • For the Whisperflo XF The XF version of the Whisperflo, which is not interchangeable with every Whisperflo part.
  • Wear item Grit that gets past the basket wears the vanes over time.
  • Ordered by number Use 400020Z rather than matching by eye, since impellers of different ratings look alike.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Whisperflo XF 2HP Impeller, 400020Z, SKU PUR-101-0124. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Whisperflo XF 2HP Impeller, 400020Z
Pentair

Whisperflo XF 2HP Impeller, 400020Z

$12199
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149
Pentair

WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

$28799
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z
Pentair

Screw 1/4-20 x 1 Left Hand Thread, 071652Z

$599
Pentair Rubber Impeller Washer Gasket, 075713
Pentair

Rubber Impeller Washer Gasket, 075713

$599
Pentair WhisperFlo XF Seal Plate O-Ring, 351446
Pentair

WhisperFlo XF Seal Plate O-Ring, 351446

$1299
Subtotal

Similar products

Other products people compare with this one.

Pentair 073131Z 3 hp impeller for WhisperFlo WFE-12 and IntelliFlo pumps Pentair Impeller for IntelliFlo and WhisperFlo 3 HP WFE-12, 073131Z$9099 Pentair 073130Z impeller for 2 and 2.5 HP WhisperFlo pool pumps Pentair WhisperFlo Impeller, 2 and 2.5 HP (WF-8 & 30, WFDS-8 & 30, WFE-30, WFK-8), 073130Z$9499 Pentair 073128Z 1000 Series impeller for WhisperFlo WFE-4, WF-4, WF-26 and FE-26 pumps Pentair 1 & 1.5 HP WhisperFlo Impeller, 073128Z$9099 Pentair 073129Z 1000 Series WhisperFlo pump impeller Pentair 1.5 HP WhisperFlo Impeller, 073129Z$9099 Pentair 400023Z WhisperFlo XF 5 HP impeller assembly Pentair WhisperFlo XF 5 HP Impeller, 400023Z$13399 Pentair 073127Z WhisperFlo impeller for .75 and 1 HP pumps Pentair WhisperFlo Impeller .75 and 1 HP (WF-3 & 24, WFE-24), 073127Z$9499 Pentair 073126Z 1/2 HP impeller for the WhisperFlo WFE-2 pump Pentair 1/2 HP Impeller for WhisperFlo WFE-2, 073126Z$9099 Pentair 072927Z WhisperFlo diffuser assembly for WFE-3 to WFE-8 pumps Pentair WhisperFlo Diffuser, .5 HP to 2 HP, WFE-3-8, 072927Z$7799 Pentair 400011Z diffuser for the 5 HP WhisperFlo XF pump Pentair WhisperFlo XF 5 HP Diffuser, 400011Z$11499 Pentair 410020 Whisperflo XF union kit without tap Pentair Whisperflo XF Union Kit, 410020$13699
Pentair 400002Z XF Series seal plate for the WhisperFlo XF pump Pentair XF Series Seal Plate for WhisperFlo XF Pump, 400002Z$17399 Pentair 400015Z 3 HP impeller assembly for IntelliFloXF pumps Pentair 3 HP IntelliFloXF VSF, VS Impeller Assembly, 400015Z$11999 Pentair 400010Z Whisperflo XF 3HP pump diffuser Pentair Whisperflo XF 3HP Diffuser, 400010Z$8899 Pentair 074564Z WhisperFlo almond seal plate Pentair WhisperFlo Almond Seal Plate, 074564Z$11099 Pentair 070711 stainless steel clamp band assembly for WhisperFlo pump Pentair WhisperFlo Clamp Band Assembly, Stainless, 070711$8499 Pentair 400006 WhisperFlo XF lid and locking ring assembly Pentair WhisperFlo XF Lid and Locking Ring, 400006$5799 Pentair 070795 clear Lexan pump lid for WhisperFlo and Aquatron metal clamp style pumps Pentair Lexan Cover for WhisperFlo and Aquatron, Older Metal Clamp Style, 070795$5199 Pentair 357199Z almond Cam and Ramp strainer lid clamp for WhisperFlo and IntelliFlo pumps Pentair Cam and Ramp Strainer Lid Clamp, Almond, for WhisperFlo and IntelliFlo Pumps, 357199Z$5099 Pentair 072928Z black 3 HP diffuser assembly for WhisperFlo and IntelliFlo pumps Pentair Black WhisperFlo/IntelliFlo Diffuser Assembly 3HP, 072928Z$4199 Pentair 400004Z WhisperFlo XF motor base Pentair WhisperFlo XF Motor Base, 400004Z$4199

Product details

The Pentair 400020Z is the replacement impeller for the 2 HP Whisperflo XF pool pump.

What the impeller does

The impeller is the spinning part that actually moves the water. It is matched to the motor rating, which is why a 2 HP impeller goes on a 2 HP pump and not on any other. Sand and grit that slips past the strainer basket wears the vanes down over the years, and debris can pack the passages solid.

When to change it

If the pump primes, runs and sounds normal but flow is down, and you have already cleared the basket and ruled out a suction side leak, the impeller is the next thing to inspect. Order it by part number, since impellers for different ratings are hard to tell apart by eye.

Specifications
Brand Pentair
Manufacturer part number 400020Z
UPC 788379867195
Type Impeller
Rating 2 HP
Fits Pentair Whisperflo XF pump
Shipping weight 0.45 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which pump is this for?
The Pentair Whisperflo XF, in the 2 HP rating.
Can I use it on a different horsepower Whisperflo XF?
No. The impeller is matched to the motor rating. Fitting the wrong one either starves the pump or overloads the motor.
How do I know the impeller is the problem?
Weak flow with a pump that primes and runs, after you have cleared the basket and checked for suction leaks, usually points at the impeller being worn or packed with debris.
Is it a genuine Pentair part?
Yes. It is the Pentair part, number 400020Z.
